Photon... battle of the Chibi Photonic hunters!
Introduction to the Photon Series...
Photon is a 'Tron' Light cycle type game... I used to make these games in Basic on the CPC... I thought it would be fun to try to do the same in assembly...
Originally the game was written for Z80 systems, but I have ported it to the 6502 and 68000

Lesson Photon1 - Introduction and Data Structures
Photon is a tron style game written for many different systems
Lets start by having a quick look at the game, and the structure of the game RAM, and the settings which define objects and movements.

See Photon folder


Photon
Photon does not use bitmap graphic, all the graphics are drawn at the pixel level... to port to a new system you just need a PSET function to set a pixel and a POINT function to read a pixel back...

All other graphics are drawn using a LINE function, which uses the PSET function - PHOTON is essentially a simple game, a tutorial on LINE and VECTOR image drawing (With Scaling) AND a tutorial in Pixel plotting on each system.

photon uses VECTREX packet format for it's title graphics (Yes it uses the same format as the old home console!), and a slightly tweaked Cpacket format (2 bytes per line rather than 3) I designed to save space for it's font and other bits... Akusprite Editor now has crude export functions for these formats!

In this series, we'll look at the basic codebase, and the platform specific modifications for each platform.

Photon is available on pretty much all the systems covered in my tutorials, on the Z80,6502 and 68000!




Photon is a one player (Vs CPU) Light Cycle game - you have to stay alive longer than your opponent to win a level.

Death occurs when you hit a wall or light trail.

Each win progresses the level (Shown bottom right), and increases CPU difficulty (Shown top right), and adds objects to the screen.

The player has a 'boost' power (count in bottom left) to accelerate... you have four lives per game (shown top left)

Photon's CPU AI is hardly amazing - the game is really a 'tech demo' for pixel plotting and multiplatform vector drawing.
The drawing engine has it's own vector font, and is capable of scaling all vector objects (only powers of 2... eg 1/4x 1/2x 1x 2x 4x)

This allows the same title screen data to be drawn smaller on the gamegear... and fonts to be shown at different sizes
Photon supports many different systems - porting it to a new system really just consists of substituting the PSET and POINT routines

Ram Definitions
The Player and CPU have various parameters for their position

Direction is the current direction of movement - the game is controlled with Left and Right to turn - this is the current direction.
X and Y are the current position in pixels (2 byte word)

Xacc and Yacc are the current 'acceleration' - these are added/subtracted from the position each tick.

CpuTurn is used by the AI to decide which direction the CPU will turn next time.
The Game Engine needs some settings for the Level logic.

KeyTimeout is for 'ignoring' player keys after a press
BestLevel is the highest level the player has got to - effectively a highscore.
Level is the current level (duh!)
CpuAI is the CPU intelligence... lower means tighter corner turning making the CPU harder to trap.
Lives is player lives
Tick is used to handle player boost - normal speed is an update every other tick... boost is an update every tick
Boost is used to mark player boost as enabled (Cpu doesn't use boost)
BoostPower is the remaining 'Boost' - 99 units per level
ShownBoostPower is the visible boost - used when redrawing the boost in the bottom left corner
RandomSeed is the random seed for random number generation
The Line and vector routines need some bytes of data

XposDir and YposDir define if the movement are Up/Left or Down/Right

Xpos24 and Ypos24 are the current pixel position (24 bit)

Scale is the scaling factor... 1 2 4 = 1x 2x 4x ... -1 -2 -4 = 1/2 1/4 1/8
LineColor is the line color (obviously!)

Note: All these addresses are relative to the base address 'UserRam'... this is so the RAM data can be located where ever free ram exists on the target platform.

So the game can work on ROM machines, this is the only writable data, The is no self modifying code or altered data within the other areas of code.


Constants and Data definitions
Directions defines the 4 directions in the form of 2 words... these can be added to the position to affect a move
Next we have some Random Number Lookup tables
We need to reset the player and Cpu location and settings each level... we have the defaults here.

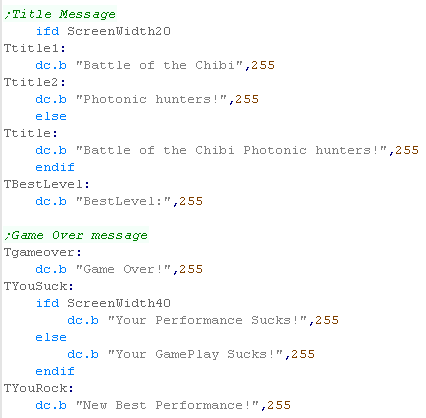

Next we have the text messages used in the game.
Finally we have the Obstruction objects... These are put in random places in the level to get in the way!

These are in 'Cpacket format' (Compressed Vectrex Packet)... a format I made based on the 'Packet' format used by the Vectrex console.

It uses a 7 bit X movement, a 7 bit Y movement, and a 2 bit Command
There are 2 possible command -
1.Move drawing cursor to position (Byte 2 bit 7 = 0)
2. Draw from drawing cursor to position (Byte 2 bit 7 = 1)

A Byte 2 bit 7 = 1 is the end of the list.

The Multiplatform code handles most of the game logic and vector drawing routines - As they are converted from the Z80 version we're not going to cover them here - all the function and variable names are the same as is the structure - so please watch Z80 lessons Photon 2-5 if you want to know more about how the multiplaform code works.


Lesson Photon2 - Atari ST- ASM PSET and POINT for Pixel Plotting
Lets look at the Atari ST Platform specific code, We'll need Joystick routines (we'll use the ones from Yquest) and more importantly, we'll need a routine to PSET a pixel to a color, and read a pixel with POINT...

We'll write code to directly read and write a pixel in screen VRAM

See Photon folder

Much of the code of Photon is the same as the code in Yquest and the Simple series... we're not going to cover things like setting up the screen or reading the Joypad...

We've covered it so many times before it's getting boring!

Data Definitions & Starting the game

Each system needs some platform specific settings.
The first is an address of RAM for system vars - the game needs less than 256 bytes - this is the entirety of the RAM needed - the rest of the game can run from ROM

We define some screen size vars - these set the scale for objects and font., and the boundaries of the screen for drawing the level.

We also define some 'colors' ... the game uses up to 5 colors (Background 0 and 4 more)... we can use all of these on the Atari ST.
When the game starts we clear the game ram, we use 'CLDIR0' to do this, it clears D1 bytes from address A3

We then show the Main menu.

Main Game Loop

At the start of the loop, we update the 'Tick'

The Tick is 1 or 0 - this is used by the multi-platform code for boost (during which player moves at 2x speed)

If Boost is ON we lower the delay - we need to speed the game up because redrawing the 'Boost counter' is too slow.
During the pause loop we check the keypreses... If a key is not held down we release the keytimeout .

The timeout means if we hold left we don't keep rotating around... We have to press left multiple times.

We store any keypresses in D2 - and wait until D1 reaches Zero.
If the Keytimeout is not cleared we will ignore Left / Right keypresses.

First we turn off Boost (it will be turned back on if FIRE is held)

When we process Left or Right we INC/DEC the 'Player Direction' then run the SetPlayerDirection routine which handles the rest of setting the movement for the player.

If Fire is pressed then we check if any 'Boost power' is left..
If there is, then we turn boost power on.

Once the keypresses are handled, we update the player with 'Handle Player'

Then we update the CPU with 'Handle CPU'

That's it... We jump back to the start of the loop for the next tick.

PSET - Plot Pixel / POINT - Read pixel color

The PSET command will set a pixel of the screen...
The 16 bit X co-ordinate is defined by register D1
The 8 Bit Y co ordinate is defined by D4
D2 is the new color for the pixel (0-3)

Each byte of the screen contains 8 different pixels, so we need a mask to alter the one pixel we want to change.

GetScreenPos will calculate the address of the screen byte we want to change (in A3)

We also load a mask from PixelLookup, The mask to keep the screen pixels we don't want to change will be in D1... the mask for the pixel we want to change is D3

The Atari ST screen format is a little odd, it's spilt into blocks of 8 bytes / 4 Words.

Each Word is a bitplane for 16 pixels, Bitplane 0-3, To change the color of a pixel we need to change 4 bytes, each of which is 2 bytes apart.

We test each bit of the color we want to set, and use our masks accordingly to set the bitplanes of the screen bytes.

We've now set the color of the pixel!
POINT works in reverse to PSET... returning the color in D0 for pixel D1,D4

Once again, we get the pixel mask, and read in the screen bytes, ANDing it with D1 to get one pixel.

We use this to process the bitplanes, and convert the bitplanes back to a color number in D0
The POINT routine here is excessive - as PHOTON doesn't care what color a pixel is, just if it's black or not.

ALSO, it would be quicker to calculate the color number via bitshifts, rather than filling a byte and looking it up... but POINT is hardly used in this game, so speed isn't a problem, and the example here is easily ported to other systems, or converted for other screen modes


Lesson Photon3 - Amiga - ASM PSET and POINT for Pixel Plotting
Lets look at the Amiga Platform specific code, We'll need Joystick routines (we'll use the ones from Yquest) and more importantly, we'll need a routine to PSET a pixel to a color, and read a pixel with POINT...

We'll write code to directly read and write a pixel in screen VRAM

See Photon folder

Much of the code of Photon is the same as the code in Yquest and the Simple series... we're not going to cover things like setting up the screen or reading the Joypad...

We've covered it so many times before it's getting boring!

Data Definitions & Starting the game

Each system needs some platform specific settings.
The first is an address of RAM for system vars - the game needs less than 256 bytes - this is the entirety of the RAM needed - the rest of the game can run from ROM

We define some screen size vars - these set the scale for objects and font., and the boundaries of the screen for drawing the level.

We also define some 'colors' ... the game uses up to 5 colors (Background 0 and 4 more)... we can use all of these on the Atari ST.
When the game starts we clear the game ram, we use 'CLDIR0' to do this, it clears D1 bytes from address A3

We then show the Main menu.

Main Game Loop

At the start of the loop, we update the 'Tick'

The Tick is 1 or 0 - this is used by the multi-platform code for boost (during which player moves at 2x speed)

If Boost is ON we lower the delay - we need to speed the game up because redrawing the 'Boost counter' is too slow.
During the pause loop we check the keypreses... If a key is not held down we release the keytimeout .

The timeout means if we hold left we don't keep rotating around... We have to press left multiple times.

We store any keypresses in D2 - and wait until D1 reaches Zero.
If the Keytimeout is not cleared we will ignore Left / Right keypresses.

First we turn off Boost (it will be turned back on if FIRE is held)

When we process Left or Right we INC/DEC the 'Player Direction' then run the SetPlayerDirection routine which handles the rest of setting the movement for the player.

If Fire is pressed then we check if any 'Boost power' is left..
If there is, then we turn boost power on.

Once the keypresses are handled, we update the player with 'Handle Player'

Then we update the CPU with 'Handle CPU'

That's it... We jump back to the start of the loop for the next tick.

PSET - Plot Pixel / POINT - Read pixel color

The PSET command will set a pixel of the screen...
The 16 bit X co-ordinate is defined by register D1
The 8 Bit Y co ordinate is defined by D4
D2 is the new color for the pixel (0-3)

Each byte of the screen contains 8 different pixels, so we need a mask to alter the one pixel we want to change.

GetScreenPos will calculate the address of the screen byte we want to change (in A3)

We also load a mask from PixelLookup, The mask to keep the screen pixels we don't want to change will be in D1... the mask for the pixel we want to change is D3

The Amiga screen is split into 4 bitplanes, All the screen pixels for a bitplane are held in a block.
The screen is 40 bytes wide and 200 lines tall, so the screen memory is made up of 40*200 bytes of bitplane 0, then 40*200 bytes of bitplane 1, 40*200 bytes of bitplane 2 and finally 40*200 bytes of bitplane 3

We test each bit of the color we want to set, and use our masks accordingly to set the bitplanes of the screen bytes.

We've now set the color of the pixel!
POINT works in reverse to PSET... returning the color in D0 for pixel D1,D4

Once again, we get the pixel mask, and read in the screen bytes, ANDing it with D1 to get one pixel.

We use this to process the bitplanes, and convert the bitplanes back to a color number in D0
The POINT routine here is excessive - as PHOTON doesn't care what color a pixel is, just if it's black or not.

ALSO, it would be quicker to calculate the color number via bitshifts, rather than filling a byte and looking it up... but POINT is hardly used in this game, so speed isn't a problem, and the example here is easily ported to other systems, or converted for other screen modes


Lesson Photon4 - Sharp x68000 - ASM PSET and POINT for Pixel Plotting
Lets look at the x68000 Platform specific code, We'll need Joystick routines (we'll use the ones from Yquest) and more importantly, we'll need a routine to PSET a pixel to a color, and read a pixel with POINT.

The X68000 uses a bitmap screen, so it's pretty easy to port our game to it.

See Photon folder

Much of the code of Photon is the same as the code in Yquest and the Simple series... we're not going to cover things like setting up the screen or reading the Joypad...

We've covered it so many times before it's getting boring!

Data Definitions & Starting the game

Each system needs some platform specific settings.
The first is an address of RAM for system vars - the game needs less than 256 bytes - this is the entirety of the RAM needed - the rest of the game can run from ROM

We define some screen size vars - these set the scale for objects and font., and the boundaries of the screen for drawing the level.

We also define some 'colors' ... the game uses up to 5 colors (Background 0 and 4 more)... we can use all of these on the x68000
When the game starts we clear the game ram, we use 'CLDIR0' to do this, it clears D1 bytes from address A3

We then show the Main menu.

Main Game Loop

At the start of the loop, we update the 'Tick'

The Tick is 1 or 0 - this is used by the multi-platform code for boost (during which player moves at 2x speed)

If Boost is ON we lower the delay - we need to speed the game up because redrawing the 'Boost counter' is too slow.
During the pause loop we check the keypreses... If a key is not held down we release the keytimeout .

The timeout means if we hold left we don't keep rotating around... We have to press left multiple times.

We store any keypresses in D2 - and wait until D1 reaches Zero.
If the Keytimeout is not cleared we will ignore Left / Right keypresses.

First we turn off Boost (it will be turned back on if FIRE is held)

When we process Left or Right we INC/DEC the 'Player Direction' then run the SetPlayerDirection routine which handles the rest of setting the movement for the player.

If Fire is pressed then we check if any 'Boost power' is left..
If there is, then we turn boost power on.

Once the keypresses are handled, we update the player with 'Handle Player'

Then we update the CPU with 'Handle CPU'

That's it... We jump back to the start of the loop for the next tick.

PSET - Plot Pixel / POINT - Read pixel color

Screen memory on the x68000 is a little weird, but super simple!

even when the screen is 16 color, each pixel uses a word (2 bytes) - though only the bottom nibble does anything.

Also, although each line of the screen is 256 pixels, each line takes 1024 bytes of ram, therefore our formula for the address of a pixel is:
Addr= (Ypos * 1024) + (Xpos * 2)

To set or read a pixel, we just write or read a word to that location.
Our clear screen will do the same, but we'll write in 32 bit longs, so we divide the total bytes by 4

While the screen layout of the x68000 is slightly surprising, it's super easy to work with, and is about the simplest we'll come across!


Lesson Photon5 - Sinclair QL - ASM PSET and POINT for Pixel Plotting
Lets look at the Sinclair QL. The QL uses 3 bits per pixel, allowing up to 8 colors.

We'll write code to directly read and write a pixel in screen VRAM

See Photon folder

Much of the code of Photon is the same as the code in Yquest and the Simple series... we're not going to cover things like setting up the screen or reading the Joypad...

We've covered it so many times before it's getting boring!

Data Definitions & Starting the game

Each system needs some platform specific settings.
The first is an address of RAM for system vars - the game needs less than 256 bytes - this is the entirety of the RAM needed - the rest of the game can run from ROM

We define some screen size vars - these set the scale for objects and font., and the boundaries of the screen for drawing the level.

We also define some 'colors' ... the game uses up to 5 colors (Background 0 and 4 more)...
On the Sinclair QL these colors use 3 bitplanes - Bit 0 is the Green component, Bit 1 is red, and Bit 2 is blue.
When the game starts we clear the game ram, we use 'CLDIR0' to do this, it clears D1 bytes from address A3

We then show the Main menu.

Main Game Loop

At the start of the loop, we update the 'Tick'

The Tick is 1 or 0 - this is used by the multi-platform code for boost (during which player moves at 2x speed)

If Boost is ON we lower the delay - we need to speed the game up because redrawing the 'Boost counter' is too slow.
During the pause loop we check the keypreses... If a key is not held down we release the keytimeout .

The timeout means if we hold left we don't keep rotating around... We have to press left multiple times.

We store any keypresses in D2 - and wait until D1 reaches Zero.
If the Keytimeout is not cleared we will ignore Left / Right keypresses.

First we turn off Boost (it will be turned back on if FIRE is held)

When we process Left or Right we INC/DEC the 'Player Direction' then run the SetPlayerDirection routine which handles the rest of setting the movement for the player.

If Fire is pressed then we check if any 'Boost power' is left..
If there is, then we turn boost power on.

Once the keypresses are handled, we update the player with 'Handle Player'

Then we update the CPU with 'Handle CPU'

That's it... We jump back to the start of the loop for the next tick.

PSET - Plot Pixel / POINT - Read pixel color

The PSET command will set a pixel of the screen...
The X co-ordinate is defined by register D1
The Y co ordinate is defined by D4
D2 is the new color for the pixel (0-3)

Each word of the screen memory contains 4 different pixels, so we need a mask to alter the one pixel we want to change.

The first byte contains the Green bits and the flashing bits (We don't use flashing)
The second contains the Red bits and the Blue Bits

GetScreenPos will calculate the address of the screen byte we want to change (in A3)

We also load a mask from PixelLookup, The mask to keep the screen pixels we don't want to change will be in D1... the mask for the pixel we want to change is D3.

The colors are defined by 3 bits. the first byte contains the Green bits. We test the first bit of the color we want to set in D2, and use our masks to set the screen pixel as needed.

We then move to the next byte and do the same for the Red and Blue bits.

After we do the Red bits, we shift our masks right by one bit to move them to the position of the 4 red bits.

We've now set the color of the pixel!
The GetScreenPos will calculate the memory address of the WORD containing the pixel

because each word contains 4 pixels, we shift the Xpos to the right twice,

we then multiply the Xpos by two (2 bytes per 4 pixels), and the Ypos by 128 (256 pixels per line, 4 pixels per word/2 per byte))

We add this to the screen base $20000
POINT works in reverse to PSET... returning the color in D0 for pixel D1,D4

Once again, we get the pixel mask, and read in the screen bytes, ANDing it with D1 to get one pixel.

We use this to process the bitplanes, and convert the bitplanes back to a color number in D0
The POINT routine here is excessive - as PHOTON doesn't care what color a pixel is, just if it's black or not.

ALSO, it would be quicker to calculate the color number via bitshifts, rather than filling a byte and looking it up... but POINT is hardly used in this game, so speed isn't a problem, and the example here is easily ported to other systems, or converted for other screen modes


Lesson Photon6 - Genesis / Megadrive - ASM PSET and POINT for Pixel Plotting
Lets look at the Genesis, we'll need to simulate pixels by filling the screen with different tiles, and setting the bits of those tiles to show the pixels.

See Photon folder

Much of the code of Photon is the same as the code in Yquest and the Simple series... we're not going to cover things like setting up the screen or reading the Joypad...

We've covered it so many times before it's getting boring!

Data Definitions & Starting the game

Each system needs some platform specific settings.
The first is an address of RAM for system vars - the game needs less than 256 bytes - this is the entirety of the RAM needed - the rest of the game can run from ROM

We define some screen size vars - these set the scale for objects and font., and the boundaries of the screen for drawing the level.

We also define some 'colors' ... the game uses up to 5 colors (Background 0 and 4 more)...
On the Genesis we can use all of these!
We need to fill the screen with consecutively numbered tiles so we can set pixels of the screen.

We're using the 'FillAreaWithTiles' function we wrote in the simple series.
When the game starts we clear the game ram, we use 'CLDIR0' to do this, it clears D1 bytes from address A3

We then show the Main menu.

Main Game Loop

At the start of the loop, we update the 'Tick'

The Tick is 1 or 0 - this is used by the multi-platform code for boost (during which player moves at 2x speed)

If Boost is ON we lower the delay - we need to speed the game up because redrawing the 'Boost counter' is too slow.
During the pause loop we check the keypreses... If a key is not held down we release the keytimeout .

The timeout means if we hold left we don't keep rotating around... We have to press left multiple times.

We store any keypresses in D2 - and wait until D1 reaches Zero.
If the Keytimeout is not cleared we will ignore Left / Right keypresses.

First we turn off Boost (it will be turned back on if FIRE is held)

When we process Left or Right we INC/DEC the 'Player Direction' then run the SetPlayerDirection routine which handles the rest of setting the movement for the player.

If Fire is pressed then we check if any 'Boost power' is left..
If there is, then we turn boost power on.

Once the keypresses are handled, we update the player with 'Handle Player'

Then we update the CPU with 'Handle CPU'

That's it... We jump back to the start of the loop for the next tick.
The Genesis joypad reading code handles 'KeyTimeout' differently to the other systems. The buttons on the genesis seem to 'bounce' when pressed down, meaning they will briefly release even when held.

Therefore we've moved the keyrelease code to after the delay.

PSET - Plot Pixel / POINT - Read pixel color

The PSET command will set a pixel of the screen...
The X co-ordinate is defined by register D1, The Y co ordinate is defined by D4
D2 is the new color for the pixel (0-3)

Each pixel uses one nibble, so Each 8 pixel line of a tile uses one long. We use CalcVramAddr to get the ram address of the line we need to change, we use PrepareVramRead to select the read address, and read the long into D7, we then use PrepareVramWrite to select that address for writing.

We now use the 'Pixel mask' with the bottom 3 bits of the X position, this gets the mask for the one of the 8 pixels in the long we want to change... we flip the bits, this gives us the mask for the 7 pixels we want to keep.

We now use the 'ColorMask' this gives us a long with all the pixels set to the same color, we AND this with our pixel mask, this gives  us the pixel we want in the color we want.

We AND the current screen long with the background mask, and OR in the new pixel color, we write it back to VRAM

We've now set the color of the pixel!
CalcVramAddr will calculate the Long of the pixel.

A line of a tile is 4 bytes, and there are 8 lines per tile, so we multiply the Xposition by 8*4

The bottom 3 bits of the Yline are multiplied by 4 (4 bytes per line)

There are 40 tiles in a line, so we multiply the remaining bits by 40*8*4 (TilesPerLine*LinesPerTile*BytesPerLine).

The first tile on our screen is Tile 1, so we add 32 to the address
When we have an address we want to read or write we must shift the bits of the address into the weird format needed by the Genesis VDP.

We also set bit 14 if we want the port to Write, otherwise it will Read.
POINT works in reverse to PSET... returning the color in D0 for pixel D1,D4

We get the screen long, then shift the bits of the long according to the xposition (0-7) within that long.

This gives us the color number of the pixel.
The POINT routine here is excessive - as PHOTON doesn't care what color a pixel is, just if it's black or not.

ALSO, it would be quicker to calculate the color number via bitshifts, rather than filling a byte and looking it up... but POINT is hardly used in this game, so speed isn't a problem, and the example here is easily ported to other systems, or converted for other screen modes

Lesson Photon7 - NeoGeo - ASM PSET and POINT for Pixel Plotting
The classic NeoGeo poses us a problem - it's Sprite data is all in ROM, and cannot be changed!... We'll have to get pretty tricky to find a solution!

See Photon folder

The Classic NeoGeo cannot alter the Sprite/Fix data as it's held in ROM. It should be noted that the NeoGeo CD does not have this limitation, but that system is not covered by these tutorials.

Bitmap Tiles

To work around the 'ROM' limitation, we'll create a grid of tiles which represent every combination of a 2x4 pixel block.

This will create a block of 256 sprite patterns. We will create multiple colored versions to allow for color.


We'll then fill the screen with scaled tiles, effectively creating a 192x124 screen with 'color attributes' in 2x4 pixel blocks.
This isn't really a viable solution, as it's made the NeoGeo lower resolution than the C64!

It's just a bit of a 'fun' experiment to try to work around the 'rules' of the NeoGeo Rom!

Data Definitions & Starting the game

Each system needs some platform specific settings.
The first is an address of RAM for system vars - the game needs less than 256 bytes - this is the entirety of the RAM needed - the rest of the game can run from ROM

We define some screen size vars - these set the scale for objects and font., and the boundaries of the screen for drawing the level. Unfortunately, we don't have enough sprites for a high res screen.

We also define some 'colors' ... the game uses up to 5 colors (Background 0 and 4 more)...
We've defined 4 different banks of sprites, so we can use all 4 colors.
We need to use the NeoGeo hardware sprites to fill the screen.

we define 96 horizontal sprites, each has 30 vertical tiles.... These are scaled as small as possible while filling the screen.

We will switch these tiles to show pixels onscreen
When the game starts we clear the game ram, we use 'CLDIR0' to do this, it clears D1 bytes from address A3

We then show the Main menu.

Main Game Loop

At the start of the loop, we update the 'Tick'

The Tick is 1 or 0 - this is used by the multi-platform code for boost (during which player moves at 2x speed)

If Boost is ON we lower the delay - we need to speed the game up because redrawing the 'Boost counter' is too slow.
During the pause loop we check the keypreses... If a key is not held down we release the keytimeout .

The timeout means if we hold left we don't keep rotating around... We have to press left multiple times.

We store any keypresses in D2 - and wait until D1 reaches Zero.
If the Keytimeout is not cleared we will ignore Left / Right keypresses.

First we turn off Boost (it will be turned back on if FIRE is held)

When we process Left or Right we INC/DEC the 'Player Direction' then run the SetPlayerDirection routine which handles the rest of setting the movement for the player.

If Fire is pressed then we check if any 'Boost power' is left..
If there is, then we turn boost power on.

Once the keypresses are handled, we update the player with 'Handle Player'

Then we update the CPU with 'Handle CPU'

That's it... We jump back to the start of the loop for the next tick.

PSET - Plot Pixel / POINT - Read pixel color

The PSET command will set a pixel of the screen...
The X co-ordinate is defined by register D1, The Y co ordinate is defined by D4
D2 is the new color for the pixel (0-3)

Each tile is 2x4, so we skip 1 bit of the Xpos, and 2 bits of the Ypos


We need to calculate the tile number we need to change, The tiles are vertically organized, and each tile is 2 bytes, so we multiply the Ypos by 2, each sprite contains up to 32 tiles, so we multiply the Xpos by 64

We now use the 'Pixel mask' to calculate the Y offset of the sprite pattern we need to use.

If the bottom bit of X is 1, We then multiply this by 16 - this is because there are 2 strips of vertical pixels in each pattern.

We now calculate which bank of tiles we want to use according to the color, we AND the current pattern used by the tile with $FCFF - removing the current color.

We then OR in the new color, and pixel data, setting the pixel, while keeping any other set pixels unchanged.

We've now set the color of the pixel!
POINT works in reverse to PSET... returning the color in D0 for pixel D1,D4

We get the tile from the screen, and mask the pixel we want to look at, returning it the pixel is set or not.
The clear screen routine sets all the visible tiles to zero.





View Options
Default Dark
Simple (Hide this menu)
Print Mode (white background)

Top Menu
***Main Menu***
Youtube channel
Patreon
Introduction to Assembly (Basics for absolute beginners)
Amazon Affiliate Link
Forum
AkuSprite Editor
ChibiTracker
Dec/Bin/Hex/Oct/Ascii Table

Alt Tech
Archive.org
Bitchute
Odysee
Rumble
DailyMotion
Please note: I wlll upload more content to these alt platforms based on the views they bring in

Z80 Content
***Z80 Tutorial List***
Learn Z80 Assembly (2021)
Learn Z80 Assembly (old)
Hello World
Simple Samples
Advanced Series
Multiplatform Series
Platform Specific Series
ChibiAkumas Series
Grime Z80
Z80 Downloads
Z80 Cheatsheet
Sources.7z
DevTools kit
Z80 Platforms
Amstrad CPC
Elan Enterprise
Gameboy & Gameboy Color
Master System & GameGear
MSX & MSX2
Sam Coupe
TI-83
ZX Spectrum
Spectrum NEXT
Camputers Lynx

6502 Content
***6502 Tutorial List***
Learn 6502 Assembly
Advanced Series
Platform Specific Series
Hello World Series
Simple Samples
Grime 6502
6502 Downloads
6502 Cheatsheet
Sources.7z
DevTools kit
6502 Platforms
Apple IIe
Atari 800 and 5200
Atari Lynx
BBC Micro
Commodore 64
Commodore PET
Commander x16
Super Nintendo (SNES)
Nintendo NES / Famicom
PC Engine (Turbografx-16)
Vic 20

68000 Content
***68000 Tutorial List***
Learn 68000 Assembly
Hello World Series
Platform Specific Series
Simple Samples
Grime 68000
68000 Downloads
68000 Cheatsheet
Sources.7z
DevTools kit
68000 Platforms
Amiga 500
Atari ST
Neo Geo
Sega Genesis / Mega Drive
Sinclair QL
X68000 (Sharp x68k)

8086 Content
Learn 8086 Assembly
Platform Specific Series
Hello World Series
Simple Samples
8086 Downloads
8086 Cheatsheet
Sources.7z
DevTools kit
8086 Platforms
Wonderswan
MsDos

ARM Content
Learn ARM Assembly
Learn ARM Thumb Assembly
Platform Specific Series
Hello World
Simple Samples
ARM Downloads
ARM Cheatsheet
Sources.7z
DevTools kit
ARM Platforms
Gameboy Advance
Nintendo DS
Risc Os

Risc-V Content
Learn Risc-V Assembly
Risc-V Downloads
Risc-V Cheatsheet
Sources.7z
DevTools kit

MIPS Content
Learn Risc-V Assembly
Platform Specific Series
Hello World
Simple Samples
MIPS Downloads
MIPS Cheatsheet
Sources.7z
DevTools kit
MIPS Platforms
Playstation
N64

PDP-11 Content
Learn PDP-11 Assembly
Platform Specific Series
Simple Samples
PDP-11 Downloads
PDP-11 Cheatsheet
Sources.7z
DevTools kit
PDP-11 Platforms
PDP-11
UKNC

TMS9900 Content
Learn TMS9900 Assembly
Platform Specific Series
Hello World
TMS9900 Downloads
TMS9900 Cheatsheet
Sources.7z
DevTools kit
TMS9900 Platforms
Ti 99

6809 Content
Learn 6809 Assembly
Learn 6309 Assembly
Platform Specific Series
Hello World Series
Simple Samples
6809 Downloads
6809/6309 Cheatsheet
Sources.7z
DevTools kit
6809 Platforms
Dragon 32/Tandy Coco
Fujitsu FM7
TRS-80 Coco 3
Vectrex

65816 Content
Learn 65816 Assembly
Hello World
Simple Samples
65816 Downloads
65816 Cheatsheet
Sources.7z
DevTools kit
65816 Platforms
SNES

eZ80 Content
Learn eZ80 Assembly
Platform Specific Series
eZ80 Downloads
eZ80 Cheatsheet
Sources.7z
DevTools kit
eZ80 Platforms
Ti84 PCE

IBM370 Content
Learn IBM370 Assembly
Simple Samples
IBM370 Downloads
IBM370 Cheatsheet
Sources.7z
DevTools kit

Super-H Content
Learn SH2 Assembly
Hello World Series
Simple Samples
SH2 Downloads
SH2 Cheatsheet
Sources.7z
DevTools kit
SH2 Platforms
32x
Saturn

PowerPC Content
Learn PowerPC Assembly
Hello World Series
Simple Samples
PowerPC Downloads
PowerPC Cheatsheet
Sources.7z
DevTools kit
PowerPC Platforms
Gamecube

Work in Progress
ChibiAndroids

Misc bits
Ruby programming









Buy my Assembly programming book
on Amazon in Print or Kindle!


Buy my Assembly programming book



Available worldwide!
Search 'ChibiAkumas' on
your local Amazon website!
Click here for more info!



































































































Buy my Assembly programming book
on Amazon in Print or Kindle!


Buy my Assembly programming book



Available worldwide!
Search 'ChibiAkumas' on
your local Amazon website!
Click here for more info!



































































































Buy my Assembly programming book
on Amazon in Print or Kindle!


Buy my Assembly programming book



Available worldwide!
Search 'ChibiAkumas' on
your local Amazon website!
Click here for more info!
