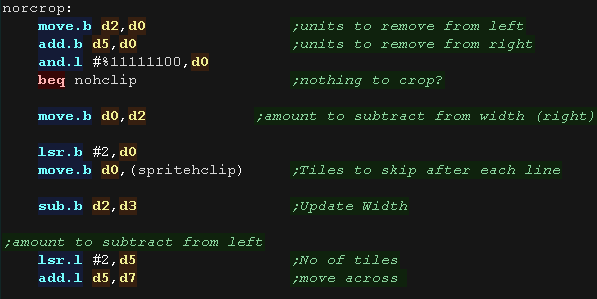

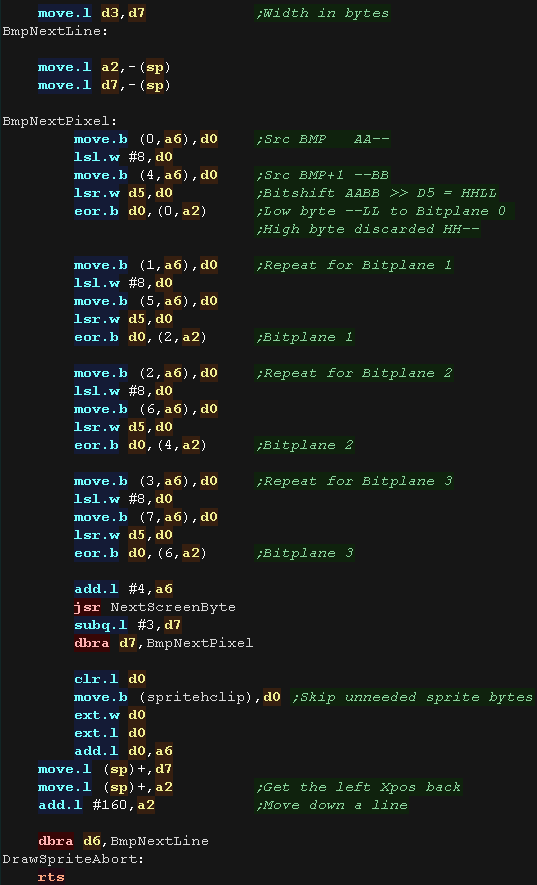

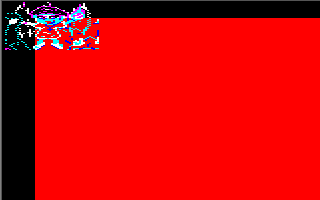

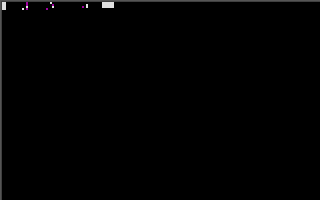

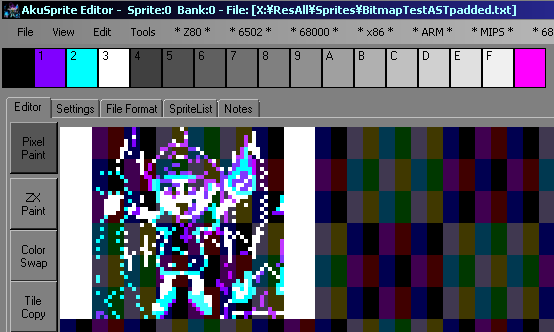

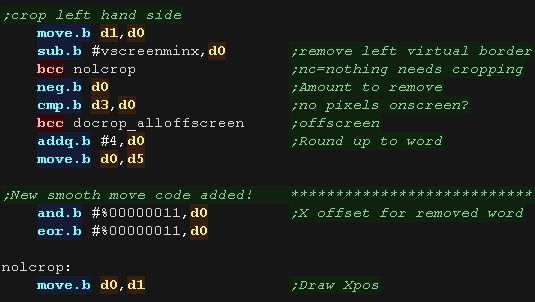

Learn Multi platform 6502 Assembly Programming... For Monsters! Super Simple Series In this series we'll take a look at a variety of basic tasks that you may need to look at when you're starting out with programming these classic systems... In each case the source-code will be a single file with no Includes to make things easy if you're using a different assembler (though some may include a binary.) Lesson S16 - Per-Pixel Simple Sprite Clipping on the Atari ST Our last example was a bit jerky moving horizontally. Because of the bitplane layout we were moving in 1 byte chunks... this time we'll add bit shifting for some smooth moves! AST_BitmapClipping.asm Logical Units and clipping Our new cropping routine will bitshift the sprite by up to 8 pixels. This means that some of the first and/or last byte of the sprite may not be shown. To 'solve this' we've added a 1 byte (8 pixel) wide strip of space on either side of our character's bitmap data. For clarity this has been made white so we can see what's happening, but really it should be black! Here is the raw sprite data in AkuSprite editor Rather than padding our sprite in this way we could instead we could make our code handle the first and last byte differently, but this would make the code longer and more complicated. Our updated Sprite Routine We need one small change to our cropping routine... we now need a 'partial byte' Xpos so we can calculate the bit shift. Our cropping routine will 'lose' 8 pixels of our sprite, so we also need to increase the width of the logical screen by 4 units to compensate. We reduce the width of our sprite by 8 pixels, to remove half the 'padding' (the other half is needed by the pixel shifting routine) We need to fix up our co-ordinates. Our routine works horizontally in 8 pixel blocks, and we need to reduce our width (in D3) by one for DBRA We vconvert the Xpos to byte blocks (8 pixels) We need to convert our height (D6) and Ypos (D4) from logical units to lines We then use GetScreenPos to get the VRAM destionation (in register A2) Our sprite routine still works in bytes, so we need to take the 'unused' part of the X-pos to calculate the bits we need to shift the source bitmap.... we store this in D5 GetVDPScreenPos will calculate the VRAM destination A2 from X,Y pos (D1,D4) We have each 320 pixel line is 160 bytes, but we have to cope with the fact that pairs of bytes are grouped together, but the bitplanes of those pairs are in 8 consecutive bytes in vram. Lesson S17 - Tilemap clipping on the Genesis We drew our chibiko character on the screen before with the tilemap and moved it around the screen, but this time we'll improve the routine, and allow the bitmap to go partially offscreen! Lets give it a go. GEN_BitmapClipping.asm Logical Units and clipping To allow us to crop our sprites, we'll need to move our sprite around 'logical space' - only a portion of this will be the visible screen. We'll use this to crop the sprite. We're designing our code for screens of 256x192 - and we'll use 'Logical Co-ordinates' which define a visible screen of 192x96 (2 pixels per logical unit) The visible logical screen is in the center of the logical space area to allow the sprite to be 'partially offscreen' on any side. We need to crop any offscreen part to get to the first visible pixel of the sprite. After each line We also need to crop the unused pixels to the next visible pixel Here we're going to use the tilemap to draw our character to the screen, so our sprites will move by 8x8 chunks. Next time we'll do the same with hardware sprites. Our Sprite Routine Before we draw our sprite we need to crop it with "DoCrop" registers D1,D4 is the X,Y co-ordinate in logical units registers D3,D6 is the Width,Height in logical units register D7 is the first tile number we'll use to draw our character If there is nothing onscreen, 'DoCrop' will return the Carry set. We need to draw the grid of tiles to the screen. First we calculate the XY address in the tilemap in VRAM We then transfer all the numbered tiles into VRAM, If our sprite is horizontally cropped, we need to skip some tiles with spritehclip Logical Cropping Our cropping routine will work out the X,Y pos in bytes, and width and height + any skipped pixels from the source data registers D1,D4 is the X,Y co-ordinate in logical units registers D3,D6 is the Width,Height in logical units register A6 is the address of the source bitmap data. First we zero D2,D5 - they are used for temp values, and spritehclip which is used for the horizontally skipped bytes after each line Ok... lets crop the top of the sprite... First we remove the ypos of the first visible pixel from the draw ypos (D4)... if the result is greater than zero, then nothing is off the screen at the top. if the result is less than zero we need to crop... we convert the negative to a positive and compare to the height of our sprite (D6), if the amount to crop is not less than the height then the sprite is completely offscreen. Anything else is the number of lines we need to remove from the top, we store this in D5 and set the new 'draw position' to Ypos (D4) =0 We use 'and.l #%11111100,d0' to round to a whole number of tiles. Next we do the same for the bottom, We add the height to the Ypos, and subtract the height of the logical screen, if it's over the screen height (greater than zero) we need to crop again - the result is the amount to crop We've calculated the top (d5) and bottom (d2) crop... we now use these to calculate the new height of the sprite (D6). We then skip over any bytes in the source (D7) based on the number of lines of tiles we need to remove from the top. now we do the same for the X axis First we remove the xpos of the first visible pixel from the draw Xpos (D1) ... if the result is greater than zero, then nothing is off the screen at the left. if the result is less than zero we need to crop... we convert the negative to a positive and compare to the width of our sprite (D3), if the amount to crop is not less than the width then the sprite is completely offscreen. Anything else is the number of lines we need to remove from the left, we store this in D5 and set the new 'draw position' to Xpos (D1) =0 Next we do the same for the right, We add the width (D3) to the Xpos, and subtract the width of the logical screen, if it's over the screen width (greater than zero) we need to crop again - the result is the amount to crop from the right (d2) We've calculated the left and right crop... we now use these to calculate the new width of the sprite (D3). We then skip over any bytes in the source (D7) based on the number of bytes we need to remove from the left (D5). We clear the carry to tell the calling routine we cropped the sprite successfully (it needs drawing) and return. If the sprite is completely offscreen, there's no point trying to draw, so we set the carry and return Lesson S18 - Hardware Sprite Clipping on the Genesis Our last example was distinctly disappointing!... using the Tilemap is easy, but gave jerky movement! Lets smooth things over and make things move more neatly! GEN_BitmapClippingHsprite.asm Logical Units and clipping To allow us to crop our sprites, we'll need to move our sprite around 'logical space' - only a portion of this will be the visible screen. We'll use this to crop the sprite. We're designing our code for screens of 256x192 - and we'll use 'Logical Co-ordinates' which define a visible screen of 192x96 (2 pixels per logical unit) The visible logical screen is in the center of the logical space area to allow the sprite to be 'partially offscreen' on any side. We need to crop any offscreen part to get to the first visible pixel of the sprite. After each line We also need to crop the unused pixels to the next visible pixel This time we'll use hardware sprites... wooo! We'll build up our big sprite out of little 8x8 ones... our 48x48 sprite will need 6x6 tiles - 36 in total! We could use bigger sprites, but for convenience we'll stick to 8x8 ones. Our Sprite Routine Before we draw our sprite we need to crop it with "DoCrop" registers D1,D4 is the X,Y co-ordinate in logical units registers D3,D6 is the Width,Height in logical units register D7 is the first tile number we'll use to draw our character If there is nothing onscreen, 'DoCrop' will return the Carry set. First we need to convert our logical units. We need the X and Y pos in pixels. We need the width and height in tiles (8x8 pixel blocks) We need to allocate each of the 36 sprites a separate hardware sprite number, we use consecutive sprites defined by D5. We need to set all the hardware sprites in a grid to make the Chibiko sprite. for each we define the X and Y position and sprite pos. Each sprite needs to link to the next hardware sprite number, so we INC D5 with each sprite. We need the last hardware sprite to point back to the first. Logical Cropping Our cropping routine will work out the X,Y pos in bytes, and width and height + any skipped pixels from the source data registers D1,D4 is the X,Y co-ordinate in logical units registers D3,D6 is the Width,Height in logical units register A6 is the address of the source bitmap data. First we zero D2,D5 - they are used for temp values, and spritehclip which is used for the horizontally skipped bytes after each line Ok... lets crop the top of the sprite... First we remove the ypos of the first visible pixel from the draw ypos (D4)... if the result is greater than zero, then nothing is off the screen at the top. if the result is less than zero we need to crop... we convert the negative to a positive and compare to the height of our sprite (D6), if the amount to crop is not less than the height then the sprite is completely offscreen. Anything else is the number of lines we need to remove from the top, we store this in D5 and set the new 'draw position' to Ypos (D4) =0 We need to EOR the bottom two bits to correct the Y position as we remove tiles from the top. Next we do the same for the bottom, We add the height to the Ypos, and subtract the height of the logical screen, if it's over the screen height (greater than zero) we need to crop again - the result is the amount to crop We've calculated the top (d5) and bottom (d2) crop... we now use these to calculate the new height of the sprite (D6). We then skip over any bytes in the source (D7) based on the number of lines of tiles we need to remove from the top. We're still working in 8x8 pixel tiles when working with hardware sprites. now we do the same for the X axis First we remove the xpos of the first visible pixel from the draw Xpos (D1) ... if the result is greater than zero, then nothing is off the screen at the left. if the result is less than zero we need to crop... we convert the negative to a positive and compare to the width of our sprite (D3), if the amount to crop is not less than the width then the sprite is completely offscreen. Anything else is the number of lines we need to remove from the left, we store this in D5 and set the new 'draw position' to Xpos (D1) =0 We need to EOR the bottom two bits to correct the X position as we remove tiles from the left. Next we do the same for the right, We add the width (D3) to the Xpos, and subtract the width of the logical screen, if it's over the screen width (greater than zero) we need to crop again - the result is the amount to crop from the right (d2) We've calculated the left and right crop... we now use these to calculate the new width of the sprite (D3). Again we have to work in 8x8 tiles. We then skip over any bytes in the source (D7) based on the number of bytes we need to remove from the left (D5). We clear the carry to tell the calling routine we cropped the sprite successfully (it needs drawing) and return. If the sprite is completely offscreen, there's no point trying to draw, so we set the carry and return etely offscreen, there's no point trying to draw, so we set the carry and return Lesson S19 - Simple Sprite Clipping on the Sinclair QL Lets extend our Sinclair QL example, and allow the sprite to go partially offscreen SQL_BitmapClipping.asm Logical Units and clipping To allow us to crop our sprites, we'll need to move our sprite around 'logical space' - only a portion of this will be the visible screen. We'll use this to crop the sprite. We're designing our code for screens of 256x192 - and we'll use 'Logical Co-ordinates' which define a visible screen of 192x96 (2 pixels per logical unit) The visible logical screen is in the center of the logical space area to allow the sprite to be 'partially offscreen' on any side. We need to crop any offscreen part to get to the first visible pixel of the sprite. After each line We also need to crop the unused pixels to the next visible pixel The QL screen is 256x256 in 8 color mode, so in this case our logical screen will be 128 x 128 Our Sprite Routine Before we draw our sprite we need to crop it with "DoCrop" registers D1,D4 is the X,Y co-ordinate in logical units registers D3,D6 is the Width,Height in logical units register A6 is the address of the source bitmap data. If there is nothing onscreen, 'DoCrop' will return the Carry set. We use GetScreenPos to get the destination address in A2, from the XyPos in D1,D4 We transfer 2 bytes (1 word) per 4 pixels along each line of our sprite, After a line, we may need to skip a few bytes (spritehclip) before the next line due to cropping, We repeat until the sprite is done. GetVDPScreenPos will calculate the VRAM destination A2 from X,Y pos (D1,D4) Each 4 pixel block takes 2 bytes, each line is 128 bytes, and the screen base is $20000 Therefore our VRAM address formula is: VRAM = $20000+ (Xpos * 2) + Ypos * 128) Logical Cropping Our cropping routine will work out the X,Y pos in bytes, and width and height + any skipped pixels from the source data registers D1,D4 is the X,Y co-ordinate in logical units registers D3,D6 is the Width,Height in logical units register A6 is the address of the source bitmap data. First we zero D2,D5 - they are used for temp values, and spritehclip which is used for the horizontally skipped bytes after each line Ok... lets crop the top of the sprite... First we remove the ypos of the first visible pixel from the draw ypos (D4)... if the result is greater than zero, then nothing is off the screen at the top. if the result is less than zero we need to crop... we convert the negative to a positive and compare to the height of our sprite (D6), if the amount to crop is not less than the height then the sprite is completely offscreen. Anything else is the number of lines we need to remove from the top, we store this in D5 and set the new 'draw position' to Ypos (D4) =0 Next we do the same for the bottom, We add the height to the Ypos, and subtract the height of the logical screen, if it's over the screen height (greater than zero) we need to crop again - the result is the amount to crop We've calculated the top (d5) and bottom (d2) crop... we now use these to calculate the new height of the sprite (D6). We then skip over any bytes in the source (A6) based on the number of lines we need to remove from the top. now we do the same for the X axis First we remove the xpos of the first visible pixel from the draw Xpos (D1) ... if the result is greater than zero, then nothing is off the screen at the left. Anything else is the number of lines we need to remove from the left, we store this in D5 and set the new 'draw position' to Xpos (D1) =0 Next we do the same for the right, We add the width (D3) to the Xpos, and subtract the width of the logical screen, if it's over the screen width (greater than zero) we need to crop again - the result is the amount to crop from the right (d2) We've calculated the left and right crop... we now use these to calculate the new width of the sprite (D3). We need to work in 4 pixel blocks, so we mask with 'and #%11111110,d0'. We then skip over any bytes in the source (A6) based on the number of bytes we need to remove from the left (D5). We need to convert our logical units into 'proper co-ordinates' We convert the Ypos & Height into lines by multiplying by 2. We change the Xpos and width into bytes (Clusters of 4 pixels) by dividing by 2. We clear the carry to tell the calling routine we cropped the sprite successfully (it needs drawing) and return. If the sprite is completely offscreen, there's no point trying to draw, so we set the carry and return Lesson S20 - Fix layer clipping on the NeoGeo Lets take our previous NeoGeo example where we drew a graphic on the 'Fix layer' and add clipping, so the image can go partially offscreen. NEO_BitmapClipping.asm Logical Units and clipping To allow us to crop our sprites, we'll need to move our sprite around 'logical space' - only a portion of this will be the visible screen. We'll use this to crop the sprite. We're designing our code for screens of 256x192 - and we'll use 'Logical Co-ordinates' which define a visible screen of 192x96 (2 pixels per logical unit) The visible logical screen is in the center of the logical space area to allow the sprite to be 'partially offscreen' on any side. We need to crop any offscreen part to get to the first visible pixel of the sprite. After each line We also need to crop the unused pixels to the next visible pixel Here we're going to use the Fix layer to draw our character to the screen, so our sprites will move by 8x8 chunks. Next time we'll do the same with hardware sprites. Our Sprite Routine Before we draw our sprite we need to crop it with "DoCrop" registers D1,D4 is the X,Y co-ordinate in logical units registers D3,D6 is the Width,Height in logical units register D7 is the first tile number we'll use to draw our character If there is nothing onscreen, 'DoCrop' will return the Carry set. Once the crop is done we convert our co-ordinates from logical units to tiles. Our FillAreaWithTiles routine will draw the character to the screen. Before each horizontal line of tiles, we need to calculate the Vram Destination into D5 our formula is Vram= $7000 + (Xpos * 32) + (Ypos) + 2 We transfer the tiles to the screen one at a time. The NeoGeo Fix layer is organized down, then across... but our code is designed to work across, then down. to correct this we add 32 after each block - effectively moving across the screen one block, we then repeat until the character is done. Logical Cropping Our cropping routine will work out the X,Y pos in bytes, and width and height + any skipped pixels from the source data registers D1,D4 is the X,Y co-ordinate in logical units registers D3,D6 is the Width,Height in logical units register A6 is the address of the source bitmap data. First we zero D2,D5 - they are used for temp values, and spritehclip which is used for the horizontally skipped bytes after each line Ok... lets crop the top of the sprite... First we remove the ypos of the first visible pixel from the draw ypos (D4)... if the result is greater than zero, then nothing is off the screen at the top. if the result is less than zero we need to crop... we convert the negative to a positive and compare to the height of our sprite (D6), if the amount to crop is not less than the height then the sprite is completely offscreen. Anything else is the number of lines we need to remove from the top, we store this in D5 and set the new 'draw position' to Ypos (D4) =0 We use 'and.l #%11111100,d0' to round to a whole number of tiles. Next we do the same for the bottom, We add the height to the Ypos, and subtract the height of the logical screen, if it's over the screen height (greater than zero) we need to crop again - the result is the amount to crop We've calculated the top (d5) and bottom (d2) crop... we now use these to calculate the new height of the sprite (D6). We then skip over any bytes in the source (D7) based on the number of lines of tiles we need to remove from the top. now we do the same for the X axis First we remove the xpos of the first visible pixel from the draw Xpos (D1) ... if the result is greater than zero, then nothing is off the screen at the left. if the result is less than zero we need to crop... we convert the negative to a positive and compare to the width of our sprite (D3), if the amount to crop is not less than the width then the sprite is completely offscreen. Anything else is the number of lines we need to remove from the left, we store this in D5 and set the new 'draw position' to Xpos (D1) =0 Next we do the same for the right, We add the width (D3) to the Xpos, and subtract the width of the logical screen, if it's over the screen width (greater than zero) we need to crop again - the result is the amount to crop from the right (d2) We've calculated the left and right crop... we now use these to calculate the new width of the sprite (D3). We then skip over any bytes in the source (D7) based on the number of bytes we need to remove from the left (D5). We clear the carry to tell the calling routine we cropped the sprite successfully (it needs drawing) and return. If the sprite is completely offscreen, there's no point trying to draw, so we set the carry and return Lesson S21 - Hardware Sprite clipping on the NeoGeo Lets do more sprite clipping... this time with hardware sprites! NEO_BitmapClippingHsprite.asm Logical Units and clipping To allow us to crop our sprites, we'll need to move our sprite around 'logical space' - only a portion of this will be the visible screen. We'll use this to crop the sprite. We're designing our code for screens of 256x192 - and we'll use 'Logical Co-ordinates' which define a visible screen of 192x96 (2 pixels per logical unit) The visible logical screen is in the center of the logical space area to allow the sprite to be 'partially offscreen' on any side. We need to crop any offscreen part to get to the first visible pixel of the sprite. After each line We also need to crop the unused pixels to the next visible pixel This time we're using Hardware sprites for smooth moves, however the hardware sprites are 16x16, so our code will need quite a few changes! Our Sprite Routine Before we draw our sprite we need to crop it with "DoCrop" registers D1,D4 is the X,Y co-ordinate in logical units registers D3,D6 is the Width,Height in logical units register D7 is the first tile number we'll use to draw our character If there is nothing onscreen, 'DoCrop' will return the Carry set. Once the crop is done we convert our co-ordinates from logical units to pixel co-ordinates, and width and height in 16 pixel sprites. We need to draw our chibiko character out of hardware sprites. We set the X,Y position of each hardware sprite - using D5 as the hardware sprite number. Subroutine SetSprite will do the job of defining the hardware sprite in Vram. after each line, if there's any horizontal cropping, we use 'spritehclip' to remove the unwanted sprites Ok, lets set up the sprite... First we're going to set up the 'Shrink' scale... this is at address $8000 + the sprite number We select the address in VRAM using memory mapped port $3C0000 we set all the scale bits to 1 ($0FFF)... this is 'Normal size' - anything else would be smaller... We set the new value using memory mapped port $3C0002      Next we want to set the Y position... the address in VRAM we need to write to is $8200+ the sprite number - so we add $200 to our write position... We need to shift our Y position to bit 7 of the word, as the low bits handle the height (and horizontal chaining) of the sprite we need to add 1 to the low byte - so our sprite has a height of 1      Next is the turn of the X position.... this has it's VRAM address at &8400+ the sprite number, so again we add $200 our write position      The rest of the attributes are at VRAM address $0000 + sprnum*64 We multiply the sprite number in D0 by 64 by bitshifting to the left 6 times      Next we need to set the palette at $0001+sprnum*64... so we add one to the last address We need to set the top byte to our palette number. In this simple example, we don't use the low byte... the low byte handles V/H flipping, Automatic sprite animation, and the top 4 bits of the Tile Number (it's 20 bit in total) As we crop our sprite, the number of hardware sprites the character will need may go down. If we do nothing, now unneeded sprites may 'trail' as the sprite is cropped. To resolve this we set the position of any unneeded sprites to pos 255,255 - making them invisible. Logical Cropping Our cropping routine will work out the X,Y pos in bytes, and width and height + any skipped pixels from the source data registers D1,D4 is the X,Y co-ordinate in logical units registers D3,D6 is the Width,Height in logical units register A6 is the address of the source bitmap data. First we zero D2,D5 - they are used for temp values, and spritehclip which is used for the horizontally skipped bytes after each line Ok... lets crop the top of the sprite... First we remove the ypos of the first visible pixel from the draw ypos (D4)... if the result is greater than zero, then nothing is off the screen at the top. if the result is less than zero we need to crop... we convert the negative to a positive and compare to the height of our sprite (D6), if the amount to crop is not less than the height then the sprite is completely offscreen. Anything else is the number of lines we need to remove from the top, we store this in D5 and set the new 'draw position' to Ypos (D4) =0 we EOR with 'eor.b #%00000111,d0' to correct the draw position as 16 pixel (8 logical unit) tiles are removed. Next we do the same for the bottom, We add the height to the Ypos, and subtract the height of the logical screen, if it's over the screen height (greater than zero) we need to crop again - the result is the amount to crop We've calculated the top (d5) and bottom (d2) crop... we now use these to calculate the new height of the sprite (D6). We then skip over any bytes in the source (D7) based on the number of lines of sprites we need to remove from the top. now we do the same for the X axis First we remove the xpos of the first visible pixel from the draw Xpos (D1) ... if the result is greater than zero, then nothing is off the screen at the left. if the result is less than zero we need to crop... we convert the negative to a positive and compare to the width of our sprite (D3), if the amount to crop is not less than the width then the sprite is completely offscreen. Anything else is the number of lines we need to remove from the left, we store this in D5 and set the new 'draw position' to Xpos (D1) =0 Next we do the same for the right, We add the width (D3) to the Xpos, and subtract the width of the logical screen, if it's over the screen width (greater than zero) we need to crop again - the result is the amount to crop from the right (d2) We've calculated the left and right crop... we now use these to calculate the new width of the sprite (D3). We then skip over any tiles in the source (D7) based on the number of tiles we need to remove from the left (D5). We clear the carry to tell the calling routine we cropped the sprite successfully (it needs drawing) and return. If the sprite is completely offscreen, there's no point trying to draw, so we set the carry and return		View Options Default Dark Simple (Hide this menu) Print Mode (white background) Top Menu ***Main Menu*** Youtube channel Patreon Introduction to Assembly (Basics for absolute beginners) Amazon Affiliate Link AkuSprite Editor ChibiTracker Dec/Bin/Hex/Oct/Ascii Table Alt Tech Archive.org Bitchute Odysee Rumble DailyMotion Please note: I wlll upload more content to these alt platforms based on the views they bring in Z80 Content ***Z80 Tutorial List*** Learn Z80 Assembly (2021) Learn Z80 Assembly (old) Hello World Simple Samples Advanced Series Multiplatform Series Platform Specific Series ChibiAkumas Series Grime Z80 Z80 Downloads Z80 Cheatsheet Sources.7z DevTools kit Z80 Platforms Amstrad CPC Elan Enterprise Gameboy & Gameboy Color Master System & GameGear MSX & MSX2 Sam Coupe TI-83 ZX Spectrum Spectrum NEXT Camputers Lynx 6502 Content ***6502 Tutorial List*** Learn 6502 Assembly Advanced Series Platform Specific Series Hello World Series Simple Samples Grime 6502 6502 Downloads 6502 Cheatsheet Sources.7z DevTools kit 6502 Platforms Apple IIe Atari 800 and 5200 Atari Lynx BBC Micro Commodore 64 Commodore PET Commander x16 Super Nintendo (SNES) Nintendo NES / Famicom PC Engine (Turbografx-16) Vic 20 68000 Content ***68000 Tutorial List*** Learn 68000 Assembly Hello World Series Platform Specific Series Simple Samples Grime 68000 68000 Downloads 68000 Cheatsheet Sources.7z DevTools kit 68000 Platforms Amiga 500 Atari ST Neo Geo Sega Genesis / Mega Drive Sinclair QL X68000 (Sharp x68k) 8086 Content Learn 8086 Assembly Platform Specific Series Hello World Series Simple Samples 8086 Downloads 8086 Cheatsheet Sources.7z DevTools kit 8086 Platforms Wonderswan MsDos ARM Content Learn ARM Assembly Learn ARM Thumb Assembly Platform Specific Series Hello World Simple Samples ARM Downloads ARM Cheatsheet Sources.7z DevTools kit ARM Platforms Gameboy Advance Nintendo DS Risc Os Risc-V Content Learn Risc-V Assembly Risc-V Downloads Risc-V Cheatsheet Sources.7z DevTools kit MIPS Content Learn Risc-V Assembly Platform Specific Series Hello World Simple Samples MIPS Downloads MIPS Cheatsheet Sources.7z DevTools kit MIPS Platforms Playstation N64 PDP-11 Content Learn PDP-11 Assembly Platform Specific Series Simple Samples PDP-11 Downloads PDP-11 Cheatsheet Sources.7z DevTools kit PDP-11 Platforms PDP-11 UKNC TMS9900 Content Learn TMS9900 Assembly Platform Specific Series Hello World TMS9900 Downloads TMS9900 Cheatsheet Sources.7z DevTools kit TMS9900 Platforms Ti 99 6809 Content Learn 6809 Assembly Learn 6309 Assembly Platform Specific Series Hello World Series Simple Samples 6809 Downloads 6809/6309 Cheatsheet Sources.7z DevTools kit 6809 Platforms Dragon 32/Tandy Coco Fujitsu FM7 TRS-80 Coco 3 Vectrex 65816 Content Learn 65816 Assembly Hello World Simple Samples 65816 Downloads 65816 Cheatsheet Sources.7z DevTools kit 65816 Platforms SNES eZ80 Content Learn eZ80 Assembly Platform Specific Series eZ80 Downloads eZ80 Cheatsheet Sources.7z DevTools kit eZ80 Platforms Ti84 PCE IBM370 Content Learn IBM370 Assembly Simple Samples IBM370 Downloads IBM370 Cheatsheet Sources.7z DevTools kit Super-H Content Learn SH2 Assembly Hello World Series Simple Samples SH2 Downloads SH2 Cheatsheet Sources.7z DevTools kit SH2 Platforms 32x Saturn PowerPC Content Learn PowerPC Assembly Hello World Series Simple Samples PowerPC Downloads PowerPC Cheatsheet Sources.7z DevTools kit PowerPC Platforms Gamecube Work in Progress ChibiAndroids Misc bits Ruby programming Buy my Assembly programming book on Amazon in Print or Kindle! Available worldwide! Search 'ChibiAkumas' on your local Amazon website! Click here for more info! Buy my Assembly programming book on Amazon in Print or Kindle! Available worldwide! Search 'ChibiAkumas' on your local Amazon website! Click here for more info! Buy my Assembly programming book on Amazon in Print or Kindle! Available worldwide! Search 'ChibiAkumas' on your local Amazon website! Click here for more info!
