Learn IBM370 Assembly Programming... For Mainframe Madness!



Don't like to read? you can learn while you watch and listen instead!

Every Lesson in this series has a matching YOUTUBE video... with commentary and practical examples

Visit the authors Youtube channel, or Click the icons to the right when you see them to watch the Lessons video!

You may have a computer in your phone, but once upon a time computers weren't so small!

The IBM System 370 was the successor to the 360 and was a room sized computer.

The IBM370 was released in 1970, and for it's age has a staggeringly powerful instruction set.

You can forget your Mouse, HD Display and SD card, the 370 read it input from punched cards, and sent its output to a printer and terminal monitor!

Fortunately thanks to modern computing, we can emulate a System 370 machine with the Hercules emulator, so we won't need a small warehouse for our cpu tower!

The IBM360
(I can't find a 370 photo on wikipedia!)


A printout from a compile job.

Documentation:
Reference Card
Assembler manual
JCL Manual - Job Control Language is used to send ASM files to the server for assembly and execution


Useful Links:
Hercules Emulator
OS Setup
Minimal ASM Example - See: Compile/Assemble and Execute


Bit Order!

Because IBM hate us and want us to suffer, the official documents refer to the leftmost bit of a 32 bit value as bit 0 - on any other CPU it would usually be considered bit 31. We'll use the more common convention in these tutorials.

We'll specify LSB and MSB to be clear... LSB 0 will be the rightmost bit...  MSB 31 will be the leftmost

IBM Documentation written by drunk madmen
Bit 31 is Least significant rightmost bit
Bit 0 is Most significant leftmost bit
Bit:   0.1.2.........29.30.31
           MSB --------- LSB
Everyone else in the entire world ever
Bit 0 is Least significant rightmost bit
Bit 31 is Most significant leftmost bit
Bit:   31.30.29.........2.1.0
           MSB --------- LSB


Most Significant Bts Least Significant Bits
Normal  31   30   29   28   27   26   25   24   23   22   21   20   19   18   17   16   15   14   13   12   11   10    9    8    7    6    5    4    3    2    1    0
Power PC 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31
Bit Value ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... 512 256 128 64 32 16 8 4 2 1


Registers
The CPU has 16x 32 bit registers (R0-R15 / AKA 1-15)
The IBM 360/370 is a BIG ENDIAN system, a word is 32 bits, a half-word is 16 bits.


Register
Details (suggested purpose)
R0
Subroutine Parameter / Hardwired Zero with addressing commands
R1
Subroutine Parameter / Parameter List
R2
Sometimes a Subroutine Parameter
R3

R4

R5

R6

R7

R8

R9

R10

R11
Our programs use this for the WTO buffer pos
R12
Our programs use this for USING
R13
Save Area for subroutines (like a stack)
R14
Return Address
R15
Subroutine Entry point register (The address we want to call)

Some are used by the OS, however Registers R2 - R11 are free for your use.
Register R0 is often a hardwired Zero in addressing... EG: "L R1,3(R0,R2)" is just actually "L R1,3(R2)"
USING defines one register for OS use (eg: calculating offsets to LTORG)

There is no stack, but R13 is used as a pointer to a 'Save Area' to back up or restore registers during a sub


PSW
The PSW is the 64 bit Program Status Word

IBM Bit 0 1 2-4 5 6 7 8-11 12 13 14 15 16-17 18-19 20 21 22
23
24-31 32 33-63

System Mask






Program Mask

PC
Purpose 0
peR
mask
0
daT
mode
IO
mask
EXtern
-al Mask
PSW
Key
Type
Machine
check
mask
Wait state
Problem
state
Address
Space
control
Condition
Code
Fixed
Point
Overflw
Decimal
Overflw
Exponent
Underflw
Signific
ance
0
Address
-ing
Mode
Instruction
Address
Normal Bit 63 62 59-61 58 57 56 55-52 41 50 49 48 47-46 45-44 43 42 41 40 39-32 31 30-0




Condition Code (CC) bits

There are just 2 CC bits, giving values 0-3. The meaning of these depends on the command just executed. Also note, not all commands alter the CC flags.

Command
CC=0
CC=1
CC=2
CC=3
Maths
=0 <0 >0 Overflow
Compare
Both Equal R1 lower R1 higher unused
Logical ops
=0 !=0 unused unused
















Addressing
Format
Addressing
Mode
Syntax Meaning Example
RR Register R1,R2 R1=Destination Register
R2=Register
LR R0,R1
RX Base
Index
Displacement
R1,D2(X2,B2) R1=Destination Register
D2=Displacement (12 bit - UNSIGNED)
X2=Index Reg (R0=none)
B2=Base (R0=none)
L R3,4(R6,R7)
SI Immediate D1(B1),I2 D1=Displacement (12 bit - UNSIGNED)
B1=Base Register
I2=Immediate (8 bit)
MVI D1(B1),I2
RS Register
Base
Displacement
R1,R3,D2(B2) R3=Register 2 (not all commands use this, eg SLDA)
D2=Displacement (12 bit - UNSIGNED)
B2=Base Register
LM R1,R3,D2(B2)
SLDA R1,D2(B2)
SS #1 Sized
(One Length)
D1(L,B1),D2(B2) D1=Displacement (12 bit - UNSIGNED)
B1=Base Register
L=Length (8 bit - count of bytes-1 (0=1 byte, 2=2 bytes etc))
D2=Displacement (12 bit - UNSIGNED)
B2=Base Register
MVC D1(L,B1),D2(B2)
SS #2 Sized
(Two Lengths)
D1(L1,B1),D2(L2,B2) D1=Displacement (12 bit - UNSIGNED)
L1=Length (4 bit - count of bytes-1 (0=1 byte, 2=2 bytes etc))
B1=Base Register
D2=Displacement (12 bit - UNSIGNED)
L2=Length (4 bit - count of bytes-1 (0=1 byte, 2=2 bytes etc))
B2=Base Register
ZAP D1(L1,B1),D2(L2,B2)

Source column and data type
Punched cards are 80 chars wide.
0........1.........2.........3.........4.........5.........6.........7.........8
12345678901234567890123456789012345678901234567890123456789012345678901234567890
NAME     OP    OPERANDS
         USING *,12                    I am a comment
         WTO  'I am a really really long line, Im so long I need       -
               two lines cos Im so awesome'

Free format is somewhat flexible, but in Fixed format the column position defines the purpose:
Column Purpose
1-8
Name (Label)
10-14
Operation
16+ Operands
16 Continuation of last line
40+ Remarks
71 End of code
72 Continue indication (72) - any char here defines multiline
Next line starts from Column 16

A label cannot be on a line on its own, an operation must come after it!


Notes
CNOP b,w    - Align to byte B of word/doubleword W - eg CNOP 0,4 will align to a 32 bit boundary, CNOP 0,8 will align to 64 bit.
LTORG - Literal pool... Immedates cannot be used, so the assembler automatically puts them here when we use =

CSECT = Control Section - Regular code
DSECT = Dummy Section - Define symbols for a structure with no output code

* in ASM source = current line Address

0.........1.........2.........3.........4.........5.........6.........7.........8
123456789012345678901234567890123456789012345678901234567890123456789012345678900
DOMSG    EQU   *
Will set DOMSG to the current address (like a label)

To Define reg numbers as Rxx use:
R0       EQU   0
R1       EQU   1
R2       EQU   2
and so on

Comment can use a full line starting with a * at char position 1 (Far left)
11111111112222222222333333333344444444445555555555666666666677777777778888888888
12345678901234567890123456789012345678901234567890123456789012345678901234567890
* I am a comment


Labels should be 8 chars max
everything should be UPPERCASE!

Common commands
BALR RetAddr,CallAddr if CallAddr=R0 no jump occurs
USING Label,Reg Define Reg as used for psuedo ops by assembler
DROP releases the register
ORG Set location counter
LTORG Literal org
CNOP limit,boundary Conditional no-op (Spacing)
If PC is greater than {limit} over a {boundary} byte boundary
EG: "CNOP 0,4" will ensure we're 32 bit aligned
MACRO
MEND
Macro definition

USING and BALR
USING Sets a register to be used by the assembler for psuedo-ops (like getting values from LTORG.
We need to set the using register to the current program counter, we do this with BALR ?,0
For Example:
BALR 12,0                   ;12=Get cur address of program counter into Reg 12 ...  0=No actual branch occurs
USING *,12                  ;use R12 for Assembler Psuedo ops and macros for all code (* could be a label if you want multiple base registers, eg USING MyLabel,11)


Save and Return for subs
 (equivalent of stack)

SAVE  (14,12)                    ;Back up ALL Regs 14-15, 0-12 to Save area at (13)
RETURN (14,12)            ;Restore all Regs and return to address in reg 14

Two values are a range, with wrap around if A is higher than B, so (14,12) means 14,15,0,1,2,3,4,5,6,7,8,9,10,11,12  (everything but 13!)

Save area should be 18 words (72 bytes)
The command converts to  "STM   14,12,12(13)"
12(13) skips 12 bytes from the address in 13, This is because the first 3 words are reserved by the OS for the previous save area and other things.


Save Area

Word 1: used by PL/I
Word 2: Used by Trace (Proceeding sub)
Word 3: Used by Trace (Succeeding sub)
Word 4: Reg 14...
Word 5: Reg 15...
Word 6: Reg 0...
Word 7: Reg 1... etc

Values
Character Purpose Notes Example
B Binary
         DC B'11110000'          Value &F0
C Character Character in EBDIC... not ASCII!          DC C'ABC'               Value &C1,&C2,&C3 (EBDIC)
L Length Get the length of a value (or command line) TEST     BR R3                   Two byte command
         DC A(L'TEST)            Defined as 00002
X Hexadecimal
         DC X'FF'                Value 255
= Immediate In LORG pool
Define value at LTORG, and put pointer in code
        L R1,=X'FF'              This will point to the LTORG section
        LTORG                    A Value of 255 will be put here
H Halfword 16 bit Value         DC H'256'               Value &0100
F FullWord 32 bit Value         DC F'256'               Value &00000100
L Literal Fixed Literal  {Repeat}{Type}L{Total}
Type {Type} is defined, padded to {Total}
   and duplicated {Repeat} times
        DC 4CL3'A'              Value &C14040,&C14040,&C14040


WTO and WTOR
    WTOR 'WHAT?',REPLY,12,ECBAD,ROUTCDE=(1,2,9,10,11,12,13,14,15)
Note:    WTOR won't get a reply if data is sent by ncat, as it cannot give a reply before exiting.


EBDIC
Ascii is too boring for the IBM 370 - so it uses EBDIC!... OK actually EBDIC is designed to be convenient for punched cards.


0 1 2 3 4 5 6 7 8 9 A B C D E F
  0x
NUL SOH STX ETX SEL HT RNL DEL GE SPS RPT VT FF CR SO SI
1x DLE DC1 DC2 DC3 RES/ENP NL BS POC CAN EM UBS CU1 IFS IGS IRS IUS/ITB
2x DS SOS FS WUS BYP/INP LF ETB ESC SA SFE SM/SW CSP MFA ENQ ACK BEL
3x

SYN IR PP TRN NBS EOT SBS IT RFF CU3 DC4 NAK
SUB
4x SP








. < ( +
5x &








! $ * ) ;
6x - /







, % _ > ?
7x








` : # @ ' = "
8x
a b c d e f g h i




9x
j k l m n o p q r





Ax
~ s t u v w x y z





Bx ^








[ ]



Cx { A B C D E F G H I





Dx } J K L M N O P Q R





Ex \
S T U V W X Y Z





Fx 0 1 2 3 4 5 6 7 8 9




EO

Zones and Numerics
Unpacked Binary coded decimal on IBM370 uses references to 'Zones' and 'Numerics'.... these sound complex, but simply refer to the high and low nibbles in each byte, For example:
$ZNZNZNZ or %ZZZZNNNN %ZZZZNNNN %ZZZZNNNN %ZZZZNNNN

The 'Numerics' are the numbers (as per EBDIC on the Fx line)... The 'Zones' are the extra nibbles, which should be F/15 for proper EBDIC representation of the digits.

In packed format, the Sign nibble is the rightmost (last) nibble, in Zoned format, the Sign nibble is in the Zone of the last digit.

For example, 'S' represents the Sign nibble in the following 7 digit examples: (Z=zone N=Numeric)
Packed: $NN NN NN NS
Zoned: $ZN ZN ZN ZN ZN ZN SN


Decimal Arithematic

Note: Many Decimal commands will fail if they encounter invalid digit codes. Also note that if the destination length is insufficient to contain the result a failure will also occur (Eg if the destination length is short and the source is long)

Digit
Code
Sign
Code
0 0000 + ascii
1010 (0xA)
1 0001 - ascii
1011 (0xB)
2 0010 + ebdic
1100 (0xC)
3 0011 - ebdic
1101 (0xD)
4 0100 + 1110 (0xE)
5 0101 + 1111 (0xF)
6 0110

7 0111

8 1000

9 1001


SVCs

DEC Macro
DEC Macro
DEC Macro
0 EXCP
XDAP

49 Reserved
97 No macro
1 PRTOV
WAIT
WAITR

50 Reserved
98 PROTECT
2 POST
51 SDUMP
SDUMPX
SNAP
SNAPX

99 DYNALLOC
3 EXIT
52 RESTART
100 No macro
4 GETMAIN (TYPE 1) (get storage below 16 megabytes - with R operand)
53 RELEX
101 QTIP
5 FREEMAIN (TYPE 1)
54 DISABLE
102 AQCTL
6 LINK
LINKX

55 EOV
103 XLATE
7 XCTL
XCTLX

56 ENQ
RESERVE

104 TOPCTL
8 LOAD
57 FREEDBUF
105 IMGLIB
9 DELETE
58 RELBUF
REQBUF

106 Reserved
10 FREEMAIN (free storage below 16 megabytes) GETMAIN (get storage below 16 megabytes - with R operand)
59 OLTEP
107 MODESET
11 TIME
60 ESTAE
STAE

108 Reserved
12 SYNCH
SYNCHX

61 No macro
109 ESPIE
IFAUSAGE
MFDATA(RMF�)
MFSTART(RMF)
MSGDISP
OUTADD
OUTDEL
13 ABEND
62 DETACH
110 Reserved
14 SPIE
63 CHKPT
111 No Macro
15 ERREXCP
64 RDJFCB
112 PGRLSE
16 PURGE
65 Reserved
113 PGANY
PGFIX
PGFREE
PGLOAD
PGOUT
17 RESTORE
66 BTAMTEST
114 EXCPVR
18 BLDL (TYPE D)
FIND (TYPE D)

67 Reserved
115 Reserved
19 OPEN
68 SYNADAF
SYNADRLS

116 CALLDISP
CHNGNTRY
IECTATNR
IECTCHGA
IECTRDTI
RESETPL
20 CLOSE
69 BSP
117 DEBCHK
21 STOW
70 GSERV
118 Reserved
22 OPEN (TYPE = J)
71 ASGNBFR
BUFINQ
RLSEBFR

119 TESTAUTH
23 CLOSE (TYPE = T)
72 No macro
120 FREEMAIN (free storage above 16 megabytes - TYPE 1)
GETMAIN (get storage above 16 megabytes - TYPE 1) operand
24 DEVTYPE
73 SPAR
121 No Macro (for VSAM)
25 TRKBAL
74 DAR
122 EVENTS(TYPE 2)
Extended LINK
Extended LOAD
Extended XCTL
LINK - Extended LINK
LOAD - Extended LOAD
Service Processor Call
STIMERE
VALIDATE
26 CATALOG
INDEX
LOCATE

75 DQUEUE
123 PURGEDQ
27 OBTAIN
76 No macro
124 TPIO
28 Reserved
77 Reserved
125 EVENTS(TYPE 1)
29 SCRATCH
78 LSPACE
126 Reserved
30 RENAME
79 STATUS
127 Reserved
31 FEOV
80 Reserved
128 Reserved
32 REALLOC
81 SETDEV
SETPRT

129 Reserved
33 IOHALT
82 Reserved
130 RACHECK
34 MGCR/MGCRE
QEDIT

83 SMFEWTM,BRANCH=NO
SMFWTM

131 RACINIT
35 WTO
WTOR

84 GRAPHICS
132 RACLIST
36 WTL
85 No macro
133 RACDEF
37 SEGLD
SEGWT

86 ATLAS (obsolete)
134 Reserved
38 Reserved
87 DOM
135 Reserved
39 LABEL
88 Reserved
136 Reserved
40 EXTRACT
89 Reserved
137 ESR(TYPE 6)
41 IDENTIFY
90 Reserved
138 PGSER
42 ATTACH
ATTACHX

91 VOLSTAT
139 CVAF
CVAFDIR
CVAFDSM
CVAFSEQ
CVAFVOL
CVAFVRF
43 CIRB
92 TCBEXCP
143 CIPHER
EMK(TYPE 4)
GENKEY
RETKEY
44 CHAP
93 TGET
TPG
TPUT

144 No macro
45 OVLYBRCH
94 GTDEVSIZ
GTSIZE
GTTERM
STATTN
STAUTOCP
STAUTOLN
STBREAK
STCC
STCLEAR
STCOM
STFSMODE
STLINENO
STSIZE
STTMPMD
STTRAN
TCLEARQ

145 Reserved
46 STIMERM(CANCEL OPTION)
STIMERM(TEST OPTION)
TTIMER

95 SYSEVENT
146 BPESVC
47 STIMER
STIMERM(SET OPTION)

96 STAX


48 DEQ






JCL - Job Control Language

Command Format Example Purpose
JOB //{Jobname} JOB ({Account num}) {operands} {comments} //ASMFCLG JOB  (001),'ASM HELLO WORLD',
//             CLASS=A,MSGCLASS=A,MSGLEVEL=(1,1),REGION=128K
Job
EXEC //{Stepname} EXEC {program} {operands} {comments} //HELLO  EXEC ASMFCLG
Execute
DD //{dd name} DD {operands} {comments} //ASM.SYSUT1 DD UNIT=SYSDA
Data Definition
PROC //{name} PROC {operands} {comments} //DEF PROC STATUS=OLD,LIBRARY=SYSLIB,NUMBER=777777
Procedure
PEND //{name} PEND {comments} //  PEND
Procedure End

/*
//*
/* I am a comment Comment

JOB:
Class = Time slicing class (A=Default) PRTY = Priority
MSGCLASS = Output class (A-z / 0-9)
MSGLEVEL= (statements,messages) .... 1,1 = output all
Region= Memory to allocate in 1024 byte blocks (eg 128K)

DD:

* = Prompt for input (//ddname DD *)
UNIT = device / group containing data set

Server console / Terminal Notes

Server

Start Server:
C: ipl 150
T: enter
T: r 0,u
T: r 1,format,noreq

to stop errors (in console)
OSTAILOR QUIET

To reply to a message:
r <message number>,<response>

Rexx Files:
regina condcode.rexx prt00e.txt smp4p44


Telnet
Ctrl ]
set localecho
enter

F12 to continue read of messages

shutdown: (in telnet)
$p jes2
z eod
quiesce
quit (in console)

Tape to asci?
hetget -a tape/stage1.het stage1.output 1



Warning! Windows Defender may detect 'NCAT' as a 'threat' and delete it!!
Without it the scripts won't be able to send the ASM jobs to the server, so you'll need to restore it if it does.

The version provided is the one which came with Hercules, but obviously use it at your own risk.


Lesson 1 - Getting started with the IBM370
Lets get started with the IBM 360/370!... we'll learn the basics of the CPU and see a sample 'Job file' that we can use to run our program.

Lesson1.asm



A Minimal Hello!
An ASM file cannot be assembled on its own, we need to send a JCL Job file to the server.

The Job commands start //

Here is the minimal Header and Footer to a JCL which will assemble and run our program.
The ASM source code is in the middle of this JOB script

These are only ASM tutorials... We will not go into details of JCL in these tutorials

To build this JCL file, use the Hercules Job option in my devtool scripts


If you use my build scripts, the results of the assembly will be shown in the console window

I've written some tools to scan the PRT00e printer output for possible assembly errors and show them onscreen

The output is then shown on the screen
Lets take a close up look at the ASM file.

First we define R0-R15 as numbers 0-15... we'll use these for our registers to make them clearer.
Here is the first part of our code... We'll discuss all these commands later, but for now look at the following!

See the HELLO text at the left? This is a LABEL - it must be at the far left... there must also be some kind of command after it (like CSECT)

See I AM A COMMENT? it comes after some commands - so is treated as a comment by the assembler. I will usually prefix comments with a semicolon ;  however this is just so notepad++ colors them nicely!
WTO is a macro for 'Write to operator'... here we use it to declare our love of pie!

The second line is very long... These Job files were originally input in to the server via punched cards... Column 76 has a special purpose... any symbol here (in this case a - ) defines a line as continuing on another line.
Here is a full line comment. a * at the far left of a line defines it as a whole line comment.

(A normal comment has to come after a command)

A sample file!
If you want a template to do your own experementation, take a look at Minimal.asm

This file includes a set of examples showing various test we can do, and is the basis of all the lessons in these tutorials.

We won't cover the commands here... as we'll use them all over the following lessons.

This ASM file needs a Job header and footer, and should be assembled with the Hercules Job BasicHeadFoot option in my ASM build scripts. This option attaches a header and footer with various assisting functions and declarations.

Here are the results,

Various Register and Memory dumps were performed as well as character prints were performed.

These will all be used during our tutorials so we can see what the processor is doing.

Lets try our some basic commands!
Here is the start of Lesson 1.asm

This starts with a set of Branch commands to the various examples.

Uncomment one (Move the *; ) to try out the different examples
Lets try out some LOADS with L (L=Load!)
The destination register is on the Left of the comma ... the source is on the right
Here we've loaded 5 'Literals' with =...

=X loads a hexidecmal value
=F loads a 'full' 32 bit value
=C loads a Character value
    WARNING! This is EBDIC not ASCII because IBM hate us and want to make us suffer!
=B loads a Binary value
Here are the results.

Registers R0, R1 R2 and R3 were loaded with the valuese we specified


When we specify a value with = like this , it's not actually stored in the command itself, it's stored somewhere further down at the Literal ORG...(LTORG)

Don't know what that means? don't worry about it yet... we'll cover it later!

We can use R0 as a destination just fine like this, but R0 has a special purpose when used as a source address... in addressing commands it's a 'Hardwired zero'... meaning whatever value R0 has, it will be treated as 0 for some commands.

For now just bear it in mind, as if you're doing your own testing, R0 may not work as expected, so better to use R1-R10 instead.

If we don't use =, then L can be used to load from an address.

Here we defined a 32 bit hex value with DC and gave it the label HEXVAL1

We then loaded from HEXVAL1 into R0




Here is the result


We specified L R0,HEXVAL1 here, but the IBM370 can't specify an address like this, so again the assembler will change this!
We had the command "USING R12,0" at the start of the code, because of that the assembler will use R12 as the current code address with relative offset to the data, and load from that address with the assembled command.
This is all pretty complex, so don't worry about it now, as the assembler does the work for us... but it's important to have some understanding of what goes on 'Behind the scenes'

Actually when we specified a label, the assembler will calculate an offset for us, but actually all Loads actually work from an address in one or more registers and a fixed positive integer offset of up to 255

We can use LA to Load an Address... here we load address 'HexVal2' into R1

Here we load a 32 bit value from the address in register R1 into R2 (with offset 0)

We also load from the the address in register R1, plus immediate value 2 into R3

2(R1) takes the value in register R1, adds 2 to that value, and loads from the resulting address.
R1 is not affected by this calculation.


Here are the results
We can copy a value from one register to another with LR

Load Register will copy from the register on the right of the comma, to the one on the left.

Here we copy R1 into R0, and R3 into R2
Here are the results

Psst... wanna know a secret?
On the IBM370, When a command ends with R, the source is a Register ... otherwise it's usually an address ( offset+ address in Register)
For Example. L loads into a register from an address... LR loads into a register from an register!


Loads of Loads, and stores!

Ok, lets load the address of some test data into R3.

We'll load from the address in R3 + 0 into  R0,

Then we'll store R0 to the address R3 + 6
Here are the results
We've been loading full 32 bit values up until now, but we can also load smaller values.

LH will Load a 16 bit Half word

STH will store a 16 bit half word.

The half is sign extended, meaning the top bit of the half fills the remaining top 16 bits of the register.
Here are the results
On the IBM370, A single 8 bit byte is referred to as a Character.

IC will Insert an 8 bit 'Character' value into a register... it Insert's it into the bottom 8 bits, leaving the top 24 bits of the register unchanged.

STC will Store an 8 bit 'character' from the bottom 8 bits of a register into memory
Here are the results

Do the Math!

Of course, Just loading values isn't much use, so we'll want to do some calculations.

We can add or subtract one register from another with AR (Add Register) or SR (Subtract Register)

As before, the destination is on the left of the comma, and the parameter to be added or subtracted is on the right.
Here are the results

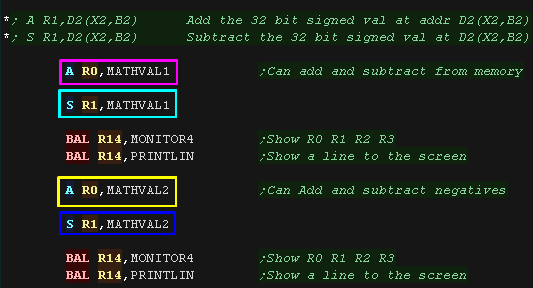

Of course, we can add and subtract 32 bit values from memory too!

A (add) and S (subtract) will do this.

We can also Add and Subtract negative numbers!


Here are the results

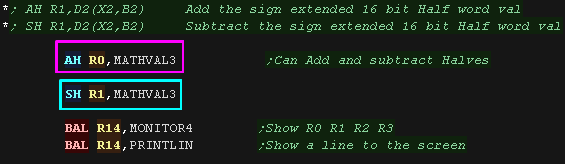

We may want to use 16 bit values in memory, these are sign extended and used as the parameter

AH will Add a 16 bit Half

SH will Subtract a 16 bit Half
Here are the results.

All the Addition and Subtraction commands we've looked at here are designed for signed numbers.

Unsigned numbers are referred to as 'Logical'

AL will Add a Logical (Unsigned) number from memory and SL will Subtract a Logical (unsigned) number from memory
Here is the results
We can use ALR to Add Logically from a Register and SLR to Subtract Logically from a Register

The difference between AR/SR and ALR/SLR is how the Condition Codes CC are set.

Algebraic (Signed) addition and Subtraction with AR and SR will set CC=3 when an 'Overflow' occurs, this is when too big a value has been added/subtracted, and the top bit changed, unintentionally causing the sign to change.
Here are the results.

Notice, the shown CC flags were set by the subtract command.

On the IBM 370, the CC flags are just two bits, so always have a value 0-3
What these values mean depends on the command that was just executed, and some commands don't set the flags at all!
When you want to use the CC flags to make a decision, You have to read the documentation to understand what the CC flags mean depending on the commands you're using


Lesson 2 - Addressing modes
The IBM370 has a small number of powerful addressing modes. We've seen some of them in Lesson 1, but now we'll see them all in full detail.

We'll try out each mode, and see what they can do!

Lesson2.asm


RR: Register Addressing - R1,R2
Register addressing is the simplest there is!

The Source parameter (the one after the comma) is another register.

The Destination is another register.

Here we use LR to load the values from various registers into other registers
Here are the results

Warning! Registers R11-R15 have special purposes in our code!

You can use them as sources (after the comma), but if you change the values they contain, bad things may happen!
You have been warned!!!!

RX: Base Index Displacement - R1,D2(X2,B2)
Whether we know it or not, this is actually the most common addressing mode we'll use!

This takes three values... Two are registers, and the final parameter is an unsigned 12 bit displacement (Number value)

If the 'X2/B2' parameter is R0, then the 'X2/B2' parameter has the value zero, whatever the actual value in R0 - R0 is a hardwired zero in this case

Here we have three examples.

The first uses two zero parameters, so R1 is loaded from the address in R7
The second uses a Displacement of 2, so R1 is loaded from the address in R7+2
The third loads from the address in R6+R7, the displacement is zero


Here are the results
R0 is a hardwired zero, we can specify it via our symbol R0, by number 0, or omit it.

However we must specify the displacement even if it is zero.
Here are the results
Actually, we'll often end up using this addressing mode without knowing it!

When we specify an address for a parameter, the assembler converts this into the form D2(X2,B2)

at the start of our code we had USING *,R12 - This tells the assembler it can use R12 for address calculations. BALR R12,0 loads the current address into R12

Here we use "L R6,HEXVAL2", however the assembler converts this using R12 as a base (from the USING statement), and the offset to HEXVAL2



Here is the result
Here is the line in the assembly listing
We've defined literals with commands like L R0,=X'66606670' before...
These  = literals are also D2(X2,B2) type commands!

The assembler stores the value we specify at LTORG, and puts a reference in the assembled byte code of command
The register was loaded with the value we specified
Here is the resulting assembled code.

Notice the value '66606670' does not appear in the bytes of the command, they were stored at the LTORG location!

There can be more than one LTORG in a program...

In fact you may need them! As the offset to the data is only 12 bit, so if the LTORG is too far away they assembler to calculate an offset.

SI: Immediate - D1(B1),I2
Immediate addressing uses an 8 bit unsigned immediate as the second parameter.

As before, the destination is on the Left of the comma, however this time the destination is a memory address, specified by a register (B1) and a numeric offset (D1)

here we use a new command... MVI - MoVe an Immediate  - Writing an 8 bit immediate value into an destination address

Here we write 3 immediate bytes to memory via 3 MVI commands
Here are the results

RS: Register Base Displacement - R1,R3,D2(B2)
The Destination for this command is a register, but a second register parameter, and a Register+Displacement are also available as parameters.

Here we use LM - Load Multiple

This command loads a sequence of consecutive registers from a memory address, we use it twice here.

We'll look at this command again next lesson
Here are the results
Here we use SLDA (Shift Left Double Algebra) - This shifts the 64 bit value two registers left for Algebra

Algebra means 'signed numbers' - it would be called Arithmetic on other CPUs!

This command is very weird!... 6(R3) looks like an address specification (which it is)  but this command uses the 'address' as a bit count, the value at the 'address' is never used.

BUT WAIT!... Where's the R3 I hear you shout! Well, it's not there, but it does technically exist on this command in the assembled bytes.
The 64 bits in R4+R5 were shifted 8 bits (one nibble)


Why are we mentioning this SLDA command here if it doesn't use the R3 register?
Well it's technically part of the 'RS' format commands. These 'Formats' define the purposed of the bits in the resulting assembled commands.
In this case, although present in the asesembled byte, the 4 'R3 bits' of the SLDA commands bytes have no function.


SS 1: Sized (One Length) - D1(L,B1),D2(B2)
Some commands work with a sequence of bytes, These will use the specification of a single length L in bytes

Here we use MVC - move Characters (Characters are the IBM 370 name for bytes!), we copy 4 bytes to R7 from R7+4

As the same number of bytes are read from the source as written to the destination, the byte parameter is only needed once, it appears before the comma inside the brackets before the register containing the address

We use the MVC command a second time, this time using address labels, we copy 3 bytes this time!


Here are the results!
There be many times we may want to use a fixed value in multiple places in our code, but know it may change later.

For example, suppose we have a block of data, 4 bytes in length we use in various places... What if one day we increase it to 5 bytes?

We don't want to have to search all our code and change lots of 4s to 5s... instead we can define a named Symbol!

A symbol is similar to a label an is defined with EQU... here we define LENDEF = 4, and use it as the length to copy with a MVC command!
Here is the results!

SS 2: Sized (Two Lengths) - D1(L1,B1),D2(L2,B2)

Sometimes one length isn't enough! So why not have 2!??

The IBM370 has a wide variety of 'Decimal' commands... these are for working with Binary Coded Decimal.

We'll look at BCD more later in Lesson 6, but for now we'll try out two lengths with ZAP

ZAP is Zero Add Packed... which copies Packed (two digits per byte) decimal values from one place to another. L2 specifies the length of the source BCD, and L1 specifies the length of the destination.

This can be used for 'Resizing' Decimal values.
We expanded the 4 byte source into an 8 byte destination!


Lesson 3 - Save Areas, Subs and Compares
We've only looked at a few basic commands, and the addressing modes so far.

Now lets dig into the details of Subroutines, Save areas (like a stack) and Compare commands.

Lesson3.asm


Calling out to a sub, and Save Areas!
Like many RISC systems, when calling a subroutine the IBM370 stores the 'return address' in one of it's registers.
BAL will call a sub, storing the return address in the specified register. To return from that sub we Branch to that Register (BR)

Here we run two subs, 'PRINTCH4' - which is part of my testing tools, and MySub1, which is shown here.

We called the subs with BAL R14, so we return with BR R14


Actually, like other commands, when we specify a label, the Assembler is converting it to an offset with the register we specified with USING

Here is the actual BAL command, this time we're calling MYSUB2, with the return address in R9.

This is important, because we've nested the PRINTCH4 routine, calling it with R14 as the return, If we used R14 both times, the second return would fail, as the true return address for MySub2 would have been lost.



There is an alternative command BALR, This execute the subroutine in the second parameter (after the comma)

This command assembles to two bytes, rather than the 4 used by BAL, so it may save code space if you are using many references to the same destination

We want to call a subroutine again, but this time we'll 'protect' R14 by transferring it's value into R9 in the called sub



Here are the results.



OK, so backing up our return register is one problem... but there may be times we need to 'protect' other registers from being changed.

STM (Store Multiple) and LDM (Load Multiple) can do this for us!

We specify a range of registers and a destination (R13)... the registers will be backed up in ascending order by STM, or restored by LDM.

Note, neither of these commands alter the destination (R13)... so we need to use an A and S command to alter it's value...

Here we are protecting R14,R0 and R1, which are restored after the subroutine completes.

Adding and subtracting a total of 72 is safest, as this is a 'full compliment' of registers + a few special system ones... We don't need that much space, but this is what the IBM370 will expect us to do!



R0 and R1 were restored by the STM/LDM command so their value was unchanged after the sub.

R2 was not included in the range R14...R1 used with STM/LDM so it was changed by the subroutine.
As this is something we will often do, the assembler provides SAVE and RETURN macros to help us.

SAVE will back up a sequence of registers. RETURN will restore them and return - Assuming the return address is in  R14


Here is the result... this time we protected ALL the registers!

SAVE and RETURN apply offsets to the data stored and restored based on the default layout of the save area... so it's safest to add and subtract 72, whatever number of registers you're working with.

Calling out for Service!
We can call out to operating system functions using the SVC command.
The most common of these is SVC 35, which is used by the WTO macro (Write to Operator). Here we use WTO to write a message to the screen.

As mentioned, this is a macro, and actually expands to a command, and a block of data,

This second example shown here was based on the expanded code of WTO from the listing file!
The WTO command (SVC 35) Showed both our messages to the screen.

The Count of IBM 370!
There will be a great many times when we want to do a simple loop... like a 'FOR' loop in basic.

The IBM 370 provides the BCT command for simple loops, this decrements a specified register, and branches back to the specified address until the register reaches zero.
Here the loop repeated until R1=0
There are more advanced commands!

BXLE is Branch on indeX Less or Equal

We specify two registers and an address... however the second register reference (R2) is special!

R2 in this example specifies the source PAIR of registers the odd companion to this register (R3) is also used!

R2 is added to R1, and the total is stored in R1,  This value is compared to R3, if the value in R1 is  less or equal (BXLE) to R3 then a branch occurs to address D2(B2).
BXLE repeated until R1 went over R3 (20)... incrementing in stages of R2 (3)
BXH is Branch on indeX Higher. it works in the same way as BXLE, with the condition reversed

It would be expected that R2 would be negative.
BXH repeated while R1 was higher than R3 (1) adding R2 (-3) each time


Conditions!
As there are a limitless combination of parameters, and conditions, You need to try out the conditions yourself to really get an understanding of how they work! So download the lesson and devtools and try it out for yourself!

Actually you should be doing that for all the lessons... but we know people are lazy!!!

If we want to compare two registers - with the intent on running different commands based on the result via a branch - we can use one of the Compare commands!

There are a variety depending on what we want to compare!

If both our parameters are in registers we can use....
CR R1,R2 will Compare the signed R1 to R2
CLR R1,R2 will Compare the Logical (unsigned) R1 to R2

If one of our parameters is in memory we have 3 options.... (One parameter must be in a register!)

C R1,D2(X2,B2) will Compare signed R1 to the signed 32 bit value in memory
CL R1,D2(X2,B2) will Compare unsigned R1 to unsigned 32 bit value in memory
CH R1,D2(X2,B2) will Compare 32bit R1 to the SignExt Half value in memory
The Compare commands will set the 2 bit condition code CC (with a value of 0-3)
Considering the two parameters compared A,B

BH D2(X2,B2) / BHR R1 will Branch on A Higher than B
BL D2(X2,B2) / BLR R1 will Branch on A Lower than B
BE D2(X2,B2) / BER R1 will Branch on A Equal to B
BNH D2(X2,B2) / BNHR R1 will Branch on A Not Higher than B
BNL D2(X2,B2) / BNLR R1 will Branch on A Not Lower than B
BNE D2(X2,B2) / BNER R1 will Branch on A Not Equal to B
In this case we compared R1=0x70000000 to R2=0x80000000

The "CR R1,R2"  compare was performed, and the condition codes caused the branch "BH RESH" to execute... R1 was decided to be Higher than R2!

But why? Isn't "0x80000000" higher than "0x70000000" - Well not if it's a signed number, as 0x80000000 is negative and 0x70000000 is positive!

"CR R1,R2" compares signed numbers, "CLR R1,R2" compares unsigned numbers - in which case R1 was Lower!
With CR R1,R2:


With CLR R1,R2
Actually the Bcc commands are actually psuedo-ops using the more complex BC command.

This takes a 4 bit mask, each bit matches a possible value of CC (0,1,2 or 3 for the left-right bits)
a 1 bit in the mask with a matching CC value causes the branch to occur

CC      M1 mask     Psuedo ops
0       0b1000      BE (=), BZ (=0 / Zeros)
1       0b0100      BL (<), BM (-)
2       0b0010      BH (>), BP (+)
3       0b0001      BO (Ov / Ones)
1,2,3   0b0111      BNE (<>), BNZ (<>0 / NotZeros)
0,2,3   0b1011      BNL (>=), BNP (Not-), BNM (NotMixed)
0,1,3   0b1101      BNH (<=), BNP (Not+)
0,1,2   0b1110      BNO (NotOv / NotOnes)
0,1,2,3 0b1111      B (Branch Always)
        0b0000      NOP (Branch Never)

In this case our mask was '1000', so only CC=0 would cause a branch (branch on equal)
The two values didn't match, so the branch did not occur

However if we change the mask to '1010', the branch will occur if CC=0 or CC=2
with BC B'1000',REST:


with BC B'1010',REST:


More Bccs!
Note: Although the CC flags only contain a value 0-3, The meaning of these values varies depending on the executed command. There are more Bcc commands for use after other mathematical commands.

(after arithmetic)
BP D2(X2,B2) / BPR R1       Branch on Plus
BM D2(X2,B2) / BMR R1       Branch on Minus
BZ D2(X2,B2) / BZR R1       Branch on Zero
BO D2(X2,B2) / BOR R1       Branch on Overflow
BNP D2(X2,B2) / BNPR R1     Branch on Not Plus
BNM D2(X2,B2) / BNMR R1     Branch on Not Minus
BNZ D2(X2,B2) / BNZR R1     Branch on Not Zero
BNO D2(X2,B2) / BNOR R1     Branch on Not Overflow
(after mask test)
BO D2(X2,B2) / BOR R1       Branch if Ones
BM D2(X2,B2) / BMR R1       Branch if Mixed
BZ D2(X2,B2) / BZR R1       Branch if Zero
BNO D2(X2,B2) / BNOR R1     Branch if Not Ones
BNM D2(X2,B2) / BNMR R1     Branch if Not Mixed
BNZ D2(X2,B2) / BNZR R1     Branch if Not Zero

Lesson 4 - Shifts, logicals and more!
We've covered quite a lot, but there's loads more to do!

Lets look at some staples of assembly, Bit Shifts and Logical ops!... we'll also look at a few rarer maths commands we've not got round to yet.

Lesson4.asm


Bit Shifts!

Bit shifts are very useful in assembly! The help us move and isolate a few bits in a parameter, when we want them in a different place, but they also allow us to do quick multiplication or division by two!

Every time we shift the bits left by 1 bit, the value shifted will double.
Every time we shift the bits right by 1 bit, the value shifted will have!

This is a very fast way of multiplying and dividing by powers of 2, But there's a catch!
While there are no concerns shifting left, When we're working with a signed number and we shift to the right, we need to make sure the sign stays the same... If we shift in a 0, our negative value will become positive.

To solve this we have two types of shift:
'Logical shifts' for unsigned numbers, these always shift a bit 0 in when shifting right
'Algebraic shifts' for unsigned numbers, these keep the top bit the same when shifting right. These would be called Arithmetic shifts on other CPUs.
The Shift commands on the IBM370 are a bit irregular in the way they use the parameter.

D2(B2) is a combination of a register value B2 + an immediate D2... however unlike other cases this is NOT an address specification, the result of the calculation is used as a bit shift number!

In this example we're trying 4 shifts:
SLA R1,D2(B2)    Shift R1 Left for Algebra by D2(B2) bits
SRA R1,D2(B2)    Shift R1 Right for Algebra by D2(B2) bits
SLL R1,D2(B2)    Shift R1 Left Logically by D2(B2) bits
SRL R1,D2(B2)    Shift R1 Right Logically by D2(B2) bits
Here are the results... Notice the values in the registers for SLA and SLL are identical as there is no difference on the values in these two commands.

However SLA does do one thing SLL does not! SLL does not change the condition codes CC, however SLA sets them as follows:

Condition Codes:     0: Result =0        1: Result <0        2: Result >0        3: Overflow

Sometimes 32 bits just aren't enough, so for this we have 4 commands!:

SLDA R1,D2(B2)   Shift Left Double 64 bit val R1a:R1b for Algebra
SLDL R1,D2(B2)   Shift Left Double 64 bit val R1a:R1b Logically
SRDA R1,D2(B2)   Shift Right Double 64 bit val R1a:R1b for Algebra
SRDL R1,D2(B2)   Shift Right Double 64 bit val R1a:R1b Logically

These will shift a 64 bit 'Double' pair of registers.

When we specify a destination register like R0, the following register R1 will also be used as part of a 64 bit pair in the format R0:R1.

Here are the results!

Logical Operaions
Logical operations are commands performed on all the bits of a parameter. Each logical Operation will take two parameters and the bits in the result will be the logical result of the two having the operation applied to it.

On the IBM 370 these are defined by a single character N for aNd, O for Or, and X for Xor

aNd Or Xor (eXclusive or)


As usual we have logical operations which work with the destination in a register, and a parameter in memory addressed in the form: Base,Index,Displacement....D2(X2,B2)

Here we use the commands:

N R1,D2(X2,B2)   aNd R1 with the val at addr D2(X2,B2)
O R1,D2(X2,B2)   Or R1 with the val at addr D2(X2,B2)
X R1,D2(X2,B2)   XOR (bitflip) R1 with the val at addr D2(X2,B2)
Here are the results.
We have commands where the parameter and destination are both registers:

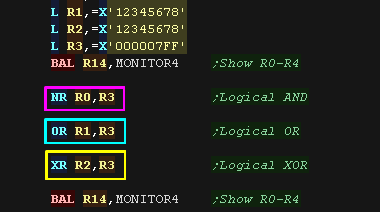

NR R1,R2    aNd the register R1 with register R2
OR R1,R2    Or the Register R1 with register R2
XR R1,R2    eXclusive or the register R1 with register R2
Here are the results.
If we want to perform operations on a destination Byte in memory we can use the immediate commands!

These take an unsigned 8 bit immediate byte parameter, and a destination memory address in the format Displacement+Base D1(B1)

Here we use the commands:
NI D1(B1),l2    aNd the byte at D1(B1) with 8 bit unsigned Imm I2
OI D1(B1),l2    Or the byte at D1(B1) with 8 bit unsigned Imm I2
XI D1(B1),l2    Xor the byte at D1(B1) with 8 bit unsigned Imm I2
Here are the results, 3 bytes in memory were changed.
We have an even more advanced set of commands.
These will use a sequence of bytes from an address as the parameter, and a second set as the mask in the format  D1(L,B1),D2(B2) ... D1(B1) is the Destination, D2(B2) is the parameter, L is the byte count.

Here we use the following commands:
NC D1(L,B1),D2(B2)  aNd L Characters (bytes) from addr
OC D1(L,B1),D2(B2)  Or L Characters (bytes) from addr
XC D1(L,B1),D2(B2)  Xor or L Characters (bytes) from addr
Here are the results

Testing Times
On many systems we will use the AND logical op to test bits.

The IBM370 has a more powerful command... TM - Test Mask.

This takes an 8 bit immediate and memory address. The 8 bits at the destination are tested with the mask and the CC flags are set based on the result:

Here we use TM three times, with 3 different masks on the same destination
We tested the destination 0b11110000 with 3 masks,
here are the results!

Loading and signs
Tjere may be times we want to flip the sign of a value.

'Flipping the sign' in assembly can be called the 'two's complement'... and the IBM370 has a command LCR to flip the sign of a register!

Here we use it to repeatedly flip values!
We loaded the negative of R2 and R3, then we repeatedly flipped R0 and R1 from a positive to a negative
If we don't know the sign of the source, but we want a negative result we can use LNR.

This will load negative version of a signed value, whatever its sign was before.
Here are the results...  R0 and R1 were loaded with negative numbers from R2 and R3
If we want a positive value (an Absolute) we can use LPR

This will load a positive version of a signed value
Here are the results...  R0 and R1 were loaded with positive numbers from R2 and R3


Lesson 5 - Power Maths: Mult Div Exec and Test!
We've now looked at all the really 'must have' commands, But the IBM370 still has more to impress us!

Lets check our some of the 'Power commands' we can use in our programs!

Lesson5.asm


Multiplication
The IBM 370 has many multiplication commands, They work with either 16 or 32 bit source parameters, and give a 32 bit or 64 bit result.

Where the result is 64 bit, we only specify one register, and the following register is used for the second half of the 64 bit value (We'll call these registers R1a:R1b)
For example, if we use R0 with a 64 bit calculation R0 will be the High half, and R1 will be the Low half of the 64 bit result.

Here we use the command M R1,D2(X2,B2), it gives a 64 bit result of multiplying two 32 bit parameters
This will multiply 32 bit val in R1b (register after R1) by the 32 bit val at addr D2(X2,B2) stores the 64 bit result into R1a:R1b.

Effectively performing R1a:R1b=R1b*D2(X2,B2)


Here we multiplied 0x66663333 by 0x1000, the result was stored in R0:R1
This time we'll multiply a 32 bit register by a 16 bit signed half in memory.

We use MH R1,D2(X2,B2)
This will multiply 32 bit R1 by the sign extended 16 bit Half word val at addr D2(X2,B2) store in R1

We try the command Twice!
Here are the results!
If we don't want to work with memory, we can also use just registers to calculate a 64 bit result of multiplying two 32 bit registers.

Here we use MR R1,R2
This will multiply 32 bit R1b by the 32 bit R2 and stores the 64 bit result into R1a:R1b
Effectively R1a:R1b=R1b*R2
Here are the results

Division
Division commands store a two part result of division.
The first part is the integer result of the division... the second part is any remainder.

The first command we'll look at is 'D R1,D2(X2,B2)'... this will Divide a 64 bit register pair, by a 32 bit value at an address... The Result is stored in the second register of the pair, the remainder in the first.

Effectively The result R1b=R1a:R1b/D2(X2,B2)
The remainder R1a=R1a:R1b MOD D2(X2,B2)
Here is the result, The 64 bit register value was divided by the 32 bit memory value

The result was in the second register (R1)... the remainder was in the first (R0)
We also have a register divide command. DR R1,R2

This divides a 64 bit value in a register pair by a second single 32 bit register.

The result is stored as a 32 bit integer result and remainder in the pair of registers.

Effectively R1b=R1a:R1b/R2
R1a=R1a:R1b MOD R2 .
Here is the result, The 64 bit register value was divided by the 32 bit register value

The result was in the second register (R1)... the remainder was in the first (R0)


There aren't so many options when it comes to division as there were with multiplication.

Also remember shifting left and right halves and doubles numbers! Often bit shifting commands will be faster if you only need to work in powers of two.


Execute!
The EXecute command will run a single command at a specified address... this is not a call or jump, execution continues after the EX command.

We also specify a register... R0 is a hardwired zero, so if we use EX R0,addr, then nothing else will happen, but if we specify a register other than R0, then the bits in that register are 'ORed' with the command at the address.

The command at the address never changes, only the resulting command... What effect the change will have is a little tricky, as it depends on the syntax of the command... so you'll have to check the IBM370 documentation!

here we execute "MYCOM", which has the command "A R0,16"... adding 16 to R0, but we 'patch' this via two other values for R3, which has the effect of changing the register added to!

Here are the results!

Note the command at MyCom will not have been changed by any of these commands

Translate for conversion
There may be times we want to perform a conversion of a sequence of bytes via a lookup table.
This could be useful for converting Ebdic to ascii, or preparing binary data for visual representation.

TRanslate takes two addresses and one length in the form TR D1(L,B1),D2(B2). the address before the comma is the data to convert, the second parameter is the 'lookup table'
Each if the L bytes in the destination D1(B1) is used as an offset in the lookup table D2(B2) and the replacement is placed back in D1(B1)

Here we use TR to convert 8 bytes of MyData using MyLUT
Here are the results... The 8 bytes were translated by the LUT.
TRanslate and Test is an odd command!

Like TRanslate it uses a lookup table, however this command does not change data. It scans for a byte with a Lookup table entry of something other than 0.

Even stranger, whatever registers we use, TRT uses R1 and R2 to store some of the results!

If byte from the LUT!=0 a few things happen:
1. 24 LSBits of R1 set to the addr of the byte in src data
2. 8 LSbits of R2 are set to the nonzero LUT value
3. Execution then stops, even if L bytes were not processed.

This command also sets the Condition Codes as follows :
  0: All L bytes processed, all lookup bytes zero
  1: Not all L bytes processed, A nonzero lookup byte was found
  2: All L bytes processed, last byte was nonzero
  3: Unused

Here we use TRT several times

First we scan for a single value with R3, Then we use R1 as the position, and repeatedly scan for values (as R1 is updated by TRT)
We found '03' the first time with R3 as the offset, Then the first time with R1 as the offset, and a second time.

We then found '04'.... finally we couldn't find another nonzero, so CC was set to 0



Lesson 6 - Decimal Mode!
The Z80 had a decimal command, the 6502 had a decimal flag... The IBM370 has a whole set of decimal extensions! (Decimal is called Binary Coded Decimal on other systems)

If we want to show things quickly and conveniently 'Decimal' will help us out! Lets learn how, and see some digits!

Lesson6.asm



Remember! The IBM370 uses EBDIC for character numbering when showing decimal to the screen, not the usual ASCII!... don't like it? Tough luck!

IBM didn't just use EBDIC to make our lives miserable, it's designed for easy entry on a punched card... AND to make our lives miserable!

Know your numbers!
A nibble will contain a digit from 0-9, the remaining values A-F (10-15) are used for sign or have no purpose.

Note: Many Decimal commands will fail if they encounter invalid digit codes. Also note that if the destination length is insufficient to contain the result a failure will also occur (Eg if the destination length is short and the source is long)

Digit
Code
Sign
Code
0 0000 + ascii
1010 (0xA)
1 0001 - ascii
1011 (0xB)
2 0010 + ebdic
1100 (0xC)
3 0011 - ebdic
1101 (0xD)
4 0100 + 1110 (0xE)
5 0101 + 1111 (0xF)
6 0110

7 0111

8 1000

9 1001


Zones and Numerics
Unpacked Binary coded decimal on IBM370 uses references to 'Zones' and 'Numerics'.... these sound complex, but simply refer to the high and low nibbles in each byte, For example:
$ZNZNZNZ or %ZZZZNNNN %ZZZZNNNN %ZZZZNNNN %ZZZZNNNN

The 'Numerics' are the numbers (as per EBDIC on the Fx line)... The 'Zones' are the extra nibbles, which should be F/15 for proper EBDIC representation of the digits.

In packed format, the Sign nibble is the rightmost (last) nibble, in Zoned format, the Sign nibble is in the Zone of the last digit.

For example, 'S' represents the Sign nibble in the following 7 digit examples: (Z=zone N=Numeric)
Packed: $NN NN NN NS
Zoned: $ZN ZN ZN ZN ZN ZN SN


Decimal Arithematic
Our normal 32 bit numbers are referred to as 'Binary'... the Binary Coded Decimal values are called 'Decimal'

We can convert a Decimal value in memory to a binary value in a register with CVB R1,D2(X2,B2)

This will convert an 8 byte decimal value into a 32 bit binary.

We can convert a 'normal' binary value in a register to a 'Decimal' with CVD R1,D2(X2,B2)

Here we convert the values in the registers back to to
We converted the source Binary into decimal, then back into binary.

Packing your decimal bags!
The typical format for decimal on the IBM370 is 'Packed' decimal, this is where each nibble contains a digit, so one byte contains two digits.

Unpacked decimal only stores a digit in the bottom nibble, this bottom nibble is known as the 'Numeric'. the top nibble is known as the 'Zone'... if the top nibble contains '0xF' (15), then the unpacked digit will be a valid EBDIC character for display.

UNPK D1(L1,B1),D2(L2,B2) will UNPacK decimal, converting Packed -> Zoned

We need to specify a packed source D2(B2) and it's length L2, and a destination D1(B1) and the destination length L1

We can Pack the data from zoned to packed data with PACK D1(L1,B1),D2(L2,B2)
Here is the result.

We took the Source data, Unpacked it, then Packed it again!


Numerics and Zones
As mentioned before, When working with Unpacked data the top nibble is referred to as the 'Zone' (0xF for EBDIC) and the bottom nibble is referred to as the 'Numeric'

We have special commands to move with these 'Numerics' and 'Zones', but in fact they work with any data, not just valid Decimal.

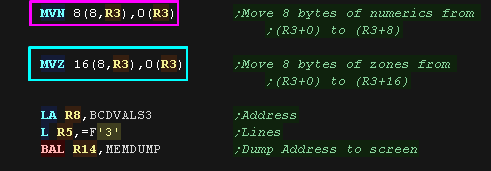

Here we use MVN D1(L,B1),D2(B2) to MoVe the Numerics (The bottom nibbles)

We then use MVZ D1(L,B1),D2(B2) to MoVe the Zones (The top nibbles)
Here is the result

We took our source data, copied the numerics, then copied the zones.

Decimal Maths
The IBM370 has a selection of common maths commands!

The most simple of these are AP (Add Packed) and SP (Subtract Packed)
We added our test value of +1, then we subtracted it!
We also have a compare command! CP - Compare Packed

This sets the Condition Codes as follows:
   0: Both equal
   1: D1(B1) lower
   2: D1(B1) higher
   3: Unused

here we use CP and AP to form a loop waiting for 0(8,R3) to equal +2
+1 was added, until the value reached +2

If addition and subtraction  doesn't impress you we also have Multiplication of Packed values with

MP D1(L1,B1),D2(L2,B2)  - Multiply Packed!

Note:  L2 (the parameter length) must me shorter than L1 (the destination length)
The two values were multiplied, and the result stored!

We also have Division with:
DP D1(L1,B1),D2(L2,B2) - Divide Packed decimal

Once again L2 must be 8 or less & shorter than L1, and like the other divide commands we get a integer division result, and a remainder... unfortunately the format of the data stored at D1(B1) is a little confusing!
The last L2 bytes in the L1 bytes at D1(B1) are remainder, The rest are the integer result (the top /first bytes at that address)
Here is the result.

The Parameters were divided
L2 was 4, so the last 4 bytes are the remainder.
L1 was 8, so the first 4 bytes are the result (L1-L2 = 8-4)

Weird maths!
There are a few 'rarer' Decimal maths commands, which are worth knowing about, but you are less likey to need.

The first is ZAP... it's nothing to do with rayguns, it stands for Zero Add Packed
ZAP D1(L1,B1),D2(L2,B2)

Actually it doesn't have much to do with addition either. it 'Adds' to zero, and the effect is 'Resizing' a packed decimal sequence from L2 bytes to L1 bytes
The 4 byte decimal was 'expanded' into 8 bytes.
If we want to bit shift we can use MVO - Move with offset:
MVO D1(L1,B1),D2(L2,B2)

This copies a sequence from the source to the  destination, shifting it 4 bits left.

We run this command twice!
We copied the source to the first destination, shifted left by 4.

We then copied that again, shifted left another 4!



Edit - For text formatting

The IBM370 was a server designed for processing data, such as financial information, and it comes with two of the most complex and powerful commands I've seen in any assembling language... ED - EDit and EDMK -EDit and MarK

These commands are used for formatting numbers for tabular display, like accounting sheets.

Consider the following lines:
    ____123.45_______12,349.01 CR
    __1,000.00 CR____12,349.01___
    ______0.01 CR_________0.00___
    _dd,dsd.dd CRf   dd,dsd.dd CR

Here we have three lines of tabulated accounting data, Symbols like commas are hidden by replacing them with spaces at first (Shown as underscores here for clarity), but need to be shown once the non-zero digits start.

The final digits, the '0.00' need to be shown whatever the total though. For accounting we will want to show some kind of negative marker, a minus - or in this case a 'CR' for credit.

This is exactly what the Edit command does. The Edit command uses a 'pattern' (Shown as the grey line in the example') which acts as a 'mask' for the result (similar to the PRINT USING command in basic). For clarity in the example show 'd' 's', and 'f' have been used, but these should be hex codes 0x20, 0x21 and 0x22 in the actual pattern, however all other characters are as they were provided to the code.

We provide the Pattern at address D1(B1), the Pattern length in L and a source packed Decimal sequence at D2(B2). The Pattern at D1(B1) is overwritten with the formatted sequence. The Decimal at D2(B2) is unchanged.

The first character in the sequence is the 'Spacer character' This will be used to replace zero digits in the rest of the sequence. The spacer is also used to replace sign characters when the sign of the number is positive, commas and anything else not to be shown.

Character

In example

purpose

0x20 (DS)

d

Digit Select - Placeholder to be replaced with number

0x21 (SOS)

s

Significance Start - Beginning of always shown digits (0.00)

0x22 (FS)

f

Field Separator - Start a new field

Anything
else


Printed as is before decimals,
hidden for positive numbers after 0x21 SOS



Here we are defining a sequence of lines with a mask as follows:
_dd,dsd.dd-f_dd,dsd.dd-
This allocates enough width for 2 columns (fields)

Here are the decimal values we will 'format'
Each of our lines is 23 bytes.

Here we process two lines (2 values per line) using EDit.
Here are the results.

We showed  X'0011100D', X'0000001C', X'0000123C', X'1234567D'. Where the ',' or '-' wasn't needed it was replaced by _ (as it was the first char in the pattern)

the 'Significance start' 's' 0x21 defined the start of the 'must show' digits

the 'field separator' 'f' 0x22 in the middle of the sequence defined the start of the next value

EDMK - EDit and MarK does the same but had an extra function. If a non zero value is inserted as a character into a 0x20 DS field which otherwise would have been blank (before the 0x21 SOS field), Then the address of that first character is stored.

Whatever registers we specified with the command, the main CPU register R1 is used to store the address of the character. Only the bottom 24 bits of R1 are changed, the top 8 bits of R1 are unchanged.

This is intended for later adding a movable currency symbol ($ etc) before the first digit. For Example:
    ___$123.45______
    _$1,000.00 CR___


As this command only tracks the first character inserted, it will not be effective if two fields are contained in the same line, as only the position for the first character would be held in R1.

We're going to define a sub 'DoSym' which will insert a symbol IF EDMK got a character (we'll clear R1 to zero before running EDMK)
here we use EDMK Three times
Here are the results.

Notice the second line has no $/Y - This is because all the digits were after the significance start 0x21 (s), R1 is only loaded with the address of the first INSERTED CHARACTER at a 'd' 0x20 field




View Options
Default Dark
Simple (Hide this menu)
Print Mode (white background)

Top Menu
***Main Menu***
Youtube channel
Patreon
Introduction to Assembly (Basics for absolute beginners)
Amazon Affiliate Link
Forum
AkuSprite Editor
ChibiTracker
Dec/Bin/Hex/Oct/Ascii Table

Alt Tech
Archive.org
Bitchute
Odysee
Rumble
DailyMotion
Please note: I wlll upload more content to these alt platforms based on the views they bring in

Z80 Content
***Z80 Tutorial List***
Learn Z80 Assembly (2021)
Learn Z80 Assembly (old)
Hello World
Simple Samples
Advanced Series
Multiplatform Series
Platform Specific Series
ChibiAkumas Series
Grime Z80
Z80 Downloads
Z80 Cheatsheet
Sources.7z
DevTools kit
Z80 Platforms
Amstrad CPC
Elan Enterprise
Gameboy & Gameboy Color
Master System & GameGear
MSX & MSX2
Sam Coupe
TI-83
ZX Spectrum
Spectrum NEXT
Camputers Lynx

6502 Content
***6502 Tutorial List***
Learn 6502 Assembly
Advanced Series
Platform Specific Series
Hello World Series
Simple Samples
Grime 6502
6502 Downloads
6502 Cheatsheet
Sources.7z
DevTools kit
6502 Platforms
Apple IIe
Atari 800 and 5200
Atari Lynx
BBC Micro
Commodore 64
Commodore PET
Commander x16
Super Nintendo (SNES)
Nintendo NES / Famicom
PC Engine (Turbografx-16)
Vic 20

68000 Content
***68000 Tutorial List***
Learn 68000 Assembly
Hello World Series
Platform Specific Series
Simple Samples
Grime 68000
68000 Downloads
68000 Cheatsheet
Sources.7z
DevTools kit
68000 Platforms
Amiga 500
Atari ST
Neo Geo
Sega Genesis / Mega Drive
Sinclair QL
X68000 (Sharp x68k)

8086 Content
Learn 8086 Assembly
Platform Specific Series
Hello World Series
Simple Samples
8086 Downloads
8086 Cheatsheet
Sources.7z
DevTools kit
8086 Platforms
Wonderswan
MsDos

ARM Content
Learn ARM Assembly
Learn ARM Thumb Assembly
Platform Specific Series
Hello World
Simple Samples
ARM Downloads
ARM Cheatsheet
Sources.7z
DevTools kit
ARM Platforms
Gameboy Advance
Nintendo DS
Risc Os

Risc-V Content
Learn Risc-V Assembly
Risc-V Downloads
Risc-V Cheatsheet
Sources.7z
DevTools kit

MIPS Content
Learn Risc-V Assembly
Platform Specific Series
Hello World
Simple Samples
MIPS Downloads
MIPS Cheatsheet
Sources.7z
DevTools kit
MIPS Platforms
Playstation
N64

PDP-11 Content
Learn PDP-11 Assembly
Platform Specific Series
Simple Samples
PDP-11 Downloads
PDP-11 Cheatsheet
Sources.7z
DevTools kit
PDP-11 Platforms
PDP-11
UKNC

TMS9900 Content
Learn TMS9900 Assembly
Platform Specific Series
Hello World
TMS9900 Downloads
TMS9900 Cheatsheet
Sources.7z
DevTools kit
TMS9900 Platforms
Ti 99

6809 Content
Learn 6809 Assembly
Learn 6309 Assembly
Platform Specific Series
Hello World Series
Simple Samples
6809 Downloads
6809/6309 Cheatsheet
Sources.7z
DevTools kit
6809 Platforms
Dragon 32/Tandy Coco
Fujitsu FM7
TRS-80 Coco 3
Vectrex

65816 Content
Learn 65816 Assembly
Hello World
Simple Samples
65816 Downloads
65816 Cheatsheet
Sources.7z
DevTools kit
65816 Platforms
SNES

eZ80 Content
Learn eZ80 Assembly
Platform Specific Series
eZ80 Downloads
eZ80 Cheatsheet
Sources.7z
DevTools kit
eZ80 Platforms
Ti84 PCE

IBM370 Content
Learn IBM370 Assembly
Simple Samples
IBM370 Downloads
IBM370 Cheatsheet
Sources.7z
DevTools kit

Super-H Content
Learn SH2 Assembly
Hello World Series
Simple Samples
SH2 Downloads
SH2 Cheatsheet
Sources.7z
DevTools kit
SH2 Platforms
32x
Saturn

PowerPC Content
Learn PowerPC Assembly
Hello World Series
Simple Samples
PowerPC Downloads
PowerPC Cheatsheet
Sources.7z
DevTools kit
PowerPC Platforms
Gamecube

Work in Progress
ChibiAndroids

Misc bits
Ruby programming









Buy my Assembly programming book
on Amazon in Print or Kindle!


Buy my Assembly programming book



Available worldwide!
Search 'ChibiAkumas' on
your local Amazon website!
Click here for more info!



































































































Buy my Assembly programming book
on Amazon in Print or Kindle!


Buy my Assembly programming book



Available worldwide!
Search 'ChibiAkumas' on
your local Amazon website!
Click here for more info!



































































































Buy my Assembly programming book
on Amazon in Print or Kindle!


Buy my Assembly programming book



Available worldwide!
Search 'ChibiAkumas' on
your local Amazon website!
Click here for more info!

























































































































































Buy my Assembly programming book
on Amazon in Print or Kindle!


Buy my Assembly programming book



Available worldwide!
Search 'ChibiAkumas' on
your local Amazon website!
Click here for more info!


























































































Buy my Assembly programming book
on Amazon in Print or Kindle!


Buy my Assembly programming book



Available worldwide!
Search 'ChibiAkumas' on
your local Amazon website!
Click here for more info!

























































































































































Buy my Assembly programming book
on Amazon in Print or Kindle!


Buy my Assembly programming book



Available worldwide!
Search 'ChibiAkumas' on
your local Amazon website!
Click here for more info!



































































































Buy my Assembly programming book
on Amazon in Print or Kindle!


Buy my Assembly programming book



Available worldwide!
Search 'ChibiAkumas' on
your local Amazon website!
Click here for more info!


























































































Buy my Assembly programming book
on Amazon in Print or Kindle!


Buy my Assembly programming book



Available worldwide!
Search 'ChibiAkumas' on
your local Amazon website!
Click here for more info!


























































































Buy my Assembly programming book
on Amazon in Print or Kindle!


Buy my Assembly programming book



Available worldwide!
Search 'ChibiAkumas' on
your local Amazon website!
Click here for more info!
