Simple Hello World Example on the 6809

Introduction to the Hello World Series...
In this series we'll be looking at the basics of coding,compiling and running

Lesson H1 - Hello World on the Dragon / Tandy CoCo
Lets take a look at the Dragon - We'll make Hello world work on a cartridge, and run it on an emulator

DGN_HelloWorld_Advanced.asm


Beginning a Cartridge
We're going to start a cartridge...
Our Cartridge runs from address $C000 - $FFFF (16 k)

We define two bytes of Ram as being the X,Y position of the cursor,

At the start of the cartridge we need to set a usable stack pointer ($8000)
We also zero the printing cursor position
We're going to print a 255 terminated string to the screen..

Note, the string contains a lower case character (The dragon can't do them, but we'll fix it)
Our cartridge needs to be 'padded' to 16k - so we put a couple of bytes at the end...

Note, the 'Reset' address doesn't actually seem to get used on the running machine. (it's overridden by system defaults)
Here is the result!

Tje Dragon starts in text mode, so we don't need to do any complex screen set up...

Of course the Dragon has graphics modes too, but we'll look at them another time!

Printing a character to the screen

The Dragon screen uses 1 byte per character
Screen memory starts at $0400, and the screen is 32 bytes wide, so the formula for a screen character is:

Address= $0400 + (Ypos * 32) + Xpos

But the character map is a little odd!... it has no lowercase characters, instead having inverted characters... we'll have to work around that
When we want to print a character to screen, we need to calculate the memory address of the 'cursor'...
We multiply Y by 32 by repeated bit shifts.

Once we've worked out the memory address, we need to 'Fix' the ASCII character, converting it to the Dragon charset.

If a character is lower case, we need to subtract 32 converting it to the uppercase equivalent

if the character is a symbol (! to ]  etc) we need to add 64 - otherwise these will appear 'inverted'

Finally, we move the cursor along, and if we've reached the end of a line, we perform a newline command
Newline just zeros the Xpos, and increases the Ypos

Using our PrintChar to print a string

We're going to write a simple string printing routine, it prints a 255 terminated string.

All we do is read in bytes from Y until we get to a 255, at which point we return... we print all other characters with our PrintChar routine
This will show 'Hello World' to the screen

Building the ROM

We build our rom with Macro AS (ASW)

Here is the script I use...
We specify the source asm (%BuildFile% in my batch file)
We specify our CPU type as 6809
We specify to output a listing file - this is handy for debugging.
We tell the assembler to define a symbol 'BuildDGN' (Some of my multiplatform programs use this)
We output a Build file prog.bld - but this needs converting before we can use it as a rom!


Once the build completes - we need to convert it to a binary


We can then start the ROM cartridge with our emulator Xroar:



Monitor Tools
As an added bonus we can include the 'Monitor Tools' we developed in the multiplatform series.

These allow us to show the registers or parts of the Ram for testing and debugging purposes

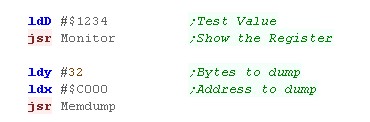

This gives us 2 commands...
Monitor shows all the registers,
RamDump will show Y bytes from address X to the screen
We can see the result onscreen.
We've got some basic screen routines, a memory dump and register dump... we can use these as 'building blocks' for making and testing something better.


Lesson H2 - Hello World on the Fujitsu FM7
Lets take a look at the FM-7, we'll learn how to make a 'hello world' message, build a 2B0 binary file, and add it to a disk
Finally we'll start the disk on our emulator.

FM7_HelloWorld.asm

Beginning a 2B0 binary file

First we define 'Padding Off' - this stops the assembler adding zero bytes to our code to align to 16 bit boundaries.

We need to put a header on our file... the file starts at address $2000 - but our 21 byte header precedes that.

The header defines the header pf the program, the size of the program, and the address to load the program in memory.

We calculate the size from the  ProgramEnd and ProgramStart labels.

We're also defining the symbol 'PrintChar' which points to the Basic print routine.

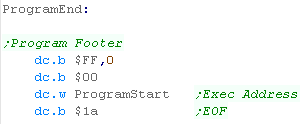

As well as our header, we need a footer after our program.

Here we're using a basic call to draw characters, but later we'll learn more about the graphics hardware...
Actually the FM7 has TWO processors... the MAIN one for our program, and the SUB one which handles graphics.
The main 6809 that runs our program CANNOT access graphics ram!

Using PrintChar to print a string

We're going to write a simple string printing routine, it prints a 255 terminated string.

All we do is read in bytes from Y until we get to a 255, at which point we return... we print all other characters with the PrintChar routine
If we want to start a new line, we just print CHAR 13 followed by CHAR 10
We use this function to print our message to the screen
This will show 'Hello World' to the screen

Building the Disk

We build our file with Macro AS (ASW)

Here is the script I use...
We specify the source asm (%BuildFile% in my batch file)
We specify our CPU type as 6809
We specify to output a listing file - this is handy for debugging.
We tell the assembler to define a symbol 'BuildFM7' (Some of my multiplatform programs use this)
We output a Build file prog.bld - but this needs converting before we can use it as a binary.


Once the build completes - we need to convert it to a binary


We need to put the file on a disk... we have a pre-formatted blank disk with a 'startup program'...
We use FMWrite from the 'Ftools' package to put our 2B0 file on the disk:


We can then start the ROM cartridge with our emulator XM7:


Startup basic file

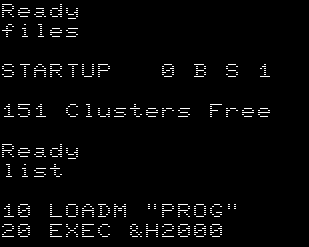

We've used a pre-configured startup disk, this contains a basic program which will load our binary, and run the address $2000

This disk is used as the basis for our built program.
If you decide to load your program at a different address you'll need to change this basic file..

for some reason the 'EXEC' address in the 2B0 doesn't seem to help much!

Monitor Tools
As an added bonus we can include the 'Monitor Tools' we developed in the multiplatform series.

These allow us to show the registers or parts of the Ram for testing and debugging purposes
This gives us 2 commands...
Monitor shows all the registers,
RamDump will show Y bytes from address X to the screen

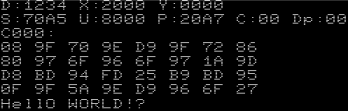

We can see the result onscreen.

Lesson H3 - Hello World on the Vectrex
It's time for the Vectrex...
Unlike most systems, on the vectrex we have to redraw our text every redraw of the screen - we'll use a firmware function to do this.

VTX_HelloWorld.asm

Beginning a Cartridge

We're going to start a cartridge... Our Cartridge runs from address $0000...
We turn Padding off - this stops the assembler adding 0 bytes where we don't want them.

The cartridge needs a header, with some fixed bytes, and title and music for the boot screen

The Vectrex uses two direct pages... $C8 points the DP to RAM... $D0 points to hardware registers, which is needed for some
The title we specify will be shown on the boot splash screen

The emulator provided with these tutorials is configured to use a modified ROM
The Author of these tutorials modified the rom to skip the splash screens - this allows the game to start immediately, and saves time when debugging.

Printing a character to the screen

The vectrex draws in lines not pixels, but the firmware provides a limited font we can use via it's firmware functions.
First we need to define the size of the text we'll use... this is defined by two bytes at $C82A

We'll use $FC38 - a small font, but we could also use $F848 for large text.
We're going to use function $F38C  (TXTPOS) to draw to the screen... this can draw multiple strings in one go.

Before we draw to the screen we'll call $F192 (FRWAIT) - this wait's for a new screeen redraw.

Then we use $F38C - but this needs the DP to point to the hardware registers at $D0

We have to draw the screen every frame, otherwise it will instantly disappear from the screen
The hello string needs to start with a Y,X drawing location.

Each line must end $80, and the last string must end $00
The message is shown on screen


Building the ROM

We build our rom with Macro AS (ASW)

Here is the script I use...
We specify the source asm (%BuildFile% in my batch file)
We specify our CPU type as 6809
We specify to output a listing file - this is handy for debugging.
We tell the assembler to define a symbol 'BuildDGN' (Some of my multiplatform programs use this)
We output a Build file prog.bld - but this needs converting before we can use it as a rom!


Once the build completes - we need to convert it to a binary

We can then start the ROM cartridge with our emulator vecxgl... we specify a custom Bios Rom (myrom.dat) - this rom has been modified to skip the startup splash screen... we also specify a screen size of 1000

Simulating a raster screen

We can use the multiline printing routine to simulate a screen similar to our other systems.

We'll define some bytes for this:
TextRam is the text string which makes up all the text 'onscreen'
The current Y pos (in screen co-ords) this is needed for defining each screen line's position.
The Datapos is a pointer to the byte of TextRam the next char needs to be inserted
We define a Newline and CLS functions.

We need to make sure the text string ends with $80,$0

Each new line needs to contain an Y and X position... Y is taken from the TextDataY, X is always -128
The PrintChar routine adds another character to the end of the string,

Because the Vectrex has no lowercase characters we check for these, and convert them to uppercase.
We still need to draw the screen during our main loop, however we'll provide a single function to do this - drawing the TextRam buffer to the screen, and waiting for Vblank

Monitor Tools
As an added bonus we can include the 'Monitor Tools' we developed in the multiplatform series.

These allow us to show the registers or parts of the Ram for testing and debugging purposes
This gives us 2 commands...
Monitor shows all the registers,
RamDump will show Y bytes from address X to the screen
We can see the result onscreen.

Of course the Vectrex isn't really designed for raster fonts... it's designed for VECTORS!

We'll learn how to draw vectors another time!


Lesson H4 - Hello World on the Dragon / Tandy CoCo
Last time we took a look at printing characters in text mode.

This time we'll take a look at a bitmap function which will use a 1bpp font, and convert it to 2bpp (4 color) graphics mode.

DGN_HelloWorld_Bitmap.asm


Beginning a Cartridge
We're going to start a cartridge...
Our Cartridge runs from address $C000 - $FFFF (16 k)

We define two bytes of Ram as being the X,Y position of the cursor,
We also define two bytes of temporary zero page storage (z_b and z_c)

At the start of the cartridge we need to set a usable stack pointer ($8000)
We also zero the printing cursor position
We're going to print a 255 terminated string to the screen..
Our cartridge needs to be 'padded' to 16k - so we put a couple of bytes at the end...

Note, the 'Reset' address doesn't actually seem to get used on the running machine. (it's overridden by system defaults)
Here is the result!

Tje Dragon starts in text mode, so we don't need to do any complex screen set up...

Of course the Dragon has graphics modes too, but we'll look at them another time!

Printing a character to the screen

We're using our own bitmap font... it's 2 color (1bpp) but we're going to 'convert' it for the 4 color screen.
We include the font as binary data in our file.
We're using Pmode 3 screen

This gives a 128x192 screen with 4 colors.
When we want to print a character to screen, we need to calculate the memory address of the 'cursor'...
We multiply Y by 32 by repeated bit shifts.

Once we've worked out the memory address, we need to 'Fix' the ASCII character, converting it to the Dragon charset.

If a character is lower case, we need to subtract 32 converting it to the uppercase equivalent

if the character is a symbol (! to ]  etc) we need to add 64 - otherwise these will appear 'inverted'

Finally, we move the cursor along, and if we've reached the end of a line, we perform a newline command
Newline just zeros the Xpos, and increases the Ypos

Using our PrintChar to print a string

We're going to write a simple string printing routine, it prints a 255 terminated string.

All we do is read in bytes from Y until we get to a 255, at which point we return... we print all other characters with our PrintChar routine
This will show 'Hello World' to the screen

Building the ROM

We build our rom with Macro AS (ASW)

Here is the script I use...
We specify the source asm (%BuildFile% in my batch file)
We specify our CPU type as 6809
We specify to output a listing file - this is handy for debugging.
We tell the assembler to define a symbol 'BuildDGN' (Some of my multiplatform programs use this)
We output a Build file prog.bld - but this needs converting before we can use it as a rom!


Once the build completes - we need to convert it to a binary


We can then start the ROM cartridge with our emulator Xroar:



Monitor Tools
As an added bonus we can include the 'Monitor Tools' we developed in the multiplatform series.

These allow us to show the registers or parts of the Ram for testing and debugging purposes
This gives us 2 commands...
Monitor shows all the registers,
RamDump will show Y bytes from address X to the screen
We can see the result onscreen.
We've got some basic screen routines, a memory dump and register dump... we can use these as 'building blocks' for making and testing something better.


Lesson H5 - Hello World on the Tandy CoCo Disk BIN file
Lets take a look at the Coco - We'll make Hello world file in BIN format, load it onto a disk image, and run it on an emulator

CCO_HelloWorld_BIN.asm

The BIN file format

The Dandy COCO disk system uses binary files for program code.
These have a 5 byte header before the data, and a 5 byte footer.

The header contains a $00 byte, the length of the data itself (without header/footer) and the Load address the data should be loaded to in ram

The footer contains a $FF byte, an unused word ($0000) and the Execution address we want to run, which in this case is the start of our program.


Our emulator can load the BIN file directly, but we can create a basic loader

we use 'LOADM "PROG.BIN" to load our program 'PROG' in memory, then EXEC to run it.

We save this - in this case as 'GO.BAS'
We're going to print a 255 terminated string to the screen..
Our cartridge needs to be 'padded' to 16k - so we put a couple of bytes at the end...

Note, the 'Reset' address doesn't actually seem to get used on the running machine. (it's overridden by system defaults)
Here is the result!

Hello world is shown in the top corner - though we didn't clear the screen!

Note: This example is for the COCO only

je Dragon uses a different BIN and Disk format, and we won't be covering it here!


You'll need appropriate ROM files for the disk system so the emulator will work.

For legal reasons we cannot provide them here.... soz!

Printing a character to the screen

The Dragon screen uses 1 byte per character
Screen memory starts at $0400, and the screen is 32 bytes wide, so the formula for a screen character is:

Address= $0400 + (Ypos * 32) + Xpos

But the character map is a little odd!... it has no lowercase characters, instead having inverted characters... we'll have to work around that
When we want to print a character to screen, we need to calculate the memory address of the 'cursor'...
We multiply Y by 32 by repeated bit shifts.

Once we've worked out the memory address, we need to 'Fix' the ASCII character, converting it to the Dragon charset.

If a character is lower case, we need to subtract 32 converting it to the uppercase equivalent

if the character is a symbol (! to ]  etc) we need to add 64 - otherwise these will appear 'inverted'

Finally, we move the cursor along, and if we've reached the end of a line, we perform a newline command
Newline just zeros the Xpos, and increases the Ypos

Using our PrintChar to print a string

We're going to write a simple string printing routine, it prints a 255 terminated string.

All we do is read in bytes from Y until we get to a 255, at which point we return... we print all other characters with our PrintChar routine
This will show 'Hello World' to the screen

Building the BIN

We build our BIN with Macro AS (ASW)

Here is the script I use...
We specify the source asm (%BuildFile% in my batch file)
We specify our CPU type as 6809
We specify to output a listing file - this is handy for debugging.
We tell the assembler to define a symbol 'BuildDGN' (Some of my multiplatform programs use this)
We output a Build file prog.bld - but this needs converting before we can use it as a rom!



Once the build completes - we need to convert it to a binary


We can then start the BIN directly with our emulator Xroar, we're also specifying we want to emulate a COCO



Creating a disk image

We uses the 'ToolShed' tools to work with disks

DECB works with disk images

We can create a blank disk with "decb dskini blank.dsk"
We'll start from a copy of our blank disk each time... if we save our "GO.BAS" to this master image, we will be able to start our program quickly each time

We use DECB COPY to transfer our BIN file to the disk image
We can load our disk image on start up with XROAR


Monitor Tools

As an added bonus we can include the 'Monitor Tools' we developed in the multiplatform series.

These allow us to show the registers or parts of the Ram for testing and debugging purposes
This gives us 2 commands...
Monitor shows all the registers,
RamDump will show Y bytes from address X to the screen
We can see the result onscreen.
We've got some basic screen routines, a memory dump and register dump... we can use these as 'building blocks' for making and testing something better.





View Options
Default Dark
Simple (Hide this menu)
Print Mode (white background)

Top Menu
***Main Menu***
Youtube channel
Patreon
Introduction to Assembly (Basics for absolute beginners)
Email Newsletter
Amazon Affiliate Link
Forum
AkuSprite Editor
ChibiTracker
Dec/Bin/Hex/Oct/Ascii Table

Alt Tech
Archive.org
Bitchute
Odysee
Rumble
DailyMotion
Please note: I wlll upload more content to these alt platforms based on the views they bring in

Z80 Content
***Z80 Tutorial List***
Learn Z80 Assembly (2021)
Learn Z80 Assembly (old)
Hello World
Advanced Series
Multiplatform Series
Platform Specific Series
ChibiAkumas Series
Grime Z80
Z80 Downloads
Z80 Cheatsheet
Sources.7z
DevTools kit
Z80 Platforms
Amstrad CPC
Elan Enterprise
Gameboy & Gameboy Color
Master System & GameGear
MSX & MSX2
Sam Coupe
TI-83
ZX Spectrum
Spectrum NEXT
Camputers Lynx

6502 Content
***6502 Tutorial List***
Learn 6502 Assembly
Advanced Series
Platform Specific Series
Hello World Series
Grime 6502
6502 Downloads
6502 Cheatsheet
Sources.7z
DevTools kit
6502 Platforms
Apple IIe
Atari 800 and 5200
Atari Lynx
BBC Micro
Commodore 64
Commodore PET
Commander x16
Super Nintendo (SNES)
Nintendo NES / Famicom
PC Engine (Turbografx-16)
Vic 20

68000 Content
***68000 Tutorial List***
Learn 68000 Assembly
Hello World Series
Platform Specific Series
Grime 68000
68000 Downloads
68000 Cheatsheet
Sources.7z
DevTools kit
68000 Platforms
Amiga 500
Atari ST
Neo Geo
Sega Genesis / Mega Drive
Sinclair QL
X68000 (Sharp x68k)

8086 Content
Learn 8086 Assembly
Platform Specific Series
Hello World Series
8086 Downloads
8086 Cheatsheet
Sources.7z
DevTools kit
8086 Platforms
Wonderswan
MsDos

ARM Content
Learn ARM Assembly
Learn ARM Thumb Assembly
Platform Specific Series
ARM Downloads
ARM Cheatsheet
Sources.7z
DevTools kit
ARM Platforms
Gameboy Advance
Nintendo DS
Risc Os

Risc-V Content
Learn Risc-V Assembly
Risc-V Downloads
Risc-V Cheatsheet
Sources.7z
DevTools kit

MIPS Content
Learn Risc-V Assembly
MIPS Downloads
MIPS Cheatsheet
Sources.7z
DevTools kit
N64 Platforms
Playstation
N64

PDP-11 Content
Learn PDP-11 Assembly
PDP-11 Downloads
PDP-11 Cheatsheet
Sources.7z
DevTools kit

TMS9900 Content
Learn TMS9900 Assembly
TMS9900 Downloads
TMS9900 Cheatsheet
Sources.7z
DevTools kit
TMS9900 Platforms
Ti 99

6809 Content
Learn 6809 Assembly
Learn 6309 Assembly
6809 Downloads
6809/6309 Cheatsheet
Sources.7z
DevTools kit
6809 Platforms
Dragon 32/Tandy Coco
Fujitsu FM7
TRS-80 Coco 3
Vectrex

65816 Content
Learn 65816 Assembly
65816 Downloads
65816 Cheatsheet
Sources.7z
DevTools kit
65816 Platforms
SNES

eZ80 Content
Learn eZ80 Assembly
eZ80 Downloads
eZ80 Cheatsheet
Sources.7z
DevTools kit
eZ80 Platforms
Ti84 PCE

IBM370 Content
Learn IBM370 Assembly
IBM370 Downloads
IBM370 Cheatsheet
Sources.7z
DevTools kit

Super-H Content
Learn SH2 Assembly
SH2 Downloads
SH2 Cheatsheet
Sources.7z
DevTools kit
SH2 Platforms
32x
Saturn

PowerPC Content
Learn PowerPC Assembly
PowerPC Downloads
PowerPC Cheatsheet
Sources.7z
DevTools kit
PowerPC Platforms
Gamecube

Work in Progress
ChibiAndroids

Misc bits
Ruby programming









Buy my Assembly programming book
on Amazon in Print or Kindle!


Buy my Assembly programming book



Available worldwide!
Search 'ChibiAkumas' on
your local Amazon website!
Click here for more info!


























































































Buy my Assembly programming book
on Amazon in Print or Kindle!


Buy my Assembly programming book



Available worldwide!
Search 'ChibiAkumas' on
your local Amazon website!
Click here for more info!
