Z80 Assembly programming for the ZX81!

The ZX81 was one of the earliest affordable home computers, and was actually the first computer my family owned!

While my only memories of it was it crashing while loading hangman, we can have some fun learning about this early Z80 computer!

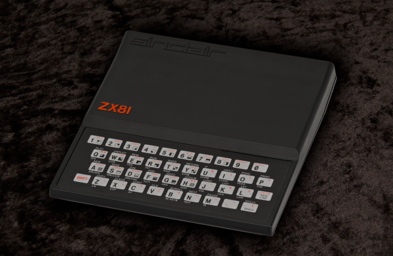

ZX81
Cpu Z80 3.25mhz
Ram 1k (!) 32k upgradable
Vram ha! (768 bytes)
Resolution 32x24 characters
Charset 64 characters + Inverse
Colors Black and white
Sound None



The Keyboard Layout


Reading the keyboard

We can read in a row of the keyboard by setting BC to the correct value and using IN A,(C)... the resulting byte will contain a 0 if the key is pressed, 1 if it is not.


C= &FE
B=... 0 1 2 3 4
%11111110 SHIFT Z X C V
%11111101 A S D F G
%11111011 Q W E R T
%11110111 1 2 3 4 5
%11101111 0 9 8 7 6
%11011111 P O I U Y
%10111111 ENTR L K J H
%01111111 SPC DEL    M       N       B

The Character Map

Below are the visible characters... Note that basic commands and other functions are also 'characters', the most important is &76 (118) which is NewLine - we need this for the 'Display File' (Screen Ram)


Ports

Port
Purpose
FB Printer Write
FB R Printer Read
FD W Disable NMI (used for FAST mode)
rrFE R Init Vertical Retrace / Casette out LOW / Read Keyboard row rr
FE W Enable NMI (used for SLOW mode)
FF W Terminate Vertical Retrace and Restart LineCTR / Cassette out HIGH

Memory Map

From To Purpose
0000   3FFF   ROM
4000 4008 System Vars
4009 407C P-File save area
407D 43FF 1K RAM
4400 FFFF 16K+ Ram upgrade

VRAM is at the end of your basic program, it's address is stored at &400C
