In this series we'll take a look at a variety of basic tasks that you may need to look at when you're starting out with programming these classic systems...

In each case the source-code will be a single file with no Includes to make things easy if you're using a different assembler (though some may include a binary.)


Lesson S1 - Simple Bitmap Drawing on the x68000
Let's look at the basics, Lets learn how to draw a simple bitmap onto the screen... effectively a software sprite.

We'll be able to use this to make a simple game!

x68_Bitmap.asm


Supervisor mode on XM7

On WinX68kHighSpeed we can access hardware registers in USER mode, but emulator XM6 is more strict.

We will need to enter 'Supervisor mode'... we do this with DOSCALL function _SUPER ($FF20)...

Thanks to viewer 'Mugsy' for this info

Starting our program

First we need to turn on our screen - we need to send a variety of settings to hardware registers.

Here we're setting up a 256x256 screen mode - if you want to see the full range of settings see here
Next we need to set up our palette... we need 4 colors, defined by $E82000+

Each color is defined by 5 bits.

We're now set up... so we can work on drawing our sprite!

Drawing an 8x8 sprite

We're going to show a 8x8 smiley face to the screen... we've set up the screen in 16 color mode - meaning each pixel uses one nibble

The face is in color 1, the mouth is color 2, and the eyes are color 3
When we want to show the bitmap to the screen, we need to calculate the destination memory address for the screen...

We use GetScreenPos... which takes an XY position in D1,D2

The forumula for the screen address is $C00000+(Ypos * 1024) + Xpos
We use GetScreenPos to select the Video memory address in A6 - we'll then transfer our sprite into VRAM

Each line of our smiley is 8 pixels... and each color is 1 nibble, so there's 2 pixels per byte - however the way screen RAM maps to the address space, we actually need to write each nibble to a different byte of video ram.

To achieve this we read in from the source A0 once, copy the top nibble to the first destination address in A6 - increase by one byte, then copy the bottom nibble.
The result can be seen here!

Drawing a larger bitmap

We're going to draw a 48x48 sprite, we'll include it as a binary file.
We now need an extra loop for the number of '8 pixel Y strips'...

After we've done each strip, we reset our start position, and add $280 (the bytes used by one 8x320 pixel Y-strip)

We repeat until the image has been drawn.
Our Chibiko Character will be shown on the screen.
My AkuSprite Editor can export files in the correct format for this tutorial - it's free and open source.
(included in the sources.7z)
Use Save Raw Bitmap from the x68000 menu


We've used bitmap graphics here to draw our 'sprite'... it's easier for a beginner getting started to just work with bitmaps.
if you want to use actual hardware sprites take a look here

Lesson S2 - Simple Bitmap Drawing on the Atari ST
Let's look at the basics on the Atari, Lets learn how to draw a simple bitmap onto the screen... effectively a software sprite.


AST_Bitmap.asm


Starting our program

First we're going to need to kick the system into supervisor mode via a system call.
Next we need to define the screen mode, we're going to use 320x00 @ 16 colors.

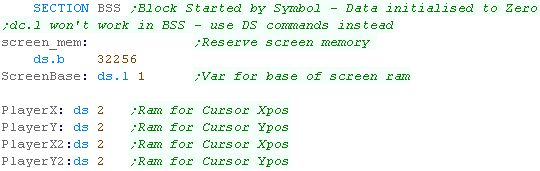

We've got some memory in the 'BSS' section - this will be the bytes of our screen, we need to propare this address, and transfer it to the screen registers at $ff8200

We've defined our screen ram in the BSS section
Once we've set up our screen, we need to set up our palette we use address $ff8240+ to set up 4 colors.

We're ready to draw our sprite.

Drawing an 8x8 sprite

We need to define our smiley.

Atari ST memory is split into bitplane WORDS... each consecutive 2 bytes of screen ram will be a separate bitplane 0,1,2,3... our sprite is only 8 pixels wide, so the second byte of the bitplane word is unused.

Our smiley's face is in color 1, and the mouth and eyes are color 2 and 3
When we want to show the bitmap to the screen, we need to calculate the destination memory address for the screen...

We use GetScreenPos... which takes an XY position in D1,D2

The formula for the screen address is Screenbase+(Ypos * 160) + (XposWithBottomBitRemoved *4) + BottomBitOfXpos
Our sprite is 8 pixels wide... each bitplane uses 2 bytes and contains 16 pixels... we write each of the 4 bitplanes to offsets 0,2,4,6 to the X position

We then move down a line by adding 160
Our Smiley will be shown to the screen

Drawing a larger bitmap

We're going to try a larger sprite this time... We'll show our Chibiko mascot as a 48 x 48 sprite
We'll include this as a file.
We need to change our drawing routine - this time we need to write pairs of bytes to screen... to do this we'll treat odd and even bytes differently
Here is the result!
My AkuSprite Editor can export files in the correct format for this tutorial - it's free and open source. (included in the sources.7z)

Use Save Raw Bitmap from the Atari ST menu
If we preferred we could write in words, which would be faster, but less flexible for different widths

most systems work in 8 pixel bitplanes - not the Atari ST's 16 pixels - so we've written this code to work with the format used by other systems.


Lesson S3 -Simple Bitmap Drawing on the the Amiga
Lets take a look at the Amiga, We'll learn how to draw a small 8x8 smiley on the screen, and a larger bitmap.

Lets learn how to get it done.

AMI_Bitmap.asm

Starting our program

We're going to define some symbols for graphics settings we need to control.
We need to call to the operating system and request a video screen... this will set up as screen for us to use

We need some variables and pointer space (shown below)
We need to set up the graphics hardware with the format of our screen.
We now need to turn on the interrupts to start drawing the screen.

Unfortunately we've not done enough to actually draw the screen!
Our screen needs some space for the actual data, and pointers returned by the OS
We now need to define a 'copperlist' - this is a set of byte 'commands' to the graphics hardware that define the screen.

Here we're defining a 16 color 320x200 screen
We also need to define the screen colors.

Although we're only using 16, we're defining all 32 in this definition.
We need to wait for Vblank (When the screen is not drawing) then apply our new 'copperlist' - this draws the screen in the correct colors.
Here is the routine to wait for Vblank.

Drawing an 8x8 sprite

We're going to define our Sprite... the screen is in 'bitplanes' - so our 16 color (4 bit per pixel) 8 pixel wide smiley needs 4 bytes per line (each contains a single bit of the line)...

The face is in color 1... the smile is color 2, the eyes are color 3... colors 4+ are unused ... so bitplanes 2 and 3 contain zeros
We're going to use a function called 'GetScreenPos' to calculate the address of an XY screenpos.

The screen is split into bitplanes - all 320x200 pixels of bit 0 come first - then all the bits 1,2,3

For this reason, our formula to calculate memory address is:

Addr = ScreenMem + (Ypos * 40) + Xpos
When we want to draw our smiley, we need to calculate the memory position.

Next we write 4 consecutive bytes to each of the 4 bitplanes (40*200 bytes apart in the screen memory)

We move down 40 bytes to move to the next line, and repeat until all 8 lines are drawn
Here is the result

Drawing a larger bitmap

We're going to draw our 48x48 mascot this time.
We'll load the bitmap file with an INCBIN statement
We're going to need to change our bitmap drawing routine - we'll need to write a byte for each 8 pixels along the sprite.
Here is the result.
My AkuSprite Editor can export files in the correct format for this tutorial - it's free and open source. (included in the sources.7z)

Use Save Raw Bitmap from the Amiga menu
The Copperlist is quite complex, but it's needed to do everything with the amiga screen...

Unfortunately the 'Chibiko' mascot isn't in the right colors, but we can fix that... see here


Lesson S4 - Simple Bitmap Drawing on the Sinclair QL
Lets take a look at the Sinclair QL - we'll use 8 color mode to draw a simple smiley, and our mascot

SQL_Bitmap.asm


Drawing an 8x8 sprite

First we need to turn on our 8 color screen - we do this with a write of %1000 to $18063
We need a bitmap to show

Here is our 8 color smiley...4 pixels are defined by a pair of bytes

Alternating bits in the first byte are Green and Flashing
Alternating bits in the second byte are Red and Blue
We're going to need a function to calculate a screen memory address from an XY position

As the screen is 128 bytes wide, each 4 pixels takes 2 bytes , and our screen starts at $20000 our formula is:

Address = $20000 + (Ypos * 128) + (Xpos * 2)
We need to calculate the screen address, then write 4 bytes (one Long - 8 pixels) per line
We repeat until the sprite is done.
Here is the result!


Drawing a larger sprite

We need to rewrite our drawing routine... as each cluster of 4 pixels has 2 bytes, we'll copy in WORDS,

We also need to divide our width by 4 for the horizontal drawing loop.
Our chibiko character will be shown onscreen.
My AkuSprite Editor can export files in the correct format for this tutorial - it's free and open source. (included in the sources.7z)

Use Raw 8 color Bitmap from the Sinclair QL menu

We've looked at 8 color mode here... but the QL also supports a higher resolution 4 color mode.

But I won't tell you about it!... What you really want to? well... ok - see this lesson here!


Lesson S5 - Simple Tilemap Drawing on the Sega Genesis
We're looking at various systems, and learning how to draw bitmaps..

Being a tile based system, the Genesis doesn't work the same, but we can split our graphics up into 8x8 tiles, and draw them in almost the same way.

GEN_Bitmap.asm


This tutorial will extend the 'Hello World' Episode... We're not going to cover the code that is the same as that episode..

If you've not seen the Hello World episode, see it here.

Drawing a single 8x8 tile

We're going to need to define a tile...
The pattern format uses a single nibble for each color...

Here we're defining a 8x8 smiley... it's face is color 1, the mouth is color 2, the eyes are color 3
We're going to create a function called 'DefineTiles'
This will take a source Ram address... a Length in bytes... and a destination VRAM address
The Define Tiles function will select the destination VRAM address with the 'Prepare Vram' function - then all the pattern bytes will be trans
The layout of the Vram address we want to write to has to be 'converted' moving the bits around into the correct layout before we send it to VDP_CTRL
Ok, we need to calculate the X,Y position of the Tile in the tilemap , and we need to remap that Vram address for the weird format of the Vram select

The Tilemap 'Scroll-A' starts at $C000 - and each entry in the tilemap is 2 bytes... The tilemap is 64 tiles wide, so to calculate the Vram address our formula is:

VRAM Addr = $C000 + (Ypos * 64* 2) + (Xpos *2)
Here is the result

Drawing a larger image

This time we'll draw a larger image ... our Chibiko mascot image is 48x48... we'll have to split it up into 8x8 patterns, and rebuild it in the tilemap

We'll include the source image from a file.
(The format is the same as the MSX2)
We use 'Define tiles' as before to transfer the pattern data to Vram
We're going to use a new function called 'Fill Area With Tiles'... this fills a grid area with consecutively numbered tiles.
At the start of each row, We calculate the Vram Destination for the XY pos...

We then write consecutive bytepairs for that line

We then move down a line and repeat until the tile grid is drawn.
Here is the result!
My AkuSprite Editor can export files in the correct format for this tutorial - it's free and open source. (included in the sources.7z)

Use Save Raw Bitmap from the Genesis Menu


Lesson S6 - Simple Tilemap Drawing on the NeoGeo
We're looking at various systems, and learning how to draw bitmaps..

Being a tile based system, the Neo Geo doesn't work the same, but we can split our graphics up into 8x8 tiles, and draw them in almost the same way.

NEO_Bitmap.asm


This tutorial assumes you've watched the 'Hello World' Episode, and adds to that lesson..

Not watched it yet? Don't worry, there's still hope for you... just check it out after you read through this episode - ok?

Drawing a single 8x8 tile

We're going to need some sprite data for our test - the format for DIX tiles is rather annoying!

We can export valid data with the Save Fix Bitmap option of AkuSprite Editor, it's included in the sources.7z - it's free and open source
We need to export our files, and include them in the XML file for our game:

Let's start our program - first we need to set up the palette, and reset the layers and sprites.

We also need to 'kick the watchdog' to stop the CPU resetting itself.
First we'll calculate the address of the tile we want to draw... We need to make sure the address of the FIX data we put into the XML
We need to calculate the address in the Fix map of the tile we want to change.

We'll then use this address to set the visible tile.
We select the Vram address with $3C0000 - then write data to that address with $3C0002

Once we've written the tile number, we're done, but we need to stop the 'crash protection' resetting the CPU - so we have to 'kick the watchdog' to keep the system running
The Smiley tile will be shown onscreen

Drawing a larger image

This time we're going to draw a 48x48 image, we'll do this by splitting it into 8x8 tiles (AkuSprite Editor does this for us)

We'll define a function called 'Fill Area With Tiles' - this will draw a grid of consecutively numbered tiles on the fix layer
FillAreaWithTiles will calculate the memory address of the start of a row, then write all the consecutive tile numbers to that row.

This procedure will repeat until all the rows are drawn.
Here is the result
This example used the FIX map, Want to use sprites? Check out this tutorial!

Lesson S7 - Simple Joystick reading on the x68000
We've learned how to draw a small sprite to the screen... lets extend that example by adding joystick control, so we can move the sprite around.

x68_Joystick.asm


The Code

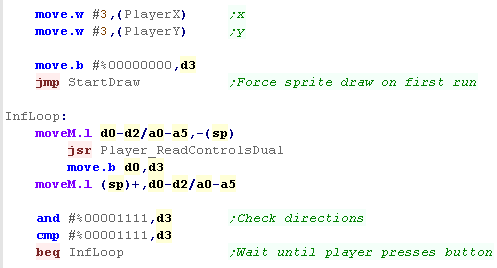

We're going to need some variables for our player position... one for the Current position, and one for the previous position (so we can remove the old sprite)
We're going to need some sprite routineWe're going to need two versions of our previous sprite drawing routine - one which draws our smiley, and one that blanks out the previous sprite...

One will draw our player - the smiley from the previous example

The other will clear our player, drawing a blank area.
Our code will only redraw the character when the joystick is pressed... so the first run we need to FORCE a draw - otherwise we wouldn't be able to see our character!

When we want to test the joystick we read from $E9A001 ... the bottom 4 bits are the UDLR directions - if a bit is 1 the button is not pressed, if it's 0 the direction is pressed down
OK, our joystick has been pressed...

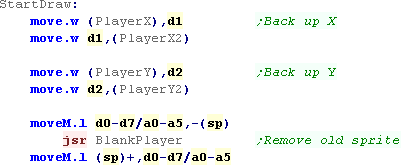

We need to back up the current position of the player...

We're going to run our 'blank player' function... this is just our previous sprite drawing routine, with an all zero sprite
We need to process the joystick.

We need to test each bit of the value of D3 with the joystick directions...

D2 is the Y axis... D1 is the X axis
Ok, we've moved our player, but we need to check if the sprite will go off the screen

If the player Xpos is greater than 256-7 then it's off the screen (our character is 8 bytes wide)... also if it's below 0 that's a problem, but the value will have wrapped round to 65535, so we don't need to check this!

If the player Ypos is over 240-7 we're also over the screen...

If the position fails any of these boundary checks, we need to reset the position from the backup
We need to draw the sprite in the new position... finally we wait a bit and repeat
We can now move our smiley around the screen
If you want to use more joystick buttons, take a look at this tutorial Here... the x68k can use MSX type or Genesis type joypads!


Lesson S8 - Simple Joystick Reading on the Atari ST
Lets extend our Atari Example, and use traps and vectors to read in the Joystick


AST_Joystick.asm


The Code

We're going to need some variables for our player position... one for the Current position, and one for the previous position (so we can remove the old sprite)
To operate the joysticks we need to add a handler to the Atari OS.

We need to get the 'IKBD' vector table, then put our 'Joystick Handler' into it

This makes 'Joystick Handler' run every time a button is pressed - we then store the data from the joysticks in two bytes of 'Joystick Data' for later.

The format of the read in byte is %F----RLDU
We're going to need two versions of our previous sprite drawing routine - one which draws our smiley, and one that blanks out the previous sprite.

We're going to need some sprite routines...

One will draw our player - the smiley from the previous example

The other will clear our player, drawing a blank area.
Our code will only redraw the character when the joystick is pressed... so the first run we need to FORCE a draw - otherwise we wouldn't be able to see our character!

When we want to test the joystick we read from the second byte at 'JoystickData' (This is set by the interrupt handler we defined in the vector table earlier...The format of the read in byte is %F---RLDU
OK, our joystick has been pressed...

We need to back up the current position of the player...

We're going to run our 'blank player' function... this is just our previous sprite drawing routine, with an all zero sprite
We need to process the joystick.

We need to test each bit of the value of D3 with the joystick directions...

D2 is the Y axis... D1 is the X axis
Ok, we've moved our player, but we need to check if the sprite will go off the screen

If the player Xpos is greater than 40 then it's off the screen (our character is 8 bytes wide)... also if it's below 0 that's a problem, but the value will have wrapped round to 65535, so we don't need to check this!

If the player Ypos is over 200-7 we're also over the screen...

If the position fails any of these boundary checks, we need to reset the position from the backup
We need to draw the sprite in the new position... finally we wait a bit and repeat
We can now move our smiley around the screen

Want more details on the Joystick of the Atari ST? Check out This tutorial here

Lesson S9 -Simple Joystick Reading on the the Amiga
Let's extend that previous example, and add joystick control to the Amiga sample.

We'll need to process the data of the joystick port (mouse port) and convert it to digital directions

AMI_Joystick.asm

The Code

We're going to need some variables for our player position... one for the Current position, and one for the previous position (so we can remove the old sprite)
To read in from the joystick in port 2 we need to read in the Axis from $dff00c, and the fire buttons from $bfe001

There are 4 direction bits, but we have to XOR two bits together for the up and down directions.

Right is bit 1
Left is bit 9
Down is bit 1 XORed with 0
UP is bit 9 XORed with 8
We're going to need two versions of our previous sprite drawing routine - one which draws our smiley, and one that blanks out the previous sprite.

We're going to need some sprite routines...

One will draw our player - the smiley from the previous example

The other will clear our player, drawing a blank area.
Our code will only redraw the character when the joystick is pressed... so the first run we need to FORCE a draw - otherwise we wouldn't be able to see our character!

When we want to test the joystick we read from the second byte at 'JoystickData' (This is set by the interrupt handler we defined in the vector table earlier...The format of the read in byte is %F----RLDU
OK, our joystick has been pressed...

We need to back up the current position of the player...

We're going to run our 'blank player' function... this is just our previous sprite drawing routine, with an all zero sprite
We need to process the joystick.

We need to test each bit of the value of D3 with the joystick directions...

D2 is the Y axis... D1 is the X axis
Ok, we've moved our player, but we need to check if the sprite will go off the screen

If the player Xpos is greater than 40 then it's off the screen (our character is 8 bytes wide)... also if it's below 0 that's a problem, but the value will have wrapped round to 65535, so we don't need to check this!

If the player Ypos is over 200-7 we're also over the screen...

If the position fails any of these boundary checks, we need to reset the position from the backup
We need to draw the sprite in the new position... finally we wait a bit and repeat
We can now move our smiley around the screen

This example builds on the Hello World and bitmap examples... See Hello world here.


Lesson S10 - Direction key reading on the Sinclair QL
The Sinclair QL uses keypresses for it's 'joystick'

Lets learn how to use the OS TRAP to read from the keyboard, and move our previous smiley around

SQL_Joystick.asm


The Code
We're going to need some variables for our player position... one for the Current position, and one for the previous position (so we can remove the old sprite)
Reading in from the keyboard has to be done with Trap 1 - command 9
We have to send a sequence of command bytes - with byte 6 as the row number - the trap will return a byte in D1 - with a bit high when the button is down.

We're going to use Trap #1 to read in from the keyboard, we need to pass the command we just defined to the trap in A3
The function will return the bits of the line in D1
We're going to use the bits in D1 to build up the result in D0

We're going to move each of the controls in one by one,
We'll use D2 as a temporary copy of the the register, and shift the required key bit into D0
We'll use Escape as a start button and Space,Enter and \ as Fire 1-3, shifting them into D0
Finally we'll shift in all the bits of UDLR into D0
We're going to need two versions of our previous sprite drawing routine - one which draws our smiley, and one that blanks out the previous sprite.

We're going to need some sprite routines...

One will draw our player - the smiley from the previous example

The other will clear our player, drawing a blank area.
Our code will only redraw the character when the joystick is pressed... so the first run we need to FORCE a draw - otherwise we wouldn't be able to see our character!

When we want to test the joystick we read from the second byte at 'JoystickData' (This is set by the interrupt handler we defined in the vector table earlier...The format of the read in byte is %F----RLDU
OK, our joystick has been pressed...

We need to back up the current position of the player...

We're going to run our 'blank player' function... this is just our previous sprite drawing routine, with an all zero sprite
We need to process the joystick.

We need to test each bit of the value of D3 with the joystick directions...

D2 is the Y axis... D1 is the X axis
Ok, we've moved our player, but we need to check if the sprite will go off the screen

If the player Xpos is greater than 63 then it's off the screen (our character is 8 bytes wide)... also if it's below 0 that's a problem, but the value will have wrapped round to 65535, so we don't need to check this!

If the player Ypos is over 200-7 we're also over the screen...

If the position fails any of these boundary checks, we need to reset the position from the backup
We need to draw the sprite in the new position... finally we wait a bit and repeat
We can now move our smiley around the screen


The Sinclair QL does have joystick ports... but they emulate cursor keys!... so we don't need to do anything special to use the plug in Joysticks (although they are super rare!)


Lesson S11 - Joypad Reading on the Sega Genesis
Lets extend the previous bitmap example, and learn how to move an 8x8 smiley tile around the screen.

GEN_Joystick.asm


The Code

We're going to need some variables for our player position... one for the Current position, and one for the previous position (so we can remove the old sprite)

We define these in the ram area of the console
We're going to need some sprite routines

We're going to need two versions of our previous sprite drawing routine - one which draws our smiley, and one that blanks out the previous sprite...

One will draw our player - the smiley from the previous example

The other will clear our player, drawing a blank area.

We're using the Tilemap to draw the graphic in this case... the tilemap starts at $C000 - each tile is 2 bytes
Our code will only redraw the character when the joystick is pressed... so the first run we need to FORCE a draw - otherwise we wouldn't be able to see our character!

We use the 'ReadControlsDual' function to read in from the joypad, and look until a direction is pressed.
OK, our joystick has been pressed...

We need to back up the current position of the player...

We're going to run our 'blank player' function... this is just our previous sprite drawing routine, with an all zero sprite
We need to process the joystick.

We need to test each bit of the value of D3 with the joystick directions...

D2 is the Y axis... D1 is the X axis
Ok, we've moved our player, but we need to check if the sprite will go off the screen

If the player Xpos is greater than 40 then it's off the screen (our character is 8 bytes wide)... also if it's below 0 that's a problem, but the value will have wrapped round to 65535, so we don't need to check this!

If the player Ypos is over 28 we're also over the screen...

If the position fails any of these boundary checks, we need to reset the position from the backup
We need to draw the sprite in the new position... finally we wait a bit and repeat
We can now move our smiley around the screen

Joystick Reading

There are two ports which are read and written for the joypad...
Joypad 1 is at address $A10005
Joypad 2 is at address $A10003

First, however, we need to set one of the bits of these ports to WRITE... we do this with 2 ports...
Joypad 1 is at address $A1000B
Joypad 2 is at address $A10009
The Joypad needs a sequence of writes to select the 'sections' of the joypad... this is achieved by writes with bit 6 as a 1

The first batch returns Up, Down, Left, Right... button C and Button B

The second batch returns Button A and Start

The final batch are Button X, Button Y and Button Z... as well as Mode.

Note: some of the buttons are duplicated... eg Up is returned in the first and second batch.
Finally, we shift around the bits, so we have all the buttons in a neat order in a single register.
The weird layout and splitting of the buttons is to maintain compatibility with the old Master System controllers...
The genesis has basically an entire master system built in, with sound chip... Z80 and backwards compatible video.

Lesson S12 - Joystick reading on the NeoGeo
Lets look at the NeoGeo... lets add Joystick reading and move our smiley around the screen.

We're going to use the 'fixmap' for simple graphics in this example.

NEO_Joystick.asm


The Code

We're going to need some variables for our player position... one for the Current position, and one for the previous position (so we can remove the old sprite)

We define these in the ram area of the console
We're going to need some sprite routines

We're going to need two versions of our previous sprite drawing routine - one which draws our smiley, and one that blanks out the previous sprite...

One will draw our player - the smiley from the previous example

The other will clear our player, drawing a blank area.

We're using the Fixmap to draw the graphic in this case... the Fixmap starts at $7000 - each tile is 2 bytes
Our code will only redraw the character when the joystick is pressed... so the first run we need to FORCE a draw - otherwise we wouldn't be able to see our character!

We use the 'ReadControlsDual' function to read in from the joypad, and look until a direction is pressed.
OK, our joystick has been pressed...

We need to back up the current position of the player...

We're going to run our 'blank player' function... this is just our previous sprite drawing routine, with an all zero sprite
We need to process the joystick.

We need to test each bit of the value of D3 with the joystick directions...

D2 is the Y axis... D1 is the X axis
Ok, we've moved our player, but we need to check if the sprite will go off the screen

If the player Xpos is greater than 40 then it's off the screen (our character is 8 bytes wide)... also if it's below 0 that's a problem, but the value will have wrapped round to 65535, so we don't need to check this!

If the player Ypos is over 28 we're also over the screen...

If the position fails any of these boundary checks, we need to reset the position from the backup
We need to draw the sprite in the new position... finally we wait a bit and repeat
We can now move our smiley around the screen

Joystick Reading

There are 3 ports we want to use to read in the buttons
$380000 allows us to read in Select and Start for Joy 1 and 2

$30000 allows us to read in the directions and buttons of Joystick 1
$34000 allows us to read in the directions and buttons of Joystick 1
Don't forget!... The Fixmap bitmap data for the smiley is never transferred to VRAM - it's all in ROM, and is defined by the MAME XML.


Lesson S13 - Simple Sprite Clipping on the x68000
We drew a bitmap on the screen before and move it around the screen, but this time we'll improve the routine, and allow the bitmap to go partially offscreen!

Lets give it a go.

x68_BitmapClipping.asm



Logical Units and clipping

To allow us to crop our sprites, we'll need to move our sprite around 'logical space' - only a portion of this will be the visible screen.

We'll use this to crop the sprite.


We're designing our code for screens of 256x192 - and we'll use 'Logical Co-ordinates' which define a visible screen of 192x96 (2 pixels per logical unit)

The visible logical screen is in the center of the logical space area to allow the sprite to be 'partially offscreen' on any side.
We need to crop any offscreen part to get to the first visible pixel of the sprite.

After each line We also need to crop the unused pixels to the next visible pixel


The X68000 actually allows for easy per pixel movement, so our Logical units of 2x2 pixels will be a little less smooth than is possible.

The main reason we're using this constant logical unit definition is to allow easy porting of code between platforms.

Our Sprite Routine
Before we draw our sprite we need to crop it with "DoCrop"

registers D1,D4 is the X,Y co-ordinate in logical units
registers D3,D6 is the Width,Height in logical units
register A6 is the address of the source bitmap data.

If there is nothing onscreen, 'DoCrop' will return the Carry set.


GetVDPScreenPos will calculate the VRAM destination into A2

We then transfer bytes from A6 to A2

to move the VRAM destination down one line we add 1024

after each line we update the source bitmap, adding the transferred bytes, and any bytes that need to be skipped at the end of a line (SpriteHClip)
GetVDPScreenPos will calculate the VRAM destination A2 from X,Y pos (D1,D4)

The formula is $C00000 + Ypos *1024 + Xpos

Logical Cropping

Our cropping routine will work out the X,Y pos in bytes, and width and height + any skipped pixels from the source data

registers D1,D4 is the X,Y co-ordinate in logical units
registers D3,D6 is the Width,Height in logical units
register A6 is the address of the source bitmap data.

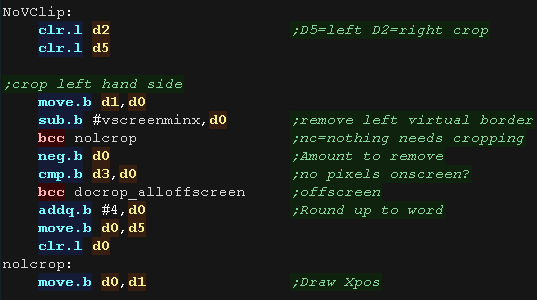

First we zero D2,D5 - they are used for temp values, and spritehclip which is used for the horizontally skipped bytes after each line
Ok... lets crop the top of the sprite...
First we remove the ypos of the first visible pixel from the draw ypos (D4)... if the result is greater than zero, then nothing is off the screen at the top.

if the result is less than zero we need to crop... we convert the negative to a positive and compare to the height of our sprite (D6), if the amount to crop is not less than the height then the sprite is completely offscreen.

Anything else is the number of lines we need to remove from the top, we store this in D5 and set the new 'draw position' to Ypos (D4) =0
Next we do the same for the bottom,

We add the height to the Ypos, and subtract the height of the logical screen, if it's over the screen height (greater than zero) we need to crop again - the result is the amount to crop

We've calculated the top (d5) and bottom (d2) crop... we now use these to calculate the new height of the sprite (D6).
We then skip over any bytes in the source (A6) based on the number of lines we need to remove from the top.
now we do the same for the X axis

First we remove the xpos of the first visible pixel from the draw Xpos (D1) ... if the result is greater than zero, then nothing is off the screen at the left.

if the result is less than zero we need to crop... we convert the negative to a positive and compare to the width of our sprite (D3), if the amount to crop is not less than the width then the sprite is completely offscreen.

Anything else is the number of lines we need to remove from the left, we store this in D5 and set the new 'draw position' to Xpos (D1) =0
Next we do the same for the right,

We add the width (D3) to the Xpos, and subtract the width of the logical screen, if it's over the screen width (greater than zero) we need to crop again - the result is the amount to crop from the right (d2)
We've calculated the left and right crop... we now use these to calculate the new width of the sprite (D3).

We then skip over any bytes in the source (A6) based on the number of bytes we need to remove from the left (D5).
We've finished cropping our sprite!... but we need to convert our co-ordinates from logical units (pairs of pixels) to a tile count - effectively muultiplying Xpos,Ypos and Height by 2.

We clear the carry to tell the calling routine we cropped the sprite successfully (it needs drawing) and return.
If the sprite is completely offscreen, there's no point trying to draw, so we set the carry and return


Lesson S14 - Simple Sprite Clipping on the Amiga
We drew a bitmap on the screen before and move it around the screen, but this time we'll improve the routine, and allow the bitmap to go partially offscreen... We'll use Blitting to make smooth movement easier!

Lets give it a go.

AMI_Bitmap_BlitJoy_Clipping.asm


Logical Units and clipping

To allow us to crop our sprites, we'll need to move our sprite around 'logical space' - only a portion of this will be the visible screen.

We'll use this to crop the sprite.


We're designing our code for screens of 256x192 - and we'll use 'Logical Co-ordinates' which define a visible screen of 192x96 (2 pixels per logical unit)

The visible logical screen is in the center of the logical space area to allow the sprite to be 'partially offscreen' on any side.
We need to crop any offscreen part to get to the first visible pixel of the sprite.

After each line We also need to crop the unused pixels to the next visible pixel


The blitting code works in 16 bit words, so chunks of the sprite disappear when we get to the edge of the screen.

If we want to fix this, we need to define a wider screen with an 'offscreen' area of at least 1 word on the left and right.

Our Sprite Routine
Before we can use the blitter, we need to enable the Blitter DMA with $DFF096
Before we draw our sprite we need to crop it with "DoCrop"

registers D1,D4 is the X,Y co-ordinate in logical units
registers D3,D6 is the Width,Height in logical units
register A6 is the address of the source bitmap data.

If there is nothing onscreen, 'DoCrop' will return the Carry set.
First we need to ensure the last blit finished... we do this with WaitForBlit!

Then we convert our X,Ypos from Logical units to horizontal words, and vertical lines.

We then Use GetScreenPos to calculate the VRAM destination position.


There are a lot of settings we need to set up for the drawing of our sprite via BLIT

we can only work in 16 bit words, but we can bit shift the bits of the sprite to allow for smooth movement between 2 byte blocks.

We XOR the sprite with the current screen contents, we use the function $5A = !AC+A!C to do this... where A is the sprite, and C is the current screen contents.
GetVDPScreenPos will calculate the VRAM destination A2 from X,Y pos (D1,D4)

We have

So our formula is Addr = ScreenMem + (Ypos * 40 * 4) + Xpos

Logical Cropping

Our cropping routine will work out the X,Y pos in bytes, and width and height + any skipped pixels from the source data

registers D1,D4 is the X,Y co-ordinate in logical units
registers D3,D6 is the Width,Height in logical units
register A6 is the address of the source bitmap data.

First we zero D2,D5 - they are used for temp values, and spritehclip which is used for the horizontally skipped bytes after each line
Ok... lets crop the top of the sprite...
First we remove the ypos of the first visible pixel from the draw ypos (D4)... if the result is greater than zero, then nothing is off the screen at the top.

if the result is less than zero we need to crop... we convert the negative to a positive and compare to the height of our sprite (D6), if the amount to crop is not less than the height then the sprite is completely offscreen.

Anything else is the number of lines we need to remove from the top, we store this in D5 and set the new 'draw position' to Ypos (D4) =0
Next we do the same for the bottom,

We add the height to the Ypos, and subtract the height of the logical screen, if it's over the screen height (greater than zero) we need to crop again - the result is the amount to crop

We've calculated the top (d5) and bottom (d2) crop... we now use these to calculate the new height of the sprite (D6).
We then skip over any bytes in the source (A6) based on the number of lines we need to remove from the top.
now we do the same for the X axis

First we remove the xpos of the first visible pixel from the draw Xpos (D1) ... if the result is greater than zero, then nothing is off the screen at the left.

if the result is less than zero we need to crop... we convert the negative to a positive and compare to the width of our sprite (D3), if the amount to crop is not less than the width then the sprite is completely offscreen.

Anything else is the number of lines we need to remove from the left, we store this in D5 and set the new 'draw position' to Xpos (D1) =0
Next we do the same for the right,

We add the width (D3) to the Xpos, and subtract the width of the logical screen, if it's over the screen width (greater than zero) we need to crop again - the result is the amount to crop from the right (d2)
We've calculated the left and right crop... we now use these to calculate the new width of the sprite (D3).

We then skip over any bytes in the source (A6) based on the number of bytes we need to remove from the left (D5).
We clear the carry to tell the calling routine we cropped the sprite successfully (it needs drawing) and return.
If the sprite is completely offscreen, there's no point trying to draw, so we set the carry and return

Lesson S15 - Simple Sprite Clipping on the Atari ST
Lets extend our Atari Example, and add sprite clipping so the sprite can go partially offscreen.


AST_BitmapClipping.asm


Logical Units and clipping

To allow us to crop our sprites, we'll need to move our sprite around 'logical space' - only a portion of this will be the visible screen.

We'll use this to crop the sprite.


We're designing our code for screens of 256x192 - and we'll use 'Logical Co-ordinates' which define a visible screen of 192x96 (2 pixels per logical unit)

The visible logical screen is in the center of the logical space area to allow the sprite to be 'partially offscreen' on any side.
We need to crop any offscreen part to get to the first visible pixel of the sprite.

After each line We also need to crop the unused pixels to the next visible pixel


Our sample code does not bitshift the bits of the sprite, this means we can only move horizontally in 8 pixel blocks...
This means jerky horizontal movement, but pixel shifting all the blocks would be quite slow.

Our Sprite Routine
Before we draw our sprite we need to crop it with "DoCrop"

registers D1,D4 is the X,Y co-ordinate in logical units
registers D3,D6 is the Width,Height in logical units
register A6 is the address of the source bitmap data.

If there is nothing onscreen, 'DoCrop' will return the Carry set.
We need to fix up our co-ordinates.

Our routine works horizontally in 8 pixel blocks, and we need to reduce our width (in D3) by one for DBRA
We vconvert the Xpos to byte blocks (8 pixels)

We need to convert our height (D6) and Ypos (D4) from logical units to lines

We then use GetScreenPos to get the VRAM destionation (in register A2)

Our Sprite routine transfers 4  bytes of our source sprite to the 4 bitplanes.
We XOR (eor) the source data with the screen data, this inverts the screen data, and allows us to remove the sprite by drawing it a second time.

The 4 bitplanes are in 4 consecutive words in VRAM, so after 2 bytes we need to skip the next 6 bytes.

We repeat until the sprite is done.
GetVDPScreenPos will calculate the VRAM destination A2 from X,Y pos (D1,D4)

We have each 320 pixel line is 160 bytes, but we have to cope with the fact that pairs of bytes are grouped together, but the bitplanes of those pairs are in 8 consecutive bytes in vram.

Logical Cropping

Our cropping routine will work out the X,Y pos in bytes, and width and height + any skipped pixels from the source data

registers D1,D4 is the X,Y co-ordinate in logical units
registers D3,D6 is the Width,Height in logical units
register A6 is the address of the source bitmap data.

First we zero D2,D5 - they are used for temp values, and spritehclip which is used for the horizontally skipped bytes after each line
Ok... lets crop the top of the sprite...
First we remove the ypos of the first visible pixel from the draw ypos (D4)... if the result is greater than zero, then nothing is off the screen at the top.

if the result is less than zero we need to crop... we convert the negative to a positive and compare to the height of our sprite (D6), if the amount to crop is not less than the height then the sprite is completely offscreen.

Anything else is the number of lines we need to remove from the top, we store this in D5 and set the new 'draw position' to Ypos (D4) =0
Next we do the same for the bottom,

We add the height to the Ypos, and subtract the height of the logical screen, if it's over the screen height (greater than zero) we need to crop again - the result is the amount to crop

We've calculated the top (d5) and bottom (d2) crop... we now use these to calculate the new height of the sprite (D6).
We then skip over any bytes in the source (A6) based on the number of lines we need to remove from the top.
now we do the same for the X axis

First we remove the xpos of the first visible pixel from the draw Xpos (D1) ... if the result is greater than zero, then nothing is off the screen at the left.

if the result is less than zero we need to crop... we add 4 to round up the amount to crop.

Anything else is the number of lines we need to remove from the left, we store this in D5 and set the new 'draw position' to Xpos (D1) =0
Next we do the same for the right,

We add the width (D3) to the Xpos, and subtract the width of the logical screen, if it's over the screen width (greater than zero) we need to crop again - the result is the amount to crop from the right (d2)
We've calculated the left and right crop... we now use these to calculate the new width of the sprite (D3).

We then skip over any bytes in the source (A6) based on the number of bytes we need to remove from the left (D5).
We clear the carry to tell the calling routine we cropped the sprite successfully (it needs drawing) and return.
If the sprite is completely offscreen, there's no point trying to draw, so we set the carry and return








View Options
Default Dark
Simple (Hide this menu)
Print Mode (white background)

Top Menu
***Main Menu***
Youtube channel
Patreon
Introduction to Assembly (Basics for absolute beginners)
Amazon Affiliate Link
Forum
AkuSprite Editor
ChibiTracker
Dec/Bin/Hex/Oct/Ascii Table

Alt Tech
Archive.org
Bitchute
Odysee
Rumble
DailyMotion
Please note: I wlll upload more content to these alt platforms based on the views they bring in

Z80 Content
***Z80 Tutorial List***
Learn Z80 Assembly (2021)
Learn Z80 Assembly (old)
Hello World
Simple Samples
Advanced Series
Multiplatform Series
Platform Specific Series
ChibiAkumas Series
Grime Z80
Z80 Downloads
Z80 Cheatsheet
Sources.7z
DevTools kit
Z80 Platforms
Amstrad CPC
Elan Enterprise
Gameboy & Gameboy Color
Master System & GameGear
MSX & MSX2
Sam Coupe
TI-83
ZX Spectrum
Spectrum NEXT
Camputers Lynx

6502 Content
***6502 Tutorial List***
Learn 6502 Assembly
Advanced Series
Platform Specific Series
Hello World Series
Simple Samples
Grime 6502
6502 Downloads
6502 Cheatsheet
Sources.7z
DevTools kit
6502 Platforms
Apple IIe
Atari 800 and 5200
Atari Lynx
BBC Micro
Commodore 64
Commodore PET
Commander x16
Super Nintendo (SNES)
Nintendo NES / Famicom
PC Engine (Turbografx-16)
Vic 20

68000 Content
***68000 Tutorial List***
Learn 68000 Assembly
Hello World Series
Platform Specific Series
Simple Samples
Grime 68000
68000 Downloads
68000 Cheatsheet
Sources.7z
DevTools kit
68000 Platforms
Amiga 500
Atari ST
Neo Geo
Sega Genesis / Mega Drive
Sinclair QL
X68000 (Sharp x68k)

8086 Content
Learn 8086 Assembly
Platform Specific Series
Hello World Series
Simple Samples
8086 Downloads
8086 Cheatsheet
Sources.7z
DevTools kit
8086 Platforms
Wonderswan
MsDos

ARM Content
Learn ARM Assembly
Learn ARM Thumb Assembly
Platform Specific Series
Hello World
Simple Samples
ARM Downloads
ARM Cheatsheet
Sources.7z
DevTools kit
ARM Platforms
Gameboy Advance
Nintendo DS
Risc Os

Risc-V Content
Learn Risc-V Assembly
Risc-V Downloads
Risc-V Cheatsheet
Sources.7z
DevTools kit

MIPS Content
Learn Risc-V Assembly
Platform Specific Series
Hello World
Simple Samples
MIPS Downloads
MIPS Cheatsheet
Sources.7z
DevTools kit
MIPS Platforms
Playstation
N64

PDP-11 Content
Learn PDP-11 Assembly
Platform Specific Series
Simple Samples
PDP-11 Downloads
PDP-11 Cheatsheet
Sources.7z
DevTools kit
PDP-11 Platforms
PDP-11
UKNC

TMS9900 Content
Learn TMS9900 Assembly
Platform Specific Series
Hello World
TMS9900 Downloads
TMS9900 Cheatsheet
Sources.7z
DevTools kit
TMS9900 Platforms
Ti 99

6809 Content
Learn 6809 Assembly
Learn 6309 Assembly
Platform Specific Series
Hello World Series
Simple Samples
6809 Downloads
6809/6309 Cheatsheet
Sources.7z
DevTools kit
6809 Platforms
Dragon 32/Tandy Coco
Fujitsu FM7
TRS-80 Coco 3
Vectrex

65816 Content
Learn 65816 Assembly
Hello World
Simple Samples
65816 Downloads
65816 Cheatsheet
Sources.7z
DevTools kit
65816 Platforms
SNES

eZ80 Content
Learn eZ80 Assembly
Platform Specific Series
eZ80 Downloads
eZ80 Cheatsheet
Sources.7z
DevTools kit
eZ80 Platforms
Ti84 PCE

IBM370 Content
Learn IBM370 Assembly
Simple Samples
IBM370 Downloads
IBM370 Cheatsheet
Sources.7z
DevTools kit

Super-H Content
Learn SH2 Assembly
Hello World Series
Simple Samples
SH2 Downloads
SH2 Cheatsheet
Sources.7z
DevTools kit
SH2 Platforms
32x
Saturn

PowerPC Content
Learn PowerPC Assembly
Hello World Series
Simple Samples
PowerPC Downloads
PowerPC Cheatsheet
Sources.7z
DevTools kit
PowerPC Platforms
Gamecube

Work in Progress
ChibiAndroids

Misc bits
Ruby programming









Buy my Assembly programming book
on Amazon in Print or Kindle!


Buy my Assembly programming book



Available worldwide!
Search 'ChibiAkumas' on
your local Amazon website!
Click here for more info!


























































































Buy my Assembly programming book
on Amazon in Print or Kindle!


Buy my Assembly programming book



Available worldwide!
Search 'ChibiAkumas' on
your local Amazon website!
Click here for more info!


























































































Buy my Assembly programming book
on Amazon in Print or Kindle!


Buy my Assembly programming book



Available worldwide!
Search 'ChibiAkumas' on
your local Amazon website!
Click here for more info!
