Lesson P31- 4x 16 color layers on the X68000
We've looked at bitmap graphics on the X68000 before, but we only scratched the surface!...
The X68000 can support 4x bitmap scrolling layers!... lets get moving!


Setting up our layers

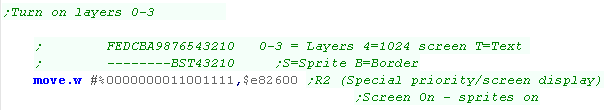

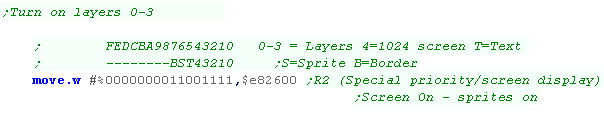

To make our layers work, we need to turn them on. We do this with register $E82600

bits 0-3 control the visibility of the 4 bitmap layers
We'll also want to decide on the order of our 4 layers.
We can set each of the 4 layers to a priority 0-3

Drawing to our 4 layers

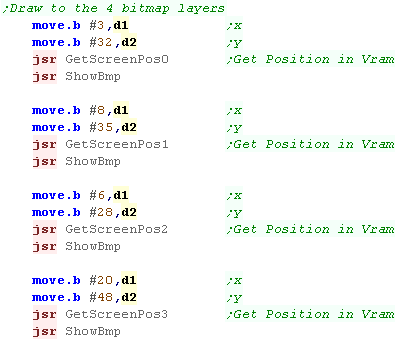

We're going to show 4 Chibiko's - each on a different layer, then we'll scroll those layers in different directions.

We'll even show a hardware sprite for good measure (The crosshair)... why? because we can!
Transferring out bitmap to a layer is easy! we just need to select the correct VRAM address

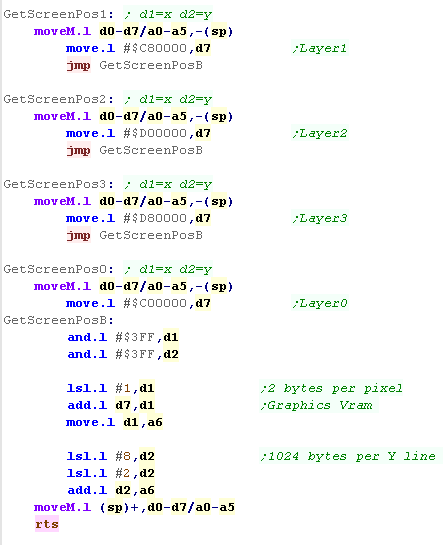

We'll define 4 versions of 'GetScreenPos' - one for each layer!
Here are our 4 calculation routines... each layer has a VRram address $C00000+, separated $80000 apart

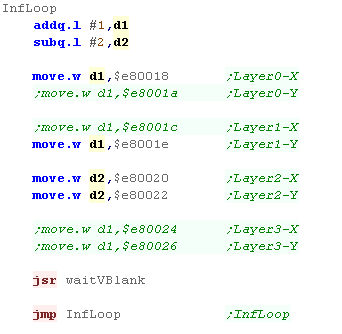

We can scroll all these layers independently!

Although our screen is 256x256, Each layer is 512x512!

The scroll positions are defined by registers $E80018+... Each pair of words controls the X and Y scroll for one of the 4 layers
We've also used a 'WaitVblank' Function to slow down the action.

Here it is! We test bit 16 of $e88000 to detect VBLANK.

Vram Address summary

Here are the addresses you need to write to for each layer!... Don't forget to turn the layers on with $e82600, and set the priority with $e82500!!!

VRAM base
$c00000 $e80018 $e8001a
$c80000 $e8001c $e8001e
$d00000 $e80020 $e80022
$d80000 $e80024 $e80026

We've looked at lots of amazing layers... but the X68000 has more tricks up its sleeve!

Next time we'll check out the 'Text Layer' - a single 16 color layer in a different format!

Lesson P32- The Text Layer
Lets take a look at the Text Layer - this is a 'fifth layer' which allows an extra 16 color 1024x1024 bitmap.

Unlike the normal layers, this is split into 4 bitplanes so we'll need different code to use it.


The Text Layer VRAM addresses

Each pixel can be color 0-15... 4 bits per pixel... This data is split into bitplanes, meaning all the 'bit 0's of the pixels are stored together, as are bit 1's , 2's and 3's

Bit 0's are at $E00000, Bit 1's are at $E20000 and so on.

Address Bitplane
$E20000 1
$E40000 2
$E60000 3

Palette: $E82200-$E8221E (%GGGGGRRRRRBBBBBT  T=Transparent) (Same as Sprite Palette 0)

Scroll-X: $E80014
Scroll-Y: $E80016

Don't forget to turn the layers on with $E82600, and set the priority with $E82500!!!

Preparing the Text Layer.

Before we can use the Text layer, we need to turn it on.

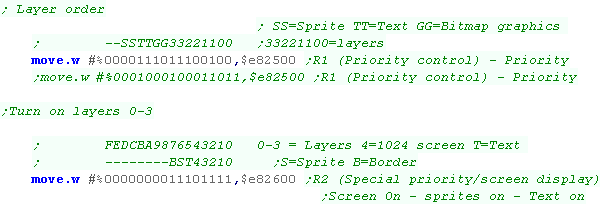

We also need to position it in the layer stack.
The system is still drawing to the text layer!
If we use the system calls to print a character, it shows to the text layer,

Also the Function key display is showing!

We need to turn these off!

We're going to use 3 functions of the firmware $FF23 DOS commands to Clear the screen, turn off the cursor and the function keys display
We need to define our palette using address $E82200+

Drawing to the screen

We need to calculate our destination address in VRAM, and transfer the bytes of our graphic to it, but we cannot use the same calculations as for the bitmap screens, as the screen layout is different.
Each line of the text screen is 1024 pixels, and in a bitplane there are 8 pixels per byte.
Therefore each horizontal line is 128 bytes.

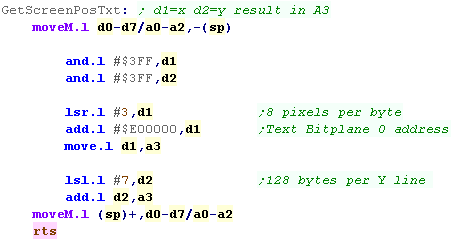

Here we calculate the Vram address of the first Bitplane in A3 (Bitplane 0)

We'll use this to calculate bitplane 1,2 and 3 addresses later.
We need to calculate the addresses for bitplanes 1-3... we do this by adding $20000,$40000 and $60000, and storing the addresses in A4-A6

We then transfer the bytes of our source sprite to these bitplanes.

Our file is formatted so 4 consecutive bytes are the data for the 4 bitplanes of 8 pixels. This format was used because it's the same format as used by the example on the Amiga and Atari ST.

Another alternative would be to have all the data for Bitplane 0 first, then Bitplane 1, then 2 and finally 3...
Here's the bitmap!

Note... The colors were darker by design to separate the text layer from the bitmaps.

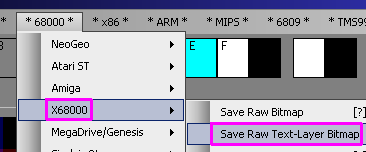

You can export a bitmap in this format with my AkuSprite Editor,

It's free and open source.
The X68000 has some impressive graphics, and there's still more to come!

Next time we'll take a look at 256 color, 64k color and high res modes!

Lesson P33- Other screen modes of the X68000
In the past we've always looked at 16 color 256x256 mode, but the x68000 can do more!

Lets take a look at higher resolutions, and higher color depths!


Warning!... these examples have been only tested on an emulator, and the author cannot guarantee their effect on real hardware.
If you use these on your X68k and they cause the monitor to implode, causing a black hole which sucks your hamster into a dimension of pure evil.... well, you're going to have to clean up the mess yourself!

The Modes!

There are a wide range of modes available to us!... here's the ones we'll be trying out!

256x256 16 color - 4 layers
256x256 256 color - 2 layers
256x256 64k color - 1 layer
512x512 16 color - 4 layers
768x512 Hires 16 color
1 layer only (1024x1024 layer)

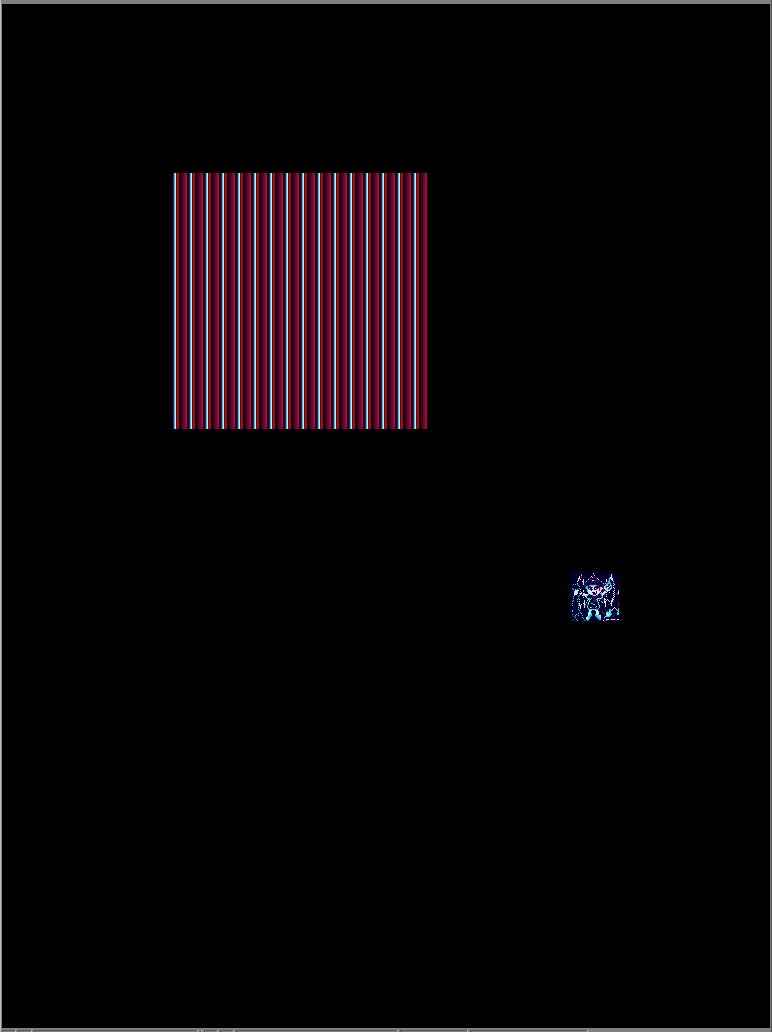

16 and 256 color mode use palettes - but 16 bit color mode does not - hence why the bitmap is messed up!

The bits in 64k color mode are in the format %GGGGGRRRRRBBBBBT  - 5 bits per channel and one transparent bit!?

Setting Graphics modes.

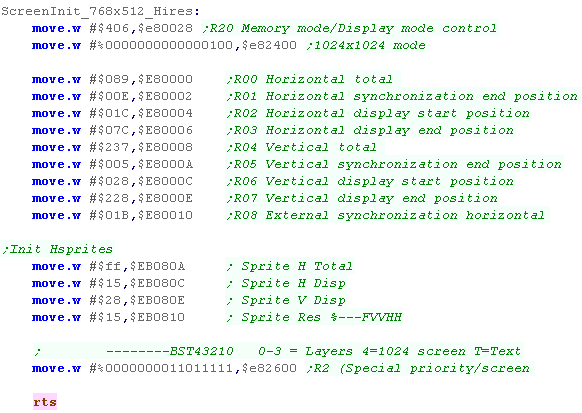

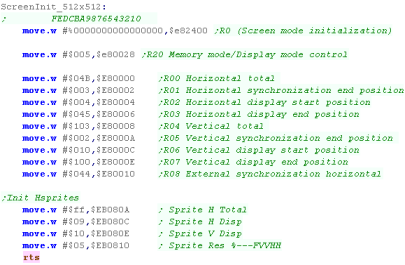

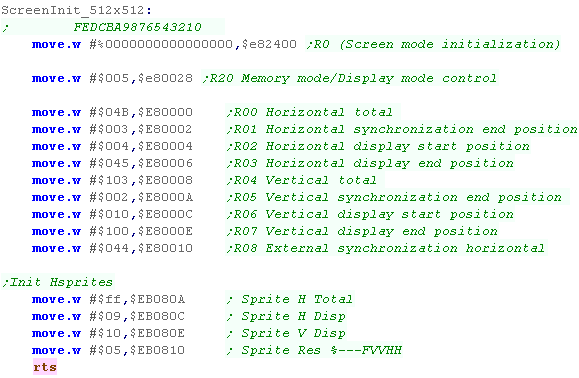

Rather than using system calls, We can select a graphics mode by writing the correct values to registers $e80000-$e8002e

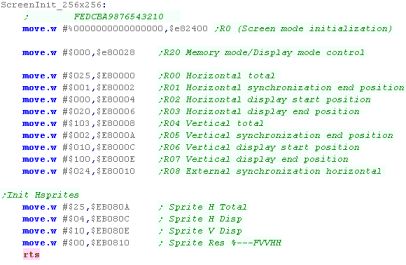

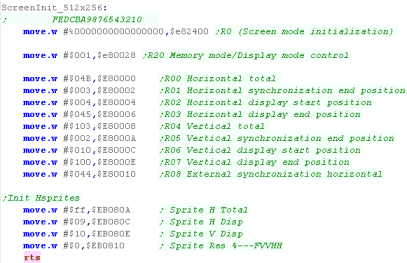

Here are some sample values for a 16 color screen ... you will need to change the values in the dark section if you want 256 colors.

High Resolution Low Resolution
RegNum 768x512 512x512 512x256 256x256 512x512 512x256 256x256 Register Purpose
E80000 $89 $5B $5B $2B $4B $4B $25  R00 Horizontal total
E80002 $0E $09 $09 $04 $03 $03 $01  R01 Horizontal synchronization end position timing
E80004 $1C $11 $11 $06 $04 $05 $00  R02 Horizontal display start position
E80006 $7C $51 $51 $26 $45 $45 $20  R03 Horizontal display end position
E80008 $237 $237 $237 $237 $103 $103 $103  R04 Vertical total
E8000A $05 $05 $05 $05 $02 $02 $02  R05 Vertical synchronization end position timing
E8000C $28 $28 $28 $28 $10 $10 $10  R06 Vertical display start position
E8000E $228 $228 $228 $228 $100 $100 $100  R07 Vertical display end position
E80010 $1B $1B $1B $1B $44 $44 $24  R08 External synchronization horizontal adjust: Horizontal position tuning
E80028 $406

$05 $01 $00  R20 Memory mode/Display mode control
E82400 $04

$00 $00 $00  R0 (Screen mode initialization) - Detail
E82500 $2E4 $2E4 $2E4 $2E4 $2E4 $2E4 $2E4  R1 (Priority control) - Priority (Sprites foreground)
E82600 $DF

$C1 $C1 $C1  R2 (Special priority/screen display) - Screen On / Sprites On
EB0808 $200 $200 $200 $200 $200 $200 $200  BG Control (Sprites Visible, slow writing)
$FF $FF $FF $FF $FF $25  Sprite H Total
$15 $15 $0A $09 $09 $04  Sprite H Disp
$28 $28 $28 $10 $10 $10  Sprite V Disp
$15 $11 $10 $05 $01 $00  Sprite Res %---FVVHH


Whatever screen mode we use, we need to set up our layers accordingly

Screen Modes

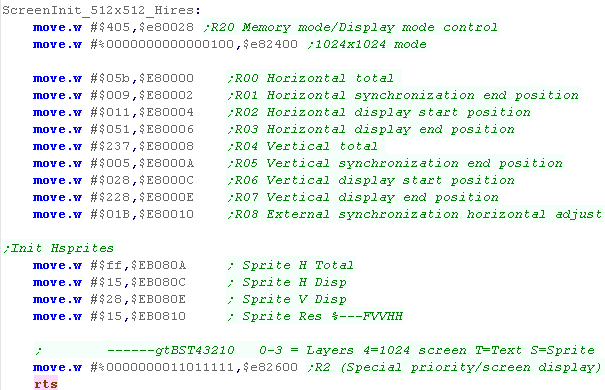

Depending on our screen mode, we need to set the registers accordingly:


Highres Screen Modes

These use the four 512x512 layers as one large 1024x1024 screen - allowing for larger resolutions. this is done by setting bit 2 of $e82400 to 1

512x512 Hires
768x512 Hires

Color depth

We can set the colordepth to 256 color, or 64k color.

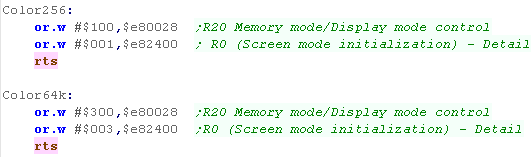

To do this we need to set bits 0+1 of $e82400, and 16+17 of $e80028

Lesson P34 - Creating a game for the NeoGeo CD!
The NeoGeo CD is basically the same as a 'normal' NeoGeo... it's video ROM is now replaced with RAM, and there's some cartridge changes. But with a few small tweaks, we can port our code to the CD system... lets give it a go!


Changes to our rom header

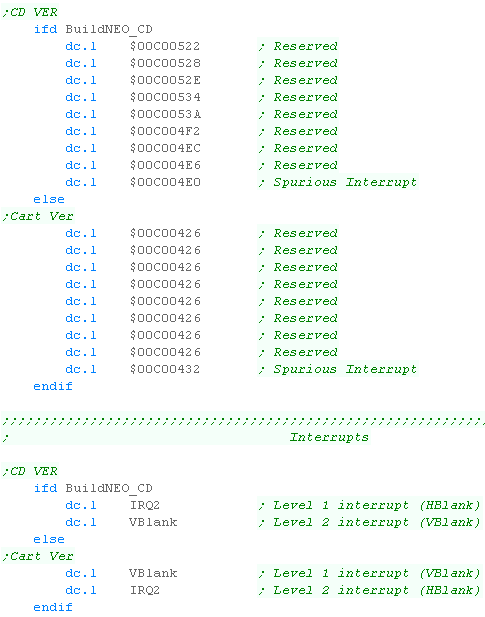

There's a few trivial changes we need to make to our rom header if we want to support CD.

some of the traps have now changed... and two of the interrupts have swapped round just to keep us on our toes!

The NeoGeo CD ISO

A neogeo CD is just a standard ISO.

The important thing is the files on it.

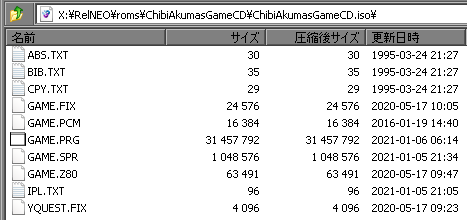

We need to create 3 files with fixed content... ABS.TXT BIB.TXT and CPY.TXT - they should have the text shown

(They're all in the updated DevTools download)
The most important file is the IPL.TXT! This defines the files that need to be moved to RAM which make up our game - They also include the destination addresses.

These are the ROM files we would have loaded in our MAME XML.

IPL.TXT - our game memory and files

Each line of the IPL.TXT contains 3 comma separated entries... there can be up to 32 in total

1. The filename in 8.3 format (Short filename)
2. The Bank number (One digit - typically 0)
3. The Offset in RAM to load the file into - this will affect the resulting 'Pattern number' of our sprites or Fix layer.

We probably want one PRG, one Z80, and at least one FIX and SPR file - all others are not needed for a simple game.

There are several types of file which will be loaded into different areas of RAM.

File Type
Our Program The main 68000 Program code
Fix Layer patterns This is our font and any other graphics for the FIX layer
Sprite patterns Graphics for our Sprites - in MAME these we split into two files - on the NEOGEO CD they are a single file - My Akusprite editor has been updated to support this.
Z80 sound CPU code The Z80 program code.
RLE compressed Sprites Compressed Sprites
ADPCM comressed sound Compressed digital sounds
Z80 Patches Extra code to be loaded into the Z80 ram

Building our CD file

We can create a valid ISO on the command line with MKISOFS:

Here are the parameters we're using
-iso-level 1 - Define the CD format we want to use.
-pad - Pad the output file to a multiple of 32k
-N - omit version number from filenames in ISO
-V - set Volume ID
The Destination ISO
Source files
Ok! We have a good ISO, but we need to prep it for MAME which needs it converting to a CHD

We use chdman createcd to convert it... But things get worse!
Once again we need to create an XML with a valid hash, but this isn't a sha1 of the file, but the contents of the file....
To calculate the hash we use info -i Which outputs the hash to a text file, then my MakeNeoGeHash program will patch the hash into a template from that exported text file -

We now have a valid XML file that the NeoGeo will use! Phew, what a pain!


The way sprites work on the NeoGeo CD is the same, but the file format is different.

Akusprite Editor has been upgraded with a new export option for the correct format.

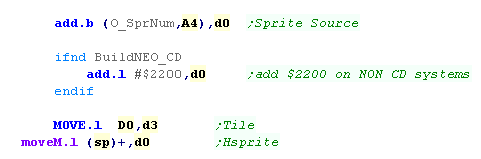

Depending on the address we load our sprites to, the pattern numbers may have changed.

In Yquest, on the regular NeoGeo Our first Sprite Pattern was #$2200 (due to firmware sprites), but on the NeoGeo CD we start from #0.

We will either need to ensure our SPR and FIX data are loaded into the same address in RAM as they were in ROM, or alter our code.

Lesson P35 - Creating a game for the MEGA CD
The Genesis CD system is actually more than just a CD bolt on, it has it's own faster sub CPU, and extra graphics capabilities.

But if we have a small little game, we can actually get it running on the Sega CD pretty easily!... lets learn how!


Mega-CD Rom format

The Mega CD format uses a 'Boot Sector' which appears at the very start (Byte 0+) of the ISO image... the first 16 sectors (32k) of a CD image is usually unused, so this area is available.

The first $200 bytes ($0000-$01FF) are the header, with the program name and more.

The next $584 bytes ($0200-$0783) are a 'Copy Protection block'... this shows the sega logo, and must be correct for the bios of the system you're using... Note: The Japanese version actually only needs a smaller area, but for simplicity it can be padded to $583 bytes with NOP commands

approx $200-$7FFF from the start of the CD are copied to genesis RAM $FF0000-$FF7DFF AND $020000-$FF7DFF

Execution starts on the Genesis at $FF0000, which will show the Logo, then run your program - Your program would effectively start at $0784 on the CD ($FF0584 in RAM)

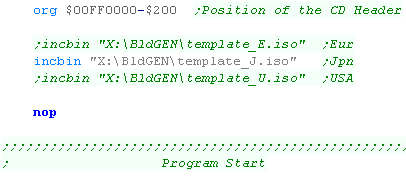

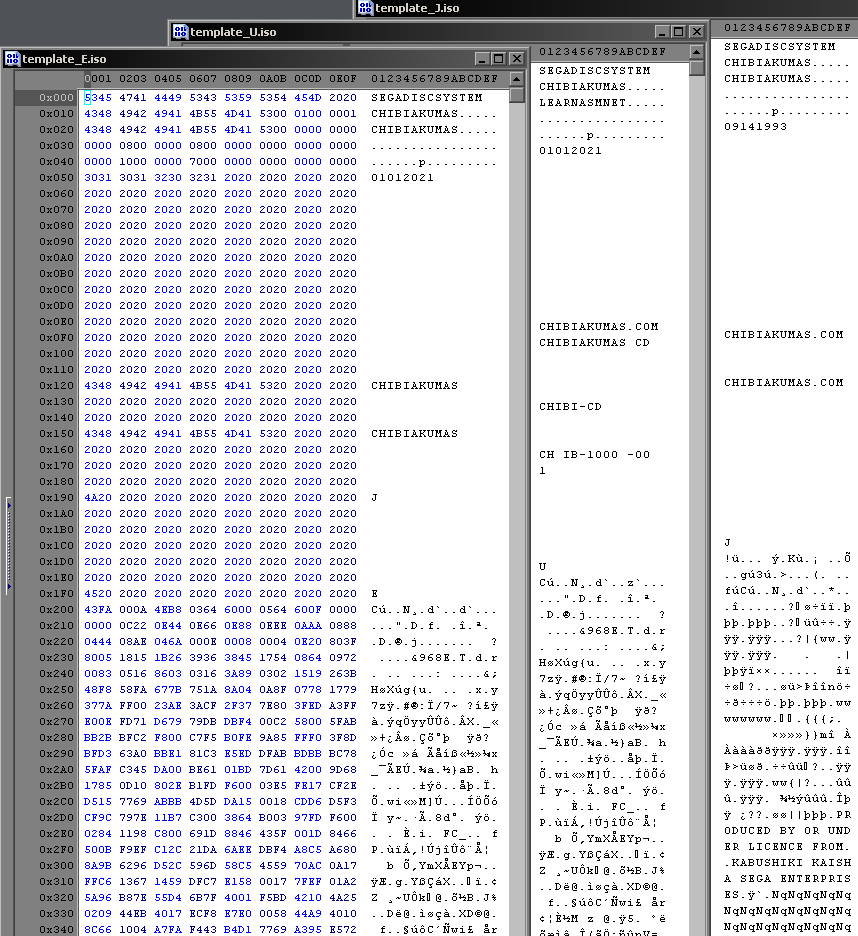

I've created a 'generic CD header' (Borrowed from some real game isos!) which we can include at the start of our ASM file.

This will ensure the CD has the header that our countries firmware will demand.
This will only work for small programs of a few kilobytes. Really it's just intended for a 'Bootstrap'

If we wanted a bigger program, we'd need to get the CD drive to load it from a file and transfer it to ram, but that's outside of the scope of what we're looking at here.

Building a CD file

We're going to build a valid ISO which will have the potential to store files for future use.

The more important thing is the header - which will be our program.
We compile our ASM file to a binary "\BldGen\Boot.bin" using VASM (or another 68000 assembler) in the ususal way - but we now need to insert this as the header to an ISO file.

Here are the parameters we're using
-iso-level 1 - Define the CD format we want to use.
-pad - Pad the output file to a multiple of 32k
-G - Specify a 'Generic' boot image
-V - set Volume ID
The Destination ISO
Source files

Lesson P36 - 32 color and Multiple Playfields (layers) on the Amiga
In the past we've used the Amiga in 16 color mode... while this is a 'typical' color depth, the Amiga is capable of up to 32 colors on a single screen (5 bitplanes)... or 2 layers with 8 colors each (6 bitplanes)

Lets check it out!


32 color graphics!

We've looked at getting a 16 color sprite onscreen, this time we'll upgrade to a 32 color sprite!
AkuSprite editor has been upgraded with output options for 5 and 3 bitplane export options!

You'll need 5 bitplanes for 32 colors!
We need to allocate extra VRAM memory for the 5th bitplane

We need to set the copperlist commands to set the fifth bitplane's VRAM address

We have to select the screen with BPLCON0 ($dff100) bit 12-14 define the bitdepth - we set these bits to %101 (5)
We also need to 'upgrade' the sprite routine to output the bitmap data to the extra bitplane
(VRAM offset 40*200*4)

2x 8 color layers

The Amiga is capable of up to 6 bitplanes... but rather than 64 color these are used to give 2x 8 color Layers (Called Playfields)

These have their own VRAM addresses, and can be offset/delayed to effect scrolling

Playfield 1 uses Odd bitplanes - and colors 1-7
Playfield 2 uses Even bitplanes - and colors 9-15
We need ram for 6 bitplanes this time!

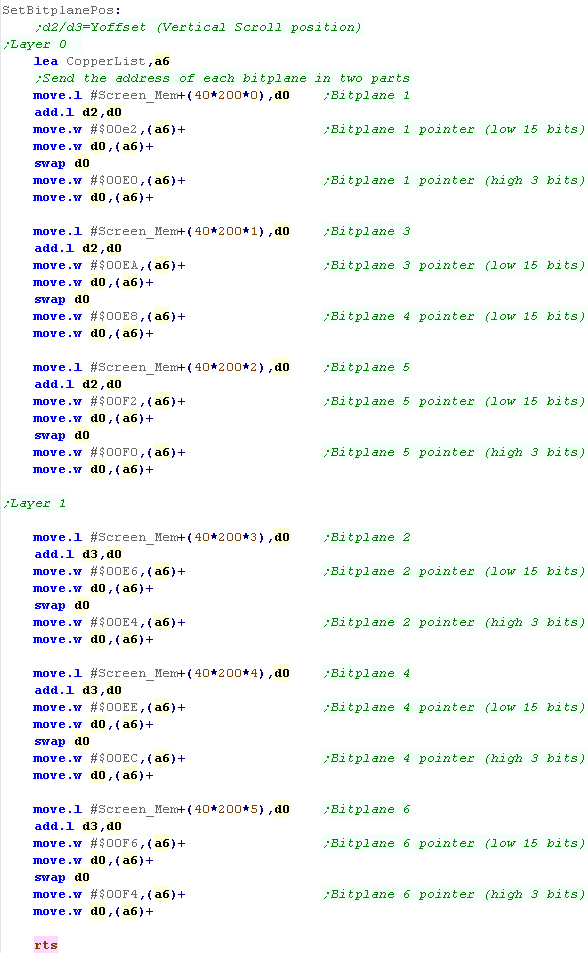

We need to allocate the 6 bitplanes... note we're splitting up the odd and even bitplanes to make things easier to work with the two layers.

If we add an 'offset' we can effect a hardware scroll....

adding &40 will move down Vertically a single line...

adding 2 will move across horizontally one word.

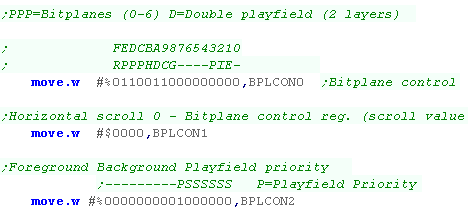

We set the screen wmode with BPLCON0 ($dff100) bit 12-14 define the bitdepth - we set these bits to %110 (6)... we also set bit 10 to one... this defines 'Dual playfields' (2 layers)

We set the priority of the layers with BPLCON2 ($dff104) Bit 6 can be used to 'swap' the order of the layers
We need an alternate sprite drawing to use 3 bitplanes.
The way we've configured our bitplanes, we can draw to the second layer by adding 40*200*3 to the VRAM destination
We can scroll our screen in single pixel increments with the 'Delay function' - defined by BPLCON1 ($dff102)
Bits 0-3 set the offset of layer 1
Bits 4-6 set the offset of layer 2.

A 'word offset' can be set by changing the VRAM address in the copperlist

If you want to use a large logical screen (with the physical screen showing just a small square of the logical area) you need to increase the VRAM allocation.
Of course you can allocate more vertical lines without issue, but if you want to allocate horizontal space, you need to set the bytes to 'skip' after each line .
This  is done with BPL1MOD ($DFF108) and BPL2MOD ($DFF10A)... These default to 0 (no skipped bytes... but setting them to $28 will effectively double the logical screen width.

Lesson P37 - Sprite Blitting and Interleaved bitplanes.
Let's take a look at the Amiga and sprites again.
In the past we've drawn sprites with hardware, and CPU soft sprites, but there's a 3rd option.
The amiga has a hardware BLITtter which can transfer the sprite data for us, and do logical operations super fast!...

The BLIT hardware will be easier to use if we use an 'interleaved' screen format, so we'll look at that too.


Interleaved bitplanes

In the past our screen has been set up with each bitplane in a separate block... so the VRAM first contaned the data for all the pixels of bitplane 0, then all bitplane 1, followed by 2 and 3.

This time, rather than splitting the screen into 'blocks' by bitplane, we'll split by 'lines'...

This time the VRAM will contain a line of 40 bytes containing that line pixel's bitplane 0, followed by Bitplane 1,2 and 3... the following data will be the next line.

Each line is 320 bytes pixels - 16 colors, so each bitplane will be 40 bytes, and 4 consecutive bitplanes will be 160 bytes.

The advantage of this is we can use the BLIT to fill all the bitplanes in one go... so if we want to draw a 48*48 4 bitplane sprite, we just copy an area 192 lines tall to copy all the bitplanes (48*4=192

0 0 $0000   40 pixels - 16 color
1 0 $0028
2 0 $0050
3 0 $0078
0 1 $00A0   40 pixels - 16 color
1 1 $00C8
2 1 $00F0
3 1 $0118
0 2 $0140   40 pixels - 16 color
1 2 $0168
2 2 $0190
2 2 $01B8
We don't need to do anything different defining our ram, it's still defined with "ds.b 320*200*4"

But we do need to change our screen definition, we need to set the screen memory pointers to the interleaved addresses,

We also need to set BPL1MOD/BPL2MOD to 120, to skip the 3 other bitplanes after each line (160-40=120)

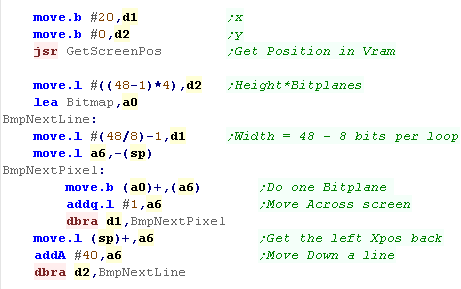

We can still draw sprites in software, we just need to change our code.

Effectively we draw 4x the height of the sprite, as there are 4 bitplanes vertically interleaved per visible line of pixels.
We'll need our sprite to be in a different format, but AkuSprite Editor has been upgraded for the Job!

There are new Interleaved export options for this example!

Bring on the BLIT!

The blitter can be used to combine bits from multiple sources and write the result to the destination (in our example VRAM), Remember A and B can be bitshifted, and A can be masked. The MinTerm we use will define the resulting data we write to D. the Sources A,B and C can be bitmap sprites, Masks or the current screen data (for XOR or masked sprites). ABCD must be in CHIP RAM.

Surprisingly Bitshifting does not affect speed, however unsurprisingly the more DMA channels we use, the slower the transfer will be.

Below are the ports we'll need to use to control the blitter... See the Amiga Hardware Manual for more Blitting details

Name Address Function Bits Details
BLTCON0 $DFF040 Blitter control register 0 SSSSABCD LLLLLLLL L=miniterms (Logical op)
ABCD=enable dmas SSSS= bitshift A
BLTCON1 $DFF042 Blitter control register 1 BBBB---- ---EICDL B=Bitshift B D=Descending mode
L=Line mode E=Exclusive fill I=Inclusive fill
C=fill Carry in
BLTAFWM $DFF044 Blitter first word mask for source A MMMMMMMM MMMMMMMM
BLTALWM $DFF046 Blitter last word mask for source A MMMMMMMM MMMMMMMM
BLTCPTH $DFF048 Blitter pointer to source C (high 3 bits) -------- -----HHH
BLTCPTL $DFF04A Blitter pointer to source C (low 15 bits) LLLLLLLL LLLLLLL-
BLTBPTH $DFF04C Blitter pointer to source B (high 3 bits) -------- -----HHH
BLTBPTL $DFF04E Blitter pointer to source B (low 15 bits) LLLLLLLL LLLLLLL-
BLTAPTH $DFF050 Blitter pointer to source A (high 3 bits) -------- -----HHH
BLTAPTL $DFF052 Blitter pointer to source A (low 15 bits) LLLLLLLL LLLLLLL-
BLTDPTH $DFF054 Blitter pointer to dest D (high 3 bits) -------- -----HHH
BLTDPTL $DFF056 Blitter pointer to dest D (low 15 bits) LLLLLLLL LLLLLLL-
BLTSIZE $DFF058 Blitter size (window width,height) + START! HHHHHHHH HHWWWWWW
BLTCON0L $DFF05A Blitter control 0, lower 8 bits (minterms)

BLTSIZV $DFF05C Blitter V size (for 15 bit vertical size)

BLTSIZH $DFF05E Blitter H size and start (for 11 bit H size)

BLTCMOD $DFF060 Blitter modulo for source C MMMMMMMM MMMMMMMM
BLTBMOD $DFF062 Blitter modulo for source B MMMMMMMM MMMMMMMM
BLTAMOD $DFF064 Blitter modulo for source A MMMMMMMM MMMMMMMM
BLTDMOD $DFF066 Blitter modulo for destination D MMMMMMMM MMMMMMMM


'MinTerms' are Logical operations used by BLIT function - these are selected by the bottom 8 bits of BLTCON0 ($DFF040)

In the charts below, ! means NOT (Bits flipped)... in bit logic terms * is effectively AND ... + is effectively OR


D=A*B $88
$30 D=A*!B $44 D=B*!C
$0C D=!A*B         $22 D=!B*C
D=!A*!C $03 D=!A*!B $11 D=!B*!C

D=A+B        $EE
D=A+!B $DD
D=A+!C $77
D=!A+B $FE
D=!A+C $80


$F0 D=A PSET   A=Sprite   D=ScreenRam
A=SpriteMask   B=Sprite   C=CurrentScreenRam   D=ScreenRam
A=Sprite   C=CurrentScreenRam   D=ScreenRam

The above  examples can also be performed in other ways!

Combining Minterms

Multiple Minterms can be added by ORing... for example:

D=A is $F0
D=!B is $33
so... D=A+!B is $F3

Multiple minterms can be multiplied by ANDing... for example:

D=A is $F0
D=C is $AA
so D=A*C is $A0

'Minterms' are a boolean algebra thing!... but you only need to know which number code to use for your blitter.

If you're feeling brainy, and want to become a super smarypants, you can learn more about Minterms here... Just be careful your head doesn't explode with all the maths!

Blitting examples

In this example we'll use the blitter to show a PSET sprite, an XOR sprite
Bitshift a sprite a few pixels, and show a sprite with transparency mask.

We'll also show a CPU drawn sprite (The one with the odd colors)
Before we can use the blitter, we need to ensure it's DMA is enabled with bit 6 of DMACON

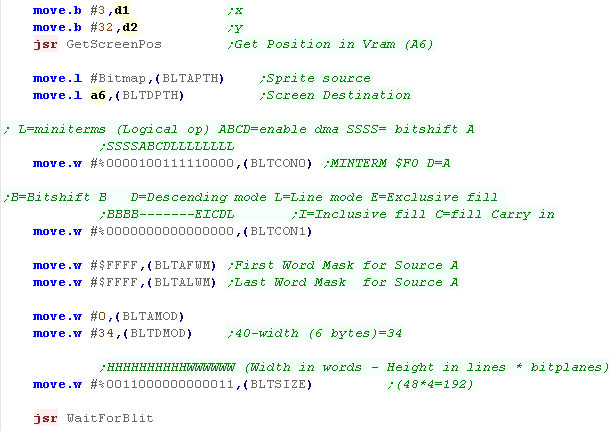

First lets try a simple operation PSET!
This will transfer our sprite, replacing anything in the background.
We'll use Minterm "$F0 D=A" for this ... essentially setting the VRAM (D) to the Sprite (A) in all cases.

To start with we need to calculate the VRAM address... we use GetScreenPos to covert an X,Y position into a VRAM pointer (A6)

Next we need to set the source for A with BLTAPTH (Our Sprite) and the destination D with BLTDPTH (VRAM from A6)

We need to enable the DMA for A+D, and set the Minterm with BLTCON0
We set BLTCON1 to 0 - we don't need any of it's options.

If we're pixel shifting we may need to set BLTAFWM/BLTALWM to something strange, but we aren't so we set these to $FFFF

After each screen draw we need to skip 34 bytes to get to the next line (40 byte screen - 6 byte wide sprite)... we need to skip nothing for our source sprite... we set BLTAMOD and BLTDMOD accordingly

We need to set BLTSIZE to our sprite size... our sprite is 6 bytes wide (3 words) and 48 lines * 4 bitplanes (192 lines)

Setting BLTSIZE starts the copy operation!
The blitter works while we're doing other things, so we need to check if it's done before we send another job, we can do this by testing bit 14 of DMACONR
We can use the blitter with XOR too - to do this we need to use the current VRAM as a source too (C).

We use this with the sprite, inverting the VRAM (C) where the sprite is set (A) and writing back to VRAM (D)

The Minterm we're using is "$5A = !AC+A!C" - though there are other ways of getting this effect.

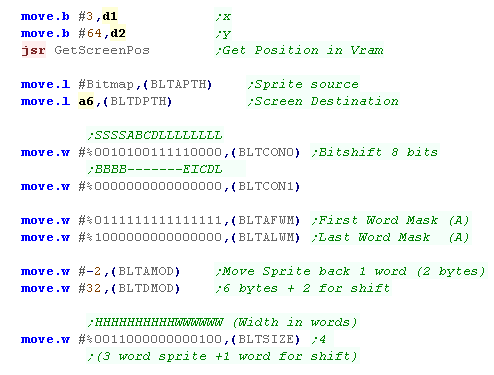

Our sprites and destination addresses have to be specified in words (16 pixels),

We can get around this by bit shifting source A or B using the top 4 bits of BLTCON0/1

we also need to set an appropriate bit mask for the leftmost and rightmost word of each line of Source A with BLTAFWM/BLTALWM
This time we'll create a 'Transparent' image.

This will use a 16 color image as usual, and a 'background mask' which will define the areas of the background which will be left unchanged by the sprite.
This time we'll need all 3 sources
A will be our Color sprite,
B will the background mask (also 4 bitplanes)
C will be the background VRAM (used for the mask)
D will be the screen destination

This time the Minterm we'll use is "F8 = A + !B*C " - once again there's many other ways we could achieve the same effect.

Lesson P38 - Mouse Reading on the Genesis
Lets look this week at that rare species of rodent... The Genesis Mouse!

The mouse connects to the standard ports, and with the right commands, we can get mouse movements from it!


Mouse Reading

The Genesis mouse can be read from the standard joystick ports.

We need to write #%01100000 to $A10009 for Joy Port 1, or $A1000B for Joy Port 2
We then send and receive bytes from port $A10003 for Joy Port 1, or $A10005 for Joy Port 2

Here is the sequence of bytes we send, and bits we receive back:

Sent Byte Received Bits

      6            5            4      3 2        1

$60 0 1 1 1 0 0 0 0
$20 0 0 1 1 1 0 1 1
$00 0 0 0 1 1 1 1 1
$20 0 0 1 1 1 1 1 1
$00 0 0 0 1  Y Overflow
 X Overflow
 Y Sign X Sign   Overflow flag / Move direction
$20 0 0 1 0 Start Middle Left Right   Buttons
$00 0 0 0 1 X axis High nibble   X
$20 0 0 1 0 X axis Low nibble
$00 0 0 0 1 Y axis High nibble
$20 0 0 1 0 Y axis Low nibble
$60 ? ? ? ? ? ? ? ?   Transfer Stop

Sample code

Here is an example program which will send the correct sequence, and read in the response bits.

The example here is set up to read in from Joystick port 2

It will merge the X and Y nibbles, returning the following 4 bytes:
D2 Buttons %----SMLR
D3 Overflow / sign  %---YXyx

Converting to X,Y co-ordinates

Lets convert the X and Y mouse movements into a 16 bit value we could use in a game!

We'll put a hardware sprite in the mouse position, so we can see what's happening
We're going to put a hardware sprite on screen at the pixel co-odinate of our sprite.

The low byte of the x/y co-ordinate is a 'fractional move' - so we ignore this,
For hardware sprites the top left screen pixel is (128,128)
We run our mouse reading routine... we're showing all the registers to the screen too - so we can see what's going on.
We check the sign bit of the X axis - and either add or subtract the X move from the current position.

If we're subtracting we sign extend the byte to 32 bits.
We do the same for the Y axis - Note, the axis goes the opposite way to the sprite co-ordinates, so we've reversed the way we process the Sign bit.

*** Public Service announcement *** Don't let this disaster happen to you too!
If you leave a mouse connected to port 2, Mega CD game "Mansion of Hidden Souls" will lock up at start up until you remove it!!!
Who knows if this is the only game that misbehaves this way, but it caused the author of these tutorials a lot of annoyance, so maybe it's worth bearing in mind!


View Options
Default Dark
Simple (Hide this menu)
Print Mode (white background)

Top Menu
***Main Menu***
Youtube channel
Email Newsletter
Merch Store
Amazon Affiliate Link
AkuSprite Editor
Dec/Bin/Hex/Oct/Ascii Table

Alt Tech
Please note: I wlll upload more content to these alt platforms based on the views they bring in

Z80 Content
***Z80 Tutorial List***
Learn Z80 Assembly
Hello World
Advanced Series
Multiplatform Series
Platform Specific Series
ChibiAkumas Series
Grime Z80
Z80 Downloads
Z80 Cheatsheet
DevTools kit
Z80 Platforms
Amstrad CPC
Elan Enterprise
Gameboy & Gameboy Color
Master System & GameGear
Sam Coupe
ZX Spectrum
Spectrum NEXT
Camputers Lynx

6502 Content
***6502 Tutorial List***
Learn 6502 Assembly
Advanced Series
Platform Specific Series
Hello World Series
Grime 6502
6502 Cheatsheet
DevTools kit
6502 Platforms
Apple IIe
Atari 800 and 5200
Atari Lynx
BBC Micro
Commodore 64
Commander x16
Super Nintendo (SNES)
Nintendo NES / Famicom
PC Engine (Turbografx-16)
Vic 20

68000 Content
***68000 Tutorial List***
Learn 68000 Assembly
Hello World Series
Platform Specific Series
Grime 68000
68000 Cheatsheet
DevTools kit
68000 Platforms
Amiga 500
Atari ST
Neo Geo
Sega Genesis / Mega Drive
Sinclair QL
X68000 (Sharp x68k)

8086 Content
Learn 8086 Assembly
Platform Specific Series
Hello World Series
8086 Cheatsheet
DevTools kit
8086 Platforms

ARM Content
Learn ARM Assembly
Platform Specific Series
ARM Downloads
ARM Cheatsheet
DevTools kit
ARM Platforms
Gameboy Advance
Nintendo DS
Risc Os

Risc-V Content
Learn Risc-V Assembly
Risc-V Downloads
Risc-V Cheatsheet
DevTools kit

PDP-11 Content
Learn PDP-11 Assembly
PDP-11 Downloads
PDP-11 Cheatsheet
DevTools kit

TMS9900 Content
Learn TMS9900 Assembly
TMS9900 Downloads
TMS9900 Cheatsheet
DevTools kit
TMS9900 Platforms
Ti 99

6809 Content
Learn 6809 Assembly
6809/6309 Cheatsheet
DevTools kit
6809 Platforms
Dragon 32/Tandy Coco
Fujitsu FM7
TRS-80 Coco 3

65816 Content
Learn 65816 Assembly
65816 Cheatsheet
DevTools kit
65816 Platforms

eZ80 Content
Learn eZ80 Assembly
eZ80 Downloads
eZ80 Cheatsheet
DevTools kit
eZ80 Platforms

Work in Progress

Misc bits
Ruby programming

Buy my Assembly programming book
on Amazon in Print or Kindle!

Buy my Assembly programming book

Available worldwide!
Search 'ChibiAkumas' on
your local Amazon website!
Click here for more info!

グルテンフリー Gluten-free

Buy my Assembly programming book
on Amazon in Print or Kindle!

Buy my Assembly programming book

Available worldwide!
Search 'ChibiAkumas' on
your local Amazon website!
Click here for more info!

グルテンフリー Gluten-free

Buy my Assembly programming book
on Amazon in Print or Kindle!

Buy my Assembly programming book

Available worldwide!
Search 'ChibiAkumas' on
your local Amazon website!
Click here for more info!

グルテンフリー Gluten-free
