Lesson P21 - Sound on the Gameboy and GBC
The Gameboy sound chip is a little weird! It has 4 sound channels, but each has different properties
Channel 2 is a basic Tone channel
Channel 1 is a Tone channel, with Sweep function
Channel 3 is a 'Wave channel' (only 32 bytes!)
Channel 4 is a noise Channel.

Gameboy Color Registers
As with all other registers, The registers that control sound on the GBC are memory mapped, they're pretty easy to use, but there are a lot of them!
Section Addr Name Bits Bit Meaning
Sound FF10 NR10 - Channel 1 (Tone & Sweep) Sweep register (R/W) -TTTDNNN T=Time,D=direction,N=Numberof shifts
Sound FF11 NR11 - Channel 1 (Tone & Sweep) Sound length/Wave pattern duty (R/W) DDLLLLLL L=Length D=Wave pattern Duty
Sound FF12 NR12 - Channel 1 (Tone & Sweep) Volume Envelope (R/W) VVVVDNNN C1 Volume / Direction 0=down / envelope Number (fade speed)
Sound FF13 NR13 - Channel 1 (Tone & Sweep) Frequency lo (Write Only) LLLLLLLL pitch L
Sound FF14 NR14 - Channel 1 (Tone & Sweep) Frequency hi (R/W) IC---HHH C1 Initial / Counter 1=stop / pitch H
Sound FF16 NR21 � Channel 2 (Tone) Sound Length/Wave Pattern Duty (R/W) DDLLLLLL L=Length D=Wave pattern Duty
Sound FF17 NR22 - Channel 2 (Tone) Volume Envelope (R/W) VVVVDNNN C1 Volume / Direction 0=down / envelope Number (fade speed)
Sound FF18 NR23 - Channel 2 (Tone) Frequency lo data (W) LLLLLLLL pitch L
Sound FF19 NR24 - Channel 2 (Tone) Frequency hi data (R/W) IC---HHH C1 Initial / Counter 1=stop / pitch H
Sound FF1A NR30 - Channel 3 (Wave Output) Sound on/off (R/W) E------- 1=on
Sound FF1B NR31 - Channel 3 (Wave Output) Sound Length NNNNNNNN Higher is shorter - no effect unles C=1 in FF1E
Sound FF1C NR32 - Channel 3 (Wave Output) Select output level (R/W) -VV----- VV=Volume (0=off 1=max 2=50% 3=25%)
Sound FF1D NR33 - Channel 3 (Wave Output) Frequency's lower data (W) LLLLLLLL Low frequency
Sound FF1E NR34 - Channel 3 (Wave Output) Frequency's higher data (R/W) RC---HHH H=high frequency C=counter repeat (loop) R=Restart sample
Sound FF20 NR41 - Channel 4 (Noise) Sound Length (R/W) ---LLLLL L=Length
Sound FF21 NR42 - Channel 4 (Noise) Volume Envelope (R/W) VVVVDNNN Volume / Direction 0=down / envelope Number (fade speed)
Sound FF22 NR43 - Channel 4 (Noise) Polynomial Counter (R/W) SSSSCDDD Shift clock frequency (pitch) / Counter Step 0=15bit 1=7bit (sounds eletronic)/ Dividing ratio (roughness)
Sound FF23 NR44 - Channel 4 (Noise) Counter/consecutive; Inital (R/W) IC------ C1 Initial / Counter 1=stop
Sound FF24 NR50 - Channel control / ON-OFF / Volume (R/W) -LLL-RRR Channel volume (7=loud)
Sound FF25 NR51 - Selection of Sound output terminal (R/W) LLLLRRRR Channel 1-4 L / Chanel 1-4R (1=on)
Sound FF26 NR52 - Sound on/off A---4321 read Channel 1-4 status or write All channels on/off (1=on)
Sound FF30 �
Wave Pattern RAM HHHHLLLL 32 4 bit samples
As always, we just need to write our data to the memory addresses between &FF10-&FF3F to set the sound options...Whatever you're trying to do Just don't forget to turn the sound on with FF24 and FF25!

If you're not using sound, turn off the channels with FF26

Channel 2 - Tone
Before we try to make any sounds, we need to set the system volume, and turn on some sound channels!

Each channel is turned on with a 1 bit for the left and right speaker, and the overall volume is 0-7 for each speaker.

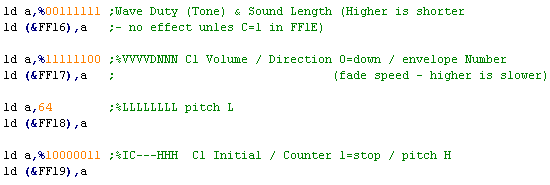

The tone channels have a few configurable parameters... Firstly (of course) is the tone, defined bt 11 bits in &FF18 and &FF19

We can also define a length, if we want, though it will not have any effect unless the Counter bit in FF19 is set to 1... there si something called the 'Wave Duty' which changes the shape of the tone, try it for different sounds

We can also define a volume, and an Envelope, envelopes are just a 'fade' - 0 is off, 1 is fast, and 7 is slow... we can fade in or out depending in Direction and start volume

We need to set the 'Initial bit' to 1 to actually start the sound!

Channel 1 - Tone & Sweep
Channel 1 is basically thesame as Channel 2, but with an extra 'Sweep funcion'
The sweep function allows us to change the pitch of the sound over time...
If we do not want this, we can simply set it to 0... however any other value will make the tone change over time, and lower values in T and N will make the tone change faster

Channel 3 - Wave
If we're going to use the wave channel, we need some sound data...

The Wave channel uses 16 bytes, with 4 bits per sample...

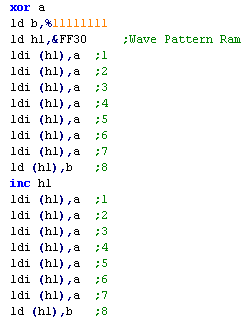

we need to fill the area &FF30-FF3F with some wave data to make a sound,

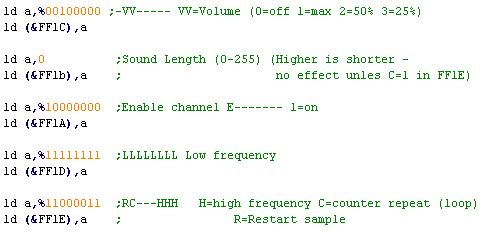

Making the sound play is also similar to the tone channels, however we have fewer options,

Wwe only have 4 options for the volume, and we have no envelope we can use.

The Gameboy may have a 'Wave' Channel, but don't think that you're going to be doing speech or anything... not with 32 samples!

Check out Beatmania on the Gameboy, then look at the Wonderswan version... The Gameboy totally got it's ass handed to it by the WS didn't it!
If you want to emulate AY, you can use the Wave channel as another Tone channel... it's a bit of a pain, but it works ok!

If you want to play digital wave files, check out this tutorial!

Channel 4 - Noise
The Noise Channel has a lot in common with the Tone Channels

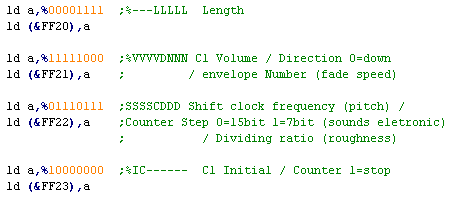

Rather than a frequency, The Noise sound is defined by  &FF22 ... SSSS is essentially the pitch... low numbers are white noise, high numbers are a low rumble... the Dividing ratio will change the roughness of the sound, making it sound less 'crisp'...

We can aslo change the Counter step, which will make the noise sound eletronic, which may be depending on the effect you're trying to make

As always, it's best to try different settings to get the sound you're after.

Now we know how to make the sounds work, we can easily write ChibiSound...
We're not covering it here, but it's in the source code, so just go ahead and download it if you want to take a look!

Lesson P22 - Sound with the SN76489 on the Master System, GameGear, Megadrive (Genesis) and BBC Micro!
The SN76489 Sound chip is used on the Master System, GameGear and BBC Micro... while the Genesis does have superior sound, it has backward capability with the older Master System - so we'll use it for now, as all we're trying to do is make simple beeps anyway!

Basics of the SN76489
The sound chip takes all its data from a single 8 bit port...
The 7th bit is the 'latch bit' which tells the chip if a new command is being sent (1) or a second part of the last command (0)
Bits 6 and 5 are the channel number... 0-2 are tone chanels, 4 is the noise channel
Bit 4 is the 'Type bit'... 0 defines the sound... 1 defines the Volume

The purpose of the remaining bits (0-3)  vary depending on the first 4

Command Bit Details  7  6  5  4  3  2  1  0
Format Template L=Latch C=Channel T=Type XXXX=Data L C C T D D D D

Tone - Command 1/2 C=Channel L=tone Low data 1 C C 0 L L L L
Tone - Command 2/2 H= High tone data (Higher numbers = lower tone) 0 - H H H H H H
Volume C=Channel (0-2)  V=Volume (15=silent 0=max) 1 C C 1 V V V V
Noise Channel (Channel 3)  M=Noise mode (1=white) R=Rate (3=use tone 2) 1 1 1 0 - M R R

Making a Tone

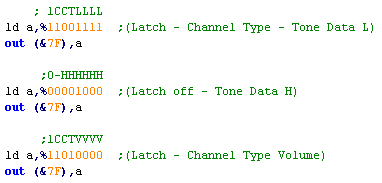

To make a tone we will probably want to send 3 bytes to the same channel

The first one will define the Low 4 bits of the Tone (Latch will be 1)

The second will be the High 6 bits (Latch will be 0)

If we want to change the volume, we'll need to send a 3rd byte
Volume is defined by 4 bits (0=max volume).. the Latch will be 1 - there is no second (latch0) byte for a volume command

Making a noise!

Using the Noise channel is similar, though we send no second byte with the latch off..

We have 3 bits to control the nosie, bit 2 is the Mode - we can either have white noise (1) or eletronic nose (0)

The Rate bits can be 0-2.... setting a rate of 3 will link the rate to the frequency of Tone Channel 2... if you do this you'll probably want to mute tone channel 2 by setting it's volume to 15

Making use of the SN76489 on different systems...
Whatever the destination platform or CPU, the command data above will work the same, however what we need to do to send that data to the sound chip will vary...

lets take a look at how to get our command data to the sound chip on various systems that use it!

The Mastersystem and GameGear
The examples above were from the Mastersyem! On the SMS/SGG we just send all our data to port &7F!

The Sega Genesis / Megadrive
If we're getting the Genesis Z80 to control the SN76489, we can just send data to port &7F again!
Unlike the NeoGeo, we can access the sound chip from the 68000 - which is probably easier!... we do this by writing to port &C00011
The data we send is identical to the SMS/GG - but the 'White Noise' generated by the Genesis is lower pitch, so you may need to change the frequencies you use for noise.

The BBC Micro

The Sound Chip shares a port with the keybord... Before we can send any data to the sound chip, we have to set the port to WRITE... we do this by writing 255 to address $FE43 (we only do this once)

Once we've done that, we can write our data to $FE41 in the same way as the examples above!

Chibisound is just for Beeps and SFX... if we wanted to do proper music on the Genesis, it would be best to use the Z80... we could even use ArkosPlayer!

Then again, we'd probably want to use the YM2612 sound chip instead!

Not impressed by a few beeps... Well Fine! Check out this tutorial, It'll teach you how to play wave files and digital sample

Lesson P23 - Sound with the 'Beeper' on the ZX Spectrum and Apple II
While most of the systems we have looked at have 'proper sound processors... unfortunately not all do!

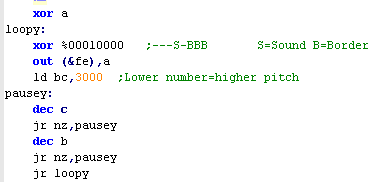

Before the 128k systems,The ZX spectrum 48k  only had what's known as a 'beeper speaker'... this is also used by the Apple II
It's not pretty... but we can use it to make sounds!

The Beeper is the worst possible sound system! but we can make something out of it!... with just one bit controling the sound... we can 'blip' the sound - which has the effect of sending a pulse to the beeper (shown by the red arrows to the right)

By altering the time between these 'blips' we can affect the pitch of the resulting tone!... the upside is we can make a good range of tones... the downside is, we don't have any volume control... and we'll pretty much have to use all our CPU power calculating the delay between the 'blips' re-sounding the blips...

This means, unlike the other options, sound will not play during normal operation... which is why background music isn't really a thing on the ZX Spectrum 48k!

If we want to make a distorted noise, that's pretty easy too... all we need to do is 'randomly' skip some of the 'blips'... the tone will sound rough and destorted as a result!
Really, we're having to create the waveform ourselves here by creating high and low peaks... it's a real pain to do, but if you're very clever you can do some impressive stuff!

There is some sourcecode online for some speccy 'music players' online that can play 'proper' multi-channel music using the beeper speaker if you really want to push the 48k systems to the max!
ZX Spectrum 48k & Beeper- The various uses of Port &FE!
Port FE on the speccy controls the border, tape (Mic) and Beeper sound

The "Beeper" sound chip is incredibly crude... it is controlled by bit 4 of the port &FE... by turning it on and off we can make simple sounds...

See the example to the right... by changing the pause (caused by BC) we can change the pitch of the sound... 3000 will be a relatively low pitch... 500 will be higher...

Some clever programs even manage to "Fake" multiple sound channels!

The big disadvantage to all this is that the CPU will be busy during the whole time, so the Beeper chip isn't very helpful, and we'll want to use the AY sound chip on the 128k systems... but on the 48k machines, it's all we've got!
Beeper sound on the Apple II
The principle on the Apple II is the same, however instead of writing bits to a port, we simply READ from $C030

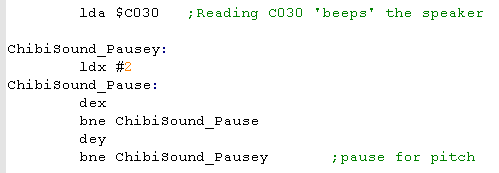

The beeper hardware is connected to memory address $C030... and reading from $C030 has the effect of causing the Beeper to flip the wave... it's weird that we read not write..., but that's what we do!

Each time we do, it will flip the sound wave, again we need to wait a while depending on the frequency, then loop the operation to keep the sound playing!
When we want to make a noise, we need some random data!
On the speccy Chibisound uses the R register... on the Apple, it uses the sourcecode of the program itself as a pseudorandom source....
All we need to do is skip some of the 'blips' depending on a bit of the random data... it will make the sound more rough!
Ever heard the speech samples on those old games? you can do that too!

Playing wave files is pretty easy... see here

Lesson P24 - Bankswitching and hardware detection on the Amstrad CPC
It's time to move on from sound, and start looking at other hardware!...

We're going to start looking now at Bankswitching - to allow us to gain access to the extra RAM and ROM ... we'll also learn how to detect what hardware is available in software - so we can have one game version that works with extra ram (and other things) when we can!

The Gate Array!
Ram And Rom banking is handled on the CPC by the Gate array is at port &7Fxx... It has multiple purposes depending on the top two bits passed in the C byte
We'll need it on the CPC to bankswitch RAM, and CPC+ to access cartrige ROM!
 7  6  5  4  3  2  1  0 Name Bit meanings
0 0 - B P P P P Palette selection B=Border    P=Pen (0-3 / 0-15)
0 1 - C C C C C Palette color selection C= Clolor number (0-26)
1 0 - I H L M M Rom / Mode I= Interrupt mode   H=High rom bank   L=Low rom bank   M=screen mode
1 1 B B B R R R Ram Bank R = Ram config    B= Bank number (0=128k 1+2=256k etc)

Ram banks on the CPC
By default the Amstrad CPC has 64k or 128k, but it can actually support up to 576k!... since we can only address 64k of ram we have to page in part of the extra memory into the normal address space,
We do this by OUTing a byte from &C0-&FF to port &7F...

If we try to turn on an extra bank on a 64k machine, nothing will happen
If we try to turn on a 192k bank (C9-CF) on a 128k machine, we will get the equivalent 128k bank
We can use these facts to detect the amount of memory!

64K 128K 192K And so on!
Area C0 C1 C2 C3 C4 C5 C6 C7 C8 C9* CA CB* CC CD CE CF D0-FF
&0000 RAM_0 RAM_0 RAM_4 RAM_0 RAM_0 RAM_0 RAM_0 RAM_0 RAM_0 RAM_0* RAM_8 RAM_0* RAM_0 RAM_0 RAM_0 RAM_0 ...
&4000 RAM_1 RAM_1 RAM_5 RAM_3 RAM_4 RAM_5 RAM_6 RAM_7 RAM_1 RAM_1* RAM_9 RAM_3* RAM_8 RAM_9 RAM_10 RAM_11 ...
&8000 RAM_2 RAM_2 RAM_6 RAM_2 RAM_2 RAM_2 RAM_2 RAM_2 RAM_2 RAM_2* RAM_10 RAM_2* RAM_2 RAM_2 RAM_2 RAM_2 ...
&C000 RAM_3 RAM_7 RAM_7 RAM_7 RAM_3 RAM_3 RAM_3 RAM_3 RAM_3 RAM_11 RAM_11 RAM_11 RAM_3 RAM_3 RAM_3 RAM_3 ...
* Bank mode C9 and CB may not work on all hardware - it depends on the memory upgrade.

Turn on the CPC Plus:
We've covered it before, but remember, by default The CPC+ features are disabled, leaving us with only a regular CPC... to use the PLUS features, we need to send a series of 17 bytes to the CRTC at port &BCxx

Once the CPC+ features are on, a special bank of 16k 'ASIC' memory will become available, which we can write to between &4000-&7FFF in the same way as our normal memory.

To Turn it on we use:
    ld bc,&7fb8
    out (c),c
To turn it off we use:
    ld bc,&7fa0
    out (c),c

NOTE: When using the ASIC memory, We should make sure that we're using the 128k banks are disabled, or it can cause problems with some 128k ram upgrades. Mode C1/C3 are OK to use as they  page in at &C000

ASIC RAM and Cartridge ROM on the CPC+:
Asic Ram, when enabled appears at &4000-&7FFF, but we also have cartridge ROM

On a CPC+ the Cartrige ROM has 32 banks... numbered 0-31... Banks 0-7 are intended to act as system ROM, appearing between &0000-&3FFF... however ANY bank (0-31) can be paged in at &C000-&FFFF - the same area as screen memory! Even better, if we WRITE to this area - it will be written to the screen RAM through the rom, so we don't need to page out the ROM to write data to the screen!

Setting a rom bank is easy, we write the ROM we want to port &DF... values 0-7 will set the Low rom area number... setting the High rom area is done by adding 128 to the rom we want, and OUTing it to &DF

Once we've selected it we still need to enable the rom, and we do this by writing to Bit 3 of the Gate array!

Area  Normal mode  Asic Regs ON   Low ROM ON  High ROM on
&0000 RAM_0 RAM_0 Cart 0-7 RAM_0
&4000 RAM_1 Asic RAM RAM_1 RAM_1
&8000 RAM_2 RAM_2 RAM_2 RAM_2
&C000 RAM_3 RAM_3 RAM_3 Cart 0-31

To detect a CPC Plus, we send the PLUS sequence, and turn on the ASIC ram.. .if nothing happened we don't have a CPC+... we can use this fact to detect a CPC!

While you can write to ASIC ram just like normal memory, don't rely on being able to read from it!
The development of ChibiAkumas ran into a problem, because reading the CPCPlus interrupt line from the ASIC worked on emulators... but not real hardware!
It's probably best to assume you can't read back any writable ASIC values!

Detecting the CPC+ and RAM:

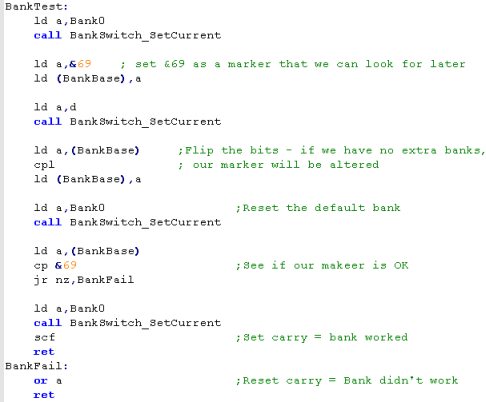

So to detect RAM and the PLUS ASIC, we need to set a byte in our normal memory, turn on the feature (RAM or ASIC)... and WRITE to the same location - then turn off the feature...

If the byte we wrote isn't there, then we know the feature does not exist!

In this code we'll use &69 as a byte that we'll write to the test location, and CPL to flip the bits of the location when we test.

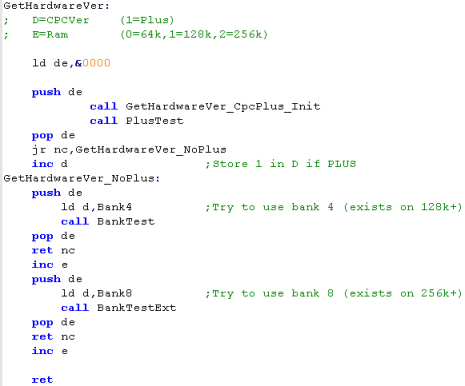

Hardware and Ram detection:
While each system is different We're going to use a fairly generic detection function...
It will return a value in DE... where D is the hardware type and E is the memory available

On the CPC, D will be 1 if the machine is a PLUS, and E will be 0,1 or 2 depending if the machine is 64k,128k or 256k

It's intended this function is executed at the start of your program, so the game can switch to different functions (or even load a different version of the game) depending on the platform.
We'll be creating similar functions on all our other systems, but the data returned will be different, because there's no such thing as a Gameboy with ASIC ram or 512K... or a CPC with an 8mhz GBZ80 CPU!

Lesson P25 - Bankswitching and hardware detection on the MSX
The MSX has the most complex bank switching due to its upgradability, unfortunately it doesn't tend to help us!
Most MSX1 have 16k, and most MSX2 have 64k, so bankswitching is really about getting cartridge or system rom, than gaining extra memory

The Theory... Brace yourself!
The Theory of MSX slots is complex and annoying!
It's probably best to just ignore them!!! If you're game is on cartridge, just make do with 16k of ram at &C000 - as that's all MSX1 machines have... if your game is MSX2 on disk, Just use THIS

MSX Banks, Slots and Subslots... Oh my!
The MSX memory layout is far more advanced and powerful than other 8 bits... unfortunately that tends to just mean that it's more annoying!

Take a look at an MSX! You'll see it has 1 or usually 2 cartridge slots... right?... well actually there are two extra slots! 0 and 3 are 'internal' slots used by the system itself... so we have slots 0-3... simple right... actually no!

A 'Slot' can (but is not always) be split into 4 subslots... also numbered 0 to 3
EVERYTHING is in a slot, so RAM and ROM are in a slot somewhere... but unfortunately they aren't in the same place on all machines!... Slot 1 and 2 are always the cartridge slots, but the RAM could be in slot 3, or in slot 0-2 (slot 0 subslot 2)

It's all quite annoying!

The MSX memory map is split into 4 16K chunks, and each bank can be 'pointed' to one of the 3 slots... If the slot is expanded, each of these banks can be set to a different subslot... so bank 0 can point to 0-0 (slot 0 subslot 0), and bank 1 can point to 0-2 (slot 0 subslot 2)... while banks 2 and 3 could point to slot 3!

It needs to be understood that each slot has 4 banks for a full 64k - so when bank 0 and 1  points to slot 3-0... they are different 16k chunks... also in this case it is not possible to swap them round... Bank 0 (&0000-&3FFF) of the Z80 memory cannot point to bank 1 (&4000-&7FFF) of the Slot

So suppose we have the following set up:

Slot 0 0-0 0-1 0-2 0-3
Slot 1 1 Unexpanded slot
Slot 2 2-0 2-1 2-2 2-3
Slot 3 3-0 3-1 3-2 3-3


Z80 Banks
The Z80 address range is split into 4 banks of 16k (also known as pages)
We may see a systems setup at boot in the following... Remember Slot 3-0 will have 4 different memory banks, but they can only be mapped into the matching positions of the Z80 address range.

*** We can only map a Z80 bank to the MATCHING slot bank!

Slot Selection Register
Which Slot the Z80 will see in each bank is defined by the slot selection register at port &A8... it's 8 bits define all 4 banks slot number... each 2 bits define the slot number for an area of the address range

Port &A8 Bits 7 6 5 4 3 2 1 0
Bank number     3 (&C000-&FFFF)     2 (&8000-&BFFF)     1 (&4000-&7FFF)     0 (&0000-&3FFF)

Sub-Slot Selection
Not all slots are expanded.... but it's easy to tell if they are, on boot addresses &FCC1-&FCC4 will be configured to record if slots 0-3 are expanded... the top bit (bit 7) will be 1 if they are.

If a slot IS expanded... there will be a memory mapped register at memory address &FFFF

The format is the same as the slot selection register

Subslot 0 &FFFF Bits 7 6 5 4 3 2 1 0
Subslot number     3 (&C000-&FFFF)     2 (&8000-&BFFF)     1 (&4000-&7FFF)     0 (&0000-&3FFF)

We need to check if a slot is expanded before we write to &FFFF... also remember that this register only exists in subslot 0... so we need to page in subslot 0 to Bank 3 before we can change it!
Detected Expanded slots!
The Subslot register won't exist at &FFFF if the slot is not expanded, so we need some way to detect if it is, fortunately, the firmware does this for us, and sets 4 memory locations accordingly... the top bit (bit 7 will be 1 if the slot is expanded
Slot     Address
1 &FCC1
2 &FCC2
3 &FCC3
4 &FCC4

Memory Mappers
As mentioned, we can only map a bank of ram in a slot to the matching bank in the Z80 range... wouldn't it be nice if we could map a bank of ram to ANY bank of the Z80 range?

Well actually we can!... in theory!
A slot CAN have something called a 'Memory Mapper'... what's this? well it allows exactly what I just mentioned... any one of the 16k banks in the slot can be mapped to the that slots position...  we still need to map in the slot (and subslot if required) but that slot can expose any bank of memory... this also allows us to address more than 64k... we can have up to 512k!

We select a slots memory mapping using 4 ports...  note we can only write to these - we cannot rely on reading from them
Port   Z80 Address range Default value
&FC &0000-&3FFF 3
&FD &4000-&7FFF 2
&FE &8000-&BFFF 1
&FF &C000-&FFFF 0
A system may have more than one Memory mapper...one internal, and one in an upgrade... but they will all set at the same time with these ports... we will still need to page in the slot-subslot using the usual method to get access to the memory.

So Memory mappers are more flexible, and allow more memory... what's not to like?.... well almost NO MSXes have them... even with the MSX2+, most MSXes do not have them... so unless your game is Turbo-R only, you're not going to be able to use them!
Some MSX memory mappers can be read from, but others can't... so don't do it!
Remember what you wrote back last time, if you need to know! also remember, that a Turbo-R with a MegaFlashRom will have TWO mappers... they both share the same ports, so it just depends what slot is in each bank when it comes to what the Z80 will see!

Cartridge Mappers
Cartridges also have 'mappers'... though they work differently - we just WRITE the bank number to a special address in the ROM, and the ROM will switch it's bank for us!

There are various mappers, but we'll look at "Konami with SCC" (Konami5) , it provides 4 rom areas that can be reconfigured - note they do not cover the whole Z80 range - as the bottom bank is assumed to be ROM, and the top bank is assumed to be RAM

Area   Z80 Address Range   Write Address to change bank
1 &4000-&5FFF &5000
2 &6000-&7FFF &7000
3 &8000-&9FFF &9000
4 &A000-&BFFF &B000

Minimum MSX configurations
So what can we expect from our MSXes memory wise, well here's what you need to assume you'll have!
System     MSX1   MSX2   MSX2+   Turbo-R
Memory 16k 64k 64k 256K
Disk System?   NO NO (sometimes) NO (usually - not always) YES
Mapper? NO NO NO (sometimes) YES
Soooo.... Effectively on the MSX1 we're pretty much going to have to rely on using Cartridge ROM, and we won't be able to use a Memory Mapper unless we're using the Turbo-R as the minimum requirement.

Practical Application... Finally!

Remembering the default slot layout
When our game starts, we should backup the current configuration of the Rom and RAM, we do this by reading IN port &A8 to get the slot config... and memory address &FFFF to get the subslot configuration... although we do need to flip the bits of the data in address &FFFF

It's wise to backup the default slot layout, as you will need to restore it if you need to use the firmware later to do jobs like disk access... just run the commands above as soon as your program runs, and save the two bytes needed to restore things for later!

Slot Switching

We're going to use a generic function for setting our Slot and Subslot into one of the Z80 banks of memory...

Because the slot/subslot registers combine all 4 slots in a single byte, we'll use a 'GetSlotMask' function to convert a slot number to a mask and new value - this will make altering one of the 4 values in that register easier.

It should also be noted that we should only change the subslot on an EXPANDED slot... unexpanded slots do not have any such register.

First we check if the slot is expanded, then we set the subslot if we need to. then we set the slot number - and we're done!

Getting to our memory!

We can't be sure where our memory will be on any unknown MSX our game runs on, we can't even be sure all 64k is in the same slot!
If our game is in ROM, we probably only want to use the &C000-&FFFF area as RAM, because that's all most MSX1 systems have,
but if our game is for the MSX2 and we want to use all 64k We need to find a way to locate our RAM so we can use it!

Finding Memory on Disk Systems

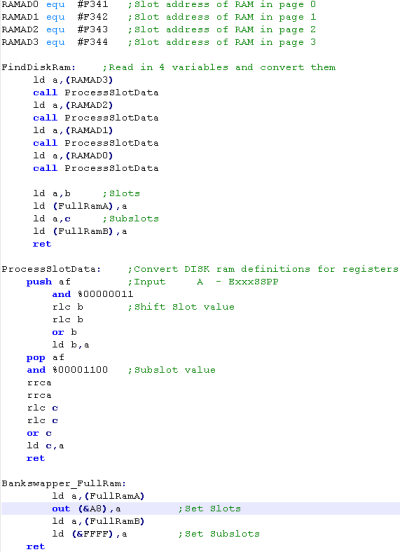

Finding the base 64k is really easy on disk systems... the boot sequence finds them for us, the Slot and Subslot will be stored in the low 4 bits of the memory addresses F341-F344 for bank 0-3 of the Z80 range... of course this will only be usable if we're releasing our game on a Floppy disk.

We'll need to convert the data in these to the correct format for the Slot register (&A8) and subslot register (&FFFF), but this is pretty easy, and we'll then have an easy way to get all the ram for our game!

The Code above is the way ChibiAkumas finds the memory on the MSX... as ChibiAkumas requires, and only needs 64k, and only comes on disk, this was an easy way to solve the problem of finding memory...
Of course, if you want to release a 64k+ cartridge game on the MSX2, you'll need an alternative, and we'll look at that now!

Finding Memory on Non-Disk Systems
To find the ram on a non disk system, we have to step through each slot and subslot and see if we can find a bank which is RAM

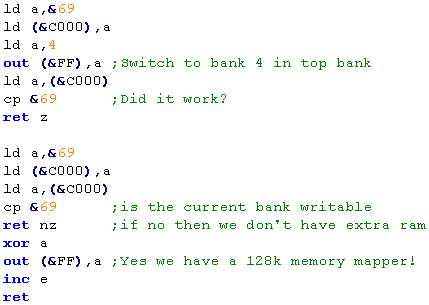

we do this by simply writing to the bank, and seeing if the data changed - if it did, then that's our ram bank, otherwise we move on to another bank.

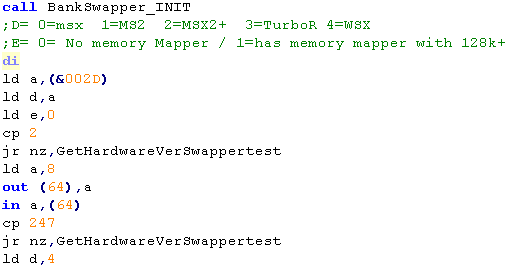

Detecting MSX version
We can recognize the basic MSX types simply by checking the value at memory address &002D

0 will mean an MSX1, 1=MSX2, 2=MSX2+ and 3=Turbo R

if we want to detect a WSX we can out '8' to port 64 / &40
when we read back, we should get the compliment of 8 if it's a WSX type... we need to know this as the WSX has a 6mhz option on it's CPU!

The need for SPEED!
The Turbo-R has a 7mhz   Z80 clone that runs up to 8x the regular speed of an MSX!
We can turn it on using the 'CHGCPU' firmware function at memory address &0180... we should do this when our game starts...

also the WSX has a special 6mhz Z80 that will make our game faster - we need to check if the machine is a WSX first, then out 0 to port 65 if it is... this will enable 7mhz mode!

Both these functions were used in ChibiAkumas!
The Turbo-R is 2-8 times faster than the Z80... but there are some oddities.. firstly it will turn off during disk loading - the z80 will do all the work (it'll also turn on automatically)... also the Turbo-R has a built in limitation to the OUT command (presumably to stop the R800 locking up other hardware with its speediness!)... it will actually perform OUT commands SLOWER than the Z80
The WSX has a 6mhz Z80... like the Turbo-R it has a limitation on it's OUT command speed...
More problematic is the AY sound chip... the frequencies are all different, so your sounds will come out a different pitch!
ChibiAkumas used an alternate pitch table for ArkosTracker on the WSX to compensate!

Finding a BankSwapper
We can detect a BankSwapper by trying to page in an extra bank of memory, and seeing if a writable bank was actually paged in... if it was, then we must have extra memory... if not, or we end up with ROM, or empty space that doesn't store anything then we mustn't have any extra memory.

Unfortunately, so few MSXes have BankSwappers or more than 64k of memory it's probably pretty pointless, unless you're making your minimum requirements the Turbo-R or the MegaFlashRom

Lesson P26 - Bankswitching and hardware detection on the ZX Spectrum
The original ZX Spectrum only had 48k of memory... but the later ones had 128k, rather strangely, however, the black +2 and the +3 have extra memory management options!
This makes spectrum memory management more confusing than it need be!
Lets take a look, and untangle it!

Memory Banks on the 128k ZX Spectrum

On the ZX Spectrum 128k, the memory banks are split into 4 16k chunks...

The bottom of these (&0000-&3FFF) is always ROM

This means we have 5 extra banks of memory we can page in... but there's a problem!

The top one (&C000-&FFFF) is the ONLY one we can page the extra memory into, and even worse, this is the ONLY position we can use as the second screen buffer
Bank Use
&0000 ROM
&4000 Screen 1 (5)*
&8000 Ram (2)
&C000 Screen 2 (7)*
* ZX Firmware uses &5B00-&6000
* +3 disk rom uses
&DB00-&E7FF - must be backed up or disk system will break!
The later spectrum have a more advanced mode, where we can get rid of the ROM and have memory in all banks!!

unfortunately... this is only available on the +3 and the BLACK +2 ... (not the grey +2... it's effectively a Spectrum 128)... as that means 85% of spectrums cannot use it, we can't really take advantage of it!
IF we COULD... then we would have access to 4 different bank setups
These were added to the spectrum to allow CPM to work - it required RAM at bank &0000 - meaning the original spectrum could not do it.
Bank Option 0
Option 1
Option 2
Option 3
&C000 Ram 3
Screen 2 (7)
Ram 3
Ram 3
&8000 Ram 2
Ram 6
Ram 6
Ram 6
&4000 Ram 1
Screen 1 (5)
Screen 1 (5)
Screen 2 (7)
&0000 Ram 0
Ram 4
Ram 4
Ram 4


Not all banks are equal on the ZX Spectrum!
Some of the banks are 'Contended' with the screen memory.. this means that they will be slower than the other banks... to makes things worse, the contended banks are different on the +3 (and Black +2) to the spectrum 128 (and the grey+2)

Banks 0 and 2 are NEVER contended on any machine... so you should use these for your main code... and the other 'possibly contended' banks for sprite data and less used code.

If you were going to be super-clever, you could make your code detect the spectrum type, and use banks 1+3 for slow data on the spectrum 128, and 4+6 on the Spectrum+3
128K +3
Ram 0 Ram 0
Ram 1 Ram 1
Ram 3 Ram 3
Ram 4 Ram 4
Ram 6 Ram 6


Rom and Ram banking
Rom and Ram banking are handled by two ports, &1FFD and &7FFD... because these ports do other things, we need to back up the other bits when we change them... for this purpose the system keeps a backup of the current state of these ports in memory


Port  7  6  5  4  3  2  1  0 Bit meanings Backup
&7FFD  - - I R S M M M M= ram bits  S=Screen page bit    R=Rom Low bit    I=I/O Disabling &5B5C
&1FFD  - - - S D R - P P = paging mode 0=normal    R=Rom high bit   D = Disk Motor   S=Printer strobe &5B67

To select a bank of RAM at &C000, all we do is set bits 0-2 of &7FFD to a value 0-7... this will page the respective bank in at &C000
Rom Banking is possible by setting bit 2 of &1FFD and 4 of &7FFD... these bits make a number 0-4 which is the rom bank at &0000

The "Screen Page Bit' (bit 3 of &7FFD) allows us to to use an alternate screen buffer in Ram Bank 7 at &C000...
However, there's a problem... this can't be done on 58k machines... if you want to have a second screen buffer on 48k, you'll have to copy the screen from your buffer to &4000 with an LDIR, or some other copy command- there is NO BETTER way on a 48k!

+3 Banking
This is only possible on a black +2 or +3 spectrum...setting bit 0 of &1FFD to 1 turns on this mode, and the other bits purpose changes accordingly


Port  7  6  5  4  3  2  1  0 Bit meanings Backup
&1FFD  - - - S D O O P P = paging mode 1=+3 model  O=Bank Option   D = Disk Motor   S=Printer strobe &5B67

There are 4 possible bank combinations, shown in the chart below:
Bank Option 0
Option 1
Option 2
Option 3
&C000 Ram 3
Screen 2 (7)
Ram 3
Ram 3
&8000 Ram 2
Ram 6
Ram 6
Ram 6
&4000 Ram 1
Screen 1 (5)
Screen 1 (5)
Screen 2 (7)
&0000 Ram 0
Ram 4
Ram 4
Ram 4

Putting it to use!
Lets learn how to bankswitch, and test the systems to see if we're on a 48k, 128k or +3 (or black +2)...
Note, the Easiest way to detect different spectrums would to be look at the ROM, read in a known location, and see if it's bytes match what we expect...
However some machines use non-standard ROM, so this is not advised - but it may be enough if you're not too worried about compatibility!

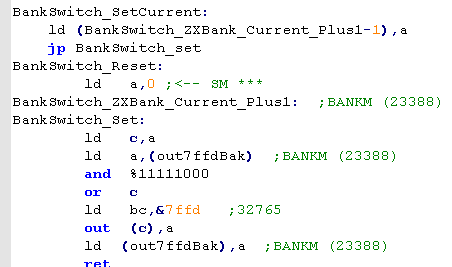

We're going to create a command called Bankswitch_SetCurrent.. this will set a permanent bankswitch...

We can also use Bankswitch_Set... this will temporarily set a bank... and Bankswitch_Reset will undo it!

These were taken from the ChibiAkumas game!
We're going to test  to see if we have 128k banks!

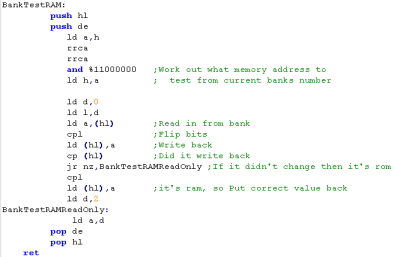

We do this by writing a marker, changing to an alternative bank... then altering the address we wrote the marker to...

When we swap back to the original bank, we should see the marker, if we do not, then the bankswitch did not work, and we must only have 48k
We're going to do pretty much the same thing with the +3... however there are some problems!

The backups of the &7FFD and &1FFD registers, and the stack are in the &5000 range... we're going to have to use 'Option 0'... as our program code is in Ram Bank 2 we need that not to move, but we will need to back up &5B5C and &5B67 into D and E before we try to turn on the +3 bank... we'll also need to avoid using the stack.

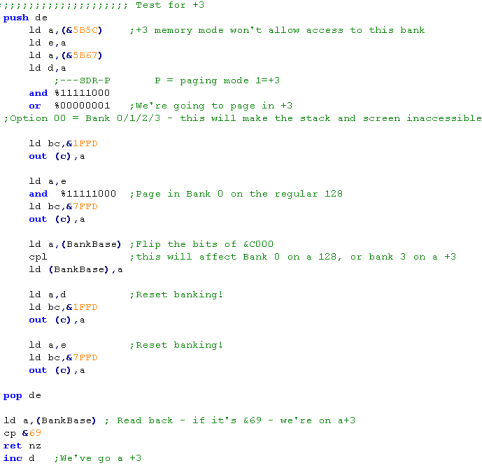

Again, we write our marker

Then we apply the +3 switch... flip the bits at the address of the marker data, and turn it off!

if the marker is still there, we have a +3... if not, we have a 128k machine.
Don't try to detect a +3 until you've detected 128k... it won't work!

Also note we're paging in bank 0 AFTER turning on +3 mode... turning +3 on caused a bank swap on the 128k for some reason!
Note, this detection code was written for these tutorials... ChibiAkumas required 128k, and did not work differently on +3 (except the disk routines.. and these were a different build of the game)

Use the code above at your own risk! it seems to work, but hasn't had much testing!

Lesson P27 - Bankswitching and hardware detection on the Enterprise
The Enterprise is a strange beast!  it was an utter commercial failure, but it's OS and memory mapping is superior to the MSX!
Lets take a look at the impressive capabilities of the Elan machine!

The Enterprise and it's OS supports up to 256x 16k banks for an insane 4MB of memory (though some may be rom!)
The most basic system supports 64k, but there is also a 128k version (the EP128)...
There are two special segments... the Zero Segment containing the RST's, and our program, (loaded at &0000) and the system segment (loaded at &8000 by default)... around 2/3rds of the system bank will be used by the OS... the rest will be free.

it's important to notice, ONLY memory banks in the base 64k can be used for video memory.
We can use the Zero page bank if we want... but we must 'request' ALL other banks from the OS before using them... it will find one, and tell us what it's allocated - if all the banks are used, it will give us the spare memory of the system page,

The diagram to the right, shows how the OS allocates memory on these two systems.
Essentially the internal memory has bank numbers 255-252 (FF-FC)... as we add more memory, we will get lower and lower numbered banks... for example a 256k system will have banks down to 240 (F0)

The top bank (255) is used as the system segment... the bottom bank (number will depend on upgrades) will be the Zero page...

The system will allocate banks in consecutive order... so we won't use the internal 64k until we have no choice... this means we can be sure to have it available for Vram!

Low numbers (for example banks 0-4) will be rom.
64k System   128k System
FC (Zero) F8 (Zero)
FF (Sys) FB

FF (Sys)
64k Bank (Can be Vram)
Extended bank (Cannot be vram)

Asking for memory... and giving it back to the OS!
We can ask the OS for memory, and then use it for whatever we want... if we don't need it any more, we can tell the OS to take it back!

This is how we get a free VRAM bank... we ask for memory banks, until we get one >=FC (a 64k internal bank)... This may take a while, as the OS gives us the low numbered banks first... but once we get one, we can just free up all the ones we didn't really want!

We use RST 6 to do an EXOS call... and command 24 to request a segment, and 25 to give it back!

Lets look at the details of these two commands:

EXOS Function 24 - Allocate Segment
This command will request another 16k segment...  status reg will be Zero if succeeded, NZ if another full 16k is not available
If succeeded the segment number will be returned in C... if only a shared segment was available, the boundary will be in DE
Parameters:    none
Returns:  A=status    C=segment number    DE=EXOS boundary within this segment (if returned is a shared segment, otherwise &4000)

EXOS Function 25 - Free Segment
This command will free a 16K segment of RAM. The segment must have been allocated via EXOS function 24.
Parameters:  C=segment number
Returns:  A=status

If we don't need the OS, we can just use the memory ourselves without asking...
But if we want it to do Disk reading or other things for us, we need to play nice!
It all depends on how you plan to use the system, and how worried you are about compatibility.

Using our Segments!

Remember how limited our bank swapping options were on the CPC and Speccy?
Remember how we wished we had a memory mapper on all MSX2?
Well, the Enterprise really delivers on this front!
Just like the other systems, the memory map is split into 16k banks... But any 16k segment can be mapped into any one these banks... you can even have the same segment in two banks!

So far as I've seen, the memory mapping ability of the Enterprise is second to none in the Z80 range... even the Sam Coupe is heavily limited in comparison!
Each chunk of memory uses a different port... and we just OUT the segment number to that port to change the active segment in that memory range...

For example, if we want to set &C000-&FFFF to segment &F3 we just do...
     ld a,&F3
     out (&B3),a
it couldn't be easier!
 Address  Port
&0000 &B0
&4000 &B1
&8000 &B2
&C000 &B3
ChibiAkumas for the enterprise 'faked' the CPC bank swapping, only paging the extra ram into &4000...
The Enterprise's Screen and Ram compatibility with the CPC made Porting ChibiAkumas to the EP128 easy!
Even the sprites were the same!... It would have been harder if the game used Mode 0, however, because the last 8 colors are more limited in Enterprise 16 color mode.

Detecting our system...64k, 128k or 256k

In our tutorials, we've already taken 1 segment for the &8000 range, one for the VRAM, and the system will use two for the Zero and System segments...

That means we should be able to request 4 full banks on a 128k machine, or 12 on a 256k machine... on a 64k machine we'll be able to get no full banks (just the partial segment)

We'll keep requesting banks until the OS says NO, and we'll know how much ram the system has.

If we want we can then keep all the banks we requested, or we can free them back to the operating system.

Setting the 'DontFreeMemory' symbol will stop this example giving the memory back to the OS, but it doesn't store it anywhere... you'd probably want to add an extra command to do that!... if we don't we'll have to 'guess' what banks were free!
In theory, on a 128k machine, banks &F9-&FE will be free for our use (and &FC will have been allocated to our screen)... but who knows,  maybe the user has some weird upgrade ROM that's using one... you've just got to ask yourself... 'do I feel lucky?'

Lesson P28 - Bankswitching and hardware detection on the Sam Coupe
The Sam Coupe has an incredible spec for a 8-bit system, with a MINIMUM of 256k, and many machines having a whopping 512k... the SAM is a memory monster!
Unfortunately.... it doesn't have as flexible memory mapping as the Enterprise... lets find out why!

Bankswitching theory on the Sam Coupe
Controling bank switching on the SAM is done with two ports, one controls the first 32k of the memory map, the other controls the second 32k, there's also a port that controls the bank pair that controls the visible screen (the screen uses 24k so two banks)

The SAM splits its 256/512k into 16k chunks, with the first bank is 0...

Port Name Description Bits Bit Meaning
&FA - 250 LMPR Low Memory Page Register WHLBBBBB    B=Bank &0000-&7FFF... L=Low rom off (1=off)... H=High rom on (1=on)� W=Write protect &0000-&3FFF
&FB - 251 HMPR High Memory Page Register MCCBBBBB B=Bank &8000-&FFFF... C=mode 3 color lookup... M=use external memory expansion
&FC - 252 VMPR Video Memory Page Register OMMBBBBB B=Video Bank... M=Mode... O=midi Io

You'll notice we only have two bank switching ports... this is because we switch the memory range in 32k chunks!
even though memory banks are split in 16k.... if we set port 250 to use bank 0... then the memory range &0000-&3FFF will point to bank 0... but the next bank (&4000-&7FFF) will use the following bank - bank 1!... The fact we have to work in 32k chunks makes bank switching on the SAM rather limited compared to other systems where we work in 16k chunks

Also notice bit 7 of port 251... this allows us to access external memory upgrades in the range &8000-&FFFF for many megabytes of memory - we won't be cover them in these tutorials!

Page Addr Example
&0000 (&250) 0
&4000 (&250)+1 1
&8000 (&251) 10
&C000 (&251)+1 11

Because we need to swap banks in 32k chunks it makes it harder to uses memory efficiently on the SAM... if we page in the screen into one bank, and our sprites into the other... we have nowhere left for our code!

We will have to work out another way to organize our memory... for example storing a copy of our sprite handling code in the spare memory of the screen bank (the screen uses 24k of the 32k bank)
Making use of Sam Coupe bank swapping
We're going to define some commands for setting the lower ram bank (&0000-&7FFF)... this is because our code is in the other bank at &8000!

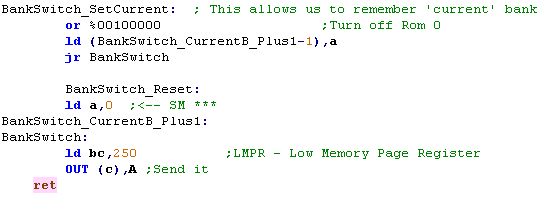

We'll use SetCurrent to set the bank - and we'll create Reset command to restore the bank we set with SetCurrent... we need this for a good reason!

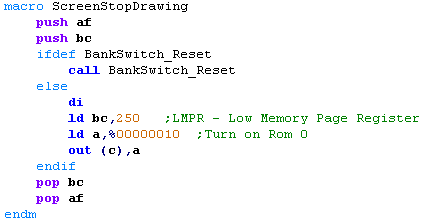

Our program code is in the &8000 range... and because we need to page in the 24k screen... we have to do this at the &0000-&7FFF range... but we're also going to use this for our extra ram.

We're going to have to modify our bitmap code, to use the reset command to restore whatever bank we asked for with SetCurrent rather than turn the ROM back on.
To test if we've got 512k of memory, we'll use the same procedure as before... bank 31 is the top bank in the 512k range - we'll try to page it in and write to it...

If the write occurs in our current bank, then we don't have 512k.

Lesson P29 - Hardware detection and Bank Switching on the Gameboy/GBC and Sega Mastersystem/GameGear
It's time to move onto the consoles, lets see how we can detect the platform we're on, and how to use extra ROM banking on those systems

Bank Switching and hardware detection on the Gameboy and GBC
One way to detect the GBC is to check the A register on startup...On a GBC,  A=&11... however we'll actually detect the GBC using RAM bankswitching to do a really thorough job!... We'll also learn how to page in the GBC extra ram bank, and how to turn on 8mhz "Turbo" mode on the GBC!

We're going to need a few hardware registers for today's lesson!

Section Addr Name Bits Bit Meaning
Joy FF00 P1/JOYP - Joypad (R/W) --BD3210 B=Buttons D=Direction 3210=buttons DULR SSBA
CPU FF4D KEY1 - CGB Mode Only - Prepare Speed Switch C------P C=Current speed P=prepare switch
RAM FF70 SVBK - CGB Mode Only - WRAM Bank (bits 0-2 =0-7)

INT FFFF IE - Interrupt Enable (R/W) ---JSTLV J=Joypad S=Serial T=Timer L=Lcd stat V=vblank

Banking in the extra GBC ram is super easy!
we just write a number from 1-7 to memory address &FF70... the bank will be paged in to memory address &D000-DFFF
Note if you try to page in "Bank 0" you will get "Bank 1"... there is no bank 0!
ROM banking is also easy, we just need to write a value to &2000, this will page a rom bank number into area &4000-&7FFF

Note, we also write a 0 to address &6000 - this is to tell the hardware our banker is an ALL ROM banker - and has no RAM
Gameboy cartridges can also have 32k of extra RAM! This will appear in the area &A000-&BFFF as 4x 8k pageable banks! Just like the ROM, it's very easy to use...

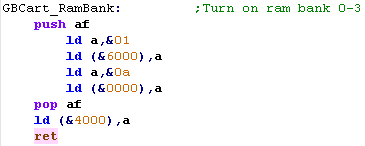

first we write 1 to address &6000 to tell the system we have RAM

Then we enable the RAM bank by writing &0A to &0000 - we turn it off by writing &0 to &0000

Finally, we can select the bank number (0-3) by writing to &4000

The Rambank will be available between &A000-&BFFF
Make sure you turn of cartridge RAM when you're not using it... if the player is mean, they may turn off the gameboy at a strange time... and the battery backed up ram could get corrupted >:(
Turbo mode!
Turning on 8mhz mode of the Gameboy Color is also pretty easy...

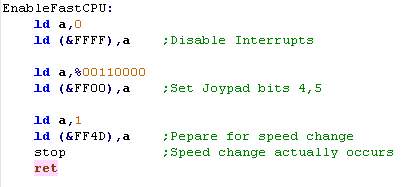

First we have to disable interrupts by writing 0 to &FFFF, then we have to set bits 4,5 of the Joystick line (not sure why... but we do!) at address &FF00

Then we make a 'Prepare speed change' request to port &FF4D

Finally we need to STOP the processor... when it restarts we will be in 8mhz mode!
Trying to turn the fast cpu on on a Gameboy seems to have no effect.... but probably isn't a good idea... so detect the hardware first, and don't do it on a regular GB!

Bank Switching on the Sega Mastersystem and GameGear
We're not going to try to detect if we're running on the SMS or Gamegear - as there is no real purpose... we're building for the two systems separately, so any hardware differentiation should be done with conditional compilation (IFDEF statements)

We can, however use extra cartridge ROM, and up to 32k of extra RAM contained in the cartridge!
From Meaning
FFFC Ram Bank Swapper
FFFD Rom Bank &0000-&3FFF
FFFE Rom Bank &4000-&7FFF
FFFF Rom Bank &8000-&BFFF
Writing a value to addresses &FFFD-FFFF  of 0 or above will page that ROM bank into the appropriate address range.
Address &FFFC controls the extra 'in cartridge' ram bank... it has two banks of 16k ram... these can be paged in to the &8000-&BFFF range

It's SUPPOSED to be possible to bank the cartridge RAM into the shadow RAM are of the addressible range, by writing %00011100... however it doesn't seem to work!

It seems it may not actually be supported by the emulator, as if appears no commercial games actually use it.

Lesson P30 - Hardware Sprites on the gameboy
The Gameboy has 'Hardware sprites'... these are drawn by the graphics hardware, so are very fast, but are limited in size, and number.

The Theory of Sprites

Gameboy sprites are 8x8, or 8x16 and we can have up to 40...

8x16 mode can be turned on by setting Bit 2 of FF40... we also need to set Bit 1 of FF40 to turn sprites on at all!

Address 7 6 5 4 3 2 1 0 Meaning
FF40 L w W T M s S B   B= Background Display (CGB only)   S=Sprite Enable   s= sprite size (8x16)   M=tileMap address (0=9800-9BFF 1=9C000-9FFF)

  T=Tile Data (0=8800-97FF 1=8000-8FFF)  W= Window Enable   w=window tilemap (0=9800-9BFFF 1=9C000-9FFF)   L= Lcd enable

Sprite Data is stored from &FE00 onwards, it can ONLY be accessed during Vblank

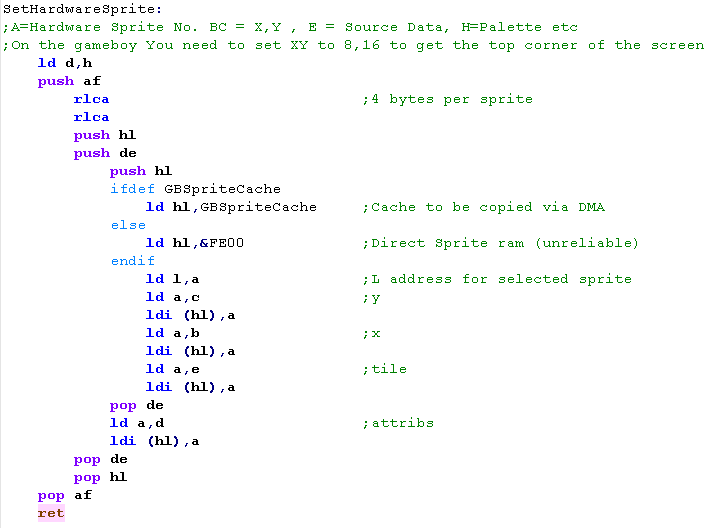

there are 40 sprites, and each definition uses 4 consecutive bytes...

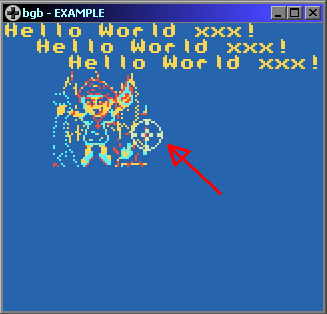

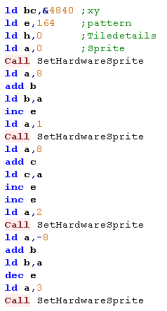

For Example, Sprite 0's bytes are highlighted in black... it has a Y co-ordinate, an X co-ordinate, a Tile Number, and tile Attributes

Y and X are offset, so you can have a sprite partially off the screen, You need to set XY to (8,16) to get the top corner of the screen (0,0)

the 'Sprite number' refers to a pattern within the tile definitions in memory area &8000-&8FFF - Sprites bitmap data is in the same format as the tilemap...

In 8x16 mode is enabled, then the tiles are used in pairs - the bottom bit is unused, and odd numbered tiles are ignored

7      6           5           4      3   2     1     0
Y-flip X-flip GB-Pal CGB-Vbank CGB-Palette

Bits 7-4 work on both GB and GBC

On the Gameboy, we can only use palette 1 or 0.... on the color gameboy we can use palette 0-7

Note: Color 0 is always transparent on sprites

Tile-Sprite prority allows us to put Sprites BEHIND the background...

You can't write to Sprite ram outside VBLANK - which is a total pain!

Fortrunately the Gameboy has a DMA (Direct Memory Access)... this is where the hardware automatically copies an area of normal ram into Sprite ram - it's automatic and super-fast... so it can copy a 'cache' of the sprite data to the real sprite ram in vblank!

Using DMA for Vblank!
Because we can only change sprites during Vblank, we need to set up a DMA interrupt to do the job for us.

We can turn on VBLANK by setting Bit 0 of &FFFF and Enabling interrupts with EI.... when Vblank occurs, a call will be made to memory address &0040 (64)

The gameboy DMA is desinged to copy sprites, we just write the High byte of the source address to &FF46 - the transfer will occur ... we need to wait a bit for it to finish...

HOWEVER.. during the DMA only the memory &FF80-&FFFE is accessible...

So we need to copy some code to &FF80 to run the dma, and Jump to &FF80 at address &0040

Finally we need to turn on the Vblank interrupt , and Enable Interrupts
Address of Cache and Vblank handler in High Ram (&FF80-FFFE)

Copy the interrupt handler to &FF80

Jump to interrupt handler at &0040

Enabling Vblank and interrupts:

The DMA execution routine we copy to &FF80

You can try to use a 'Wait command' before writing to the sprite memory instead of using DMA - but since you can't write to Vram out of Vblank it will be difficult

Setting the Sprite!
Now we have the Cache for the Sprite data, we can actually set up the sprites, we'll use a little routine to do this for us!

We'll pass the X,Y co-ordinates in BC ... the tile number of the pattern data for the sprite in E, and the attributes of the tile (color etc) in H... and the tile number in A

Because each sprite has 4 bytes - we need to multiply A by 4 - and add it to the starting address of the sprite data... then we set the other 4 bytes for the various attributes
We use this function to position 4 sprites onscreen, 8 pixels apart!
We've used 2x2 sprites (4 in total) to make a 'crosshair' 16x16 pixels.

Note: you can use AkuSprite Editor to create GB tiles - which are the same format as the sprite data.

Continue to Page 4
Back to Page 2


View Options
Default Dark
Simple (Hide this menu)
Print Mode (white background)

Top Menu
***Main Menu***
Youtube channel
Introduction to Assembly (Basics for absolute beginners)
Amazon Affiliate Link
AkuSprite Editor
Dec/Bin/Hex/Oct/Ascii Table

Alt Tech
Please note: I wlll upload more content to these alt platforms based on the views they bring in

Z80 Content
***Z80 Tutorial List***
Learn Z80 Assembly (2021)
Learn Z80 Assembly (old)
Hello World
Simple Samples
Advanced Series
Multiplatform Series
Platform Specific Series
ChibiAkumas Series
Grime Z80
Z80 Downloads
Z80 Cheatsheet
DevTools kit
Z80 Platforms
Amstrad CPC
Elan Enterprise
Gameboy & Gameboy Color
Master System & GameGear
Sam Coupe
ZX Spectrum
Spectrum NEXT
Camputers Lynx

6502 Content
***6502 Tutorial List***
Learn 6502 Assembly
Advanced Series
Platform Specific Series
Hello World Series
Simple Samples
Grime 6502
6502 Cheatsheet
DevTools kit
6502 Platforms
Apple IIe
Atari 800 and 5200
Atari Lynx
BBC Micro
Commodore 64
Commodore PET
Commander x16
Super Nintendo (SNES)
Nintendo NES / Famicom
PC Engine (Turbografx-16)
Vic 20

68000 Content
***68000 Tutorial List***
Learn 68000 Assembly
Hello World Series
Platform Specific Series
Simple Samples
Grime 68000
68000 Cheatsheet
DevTools kit
68000 Platforms
Amiga 500
Atari ST
Neo Geo
Sega Genesis / Mega Drive
Sinclair QL
X68000 (Sharp x68k)

8086 Content
Learn 8086 Assembly
Platform Specific Series
Hello World Series
Simple Samples
8086 Cheatsheet
DevTools kit
8086 Platforms

ARM Content
Learn ARM Assembly
Learn ARM Thumb Assembly
Platform Specific Series
Hello World
Simple Samples
ARM Downloads
ARM Cheatsheet
DevTools kit
ARM Platforms
Gameboy Advance
Nintendo DS
Risc Os

Risc-V Content
Learn Risc-V Assembly
Risc-V Downloads
Risc-V Cheatsheet
DevTools kit

MIPS Content
Learn Risc-V Assembly
Platform Specific Series
Hello World
Simple Samples
MIPS Downloads
MIPS Cheatsheet
DevTools kit
MIPS Platforms

PDP-11 Content
Learn PDP-11 Assembly
Platform Specific Series
Simple Samples
PDP-11 Downloads
PDP-11 Cheatsheet
DevTools kit
PDP-11 Platforms

TMS9900 Content
Learn TMS9900 Assembly
Platform Specific Series
Hello World
TMS9900 Downloads
TMS9900 Cheatsheet
DevTools kit
TMS9900 Platforms
Ti 99

6809 Content
Learn 6809 Assembly
Learn 6309 Assembly
Platform Specific Series
Hello World Series
Simple Samples
6809/6309 Cheatsheet
DevTools kit
6809 Platforms
Dragon 32/Tandy Coco
Fujitsu FM7
TRS-80 Coco 3

65816 Content
Learn 65816 Assembly
Hello World
Simple Samples
65816 Cheatsheet
DevTools kit
65816 Platforms

eZ80 Content
Learn eZ80 Assembly
Platform Specific Series
eZ80 Downloads
eZ80 Cheatsheet
DevTools kit
eZ80 Platforms
Ti84 PCE

IBM370 Content
Learn IBM370 Assembly
Simple Samples
IBM370 Downloads
IBM370 Cheatsheet
DevTools kit

Super-H Content
Learn SH2 Assembly
Hello World Series
Simple Samples
SH2 Downloads
SH2 Cheatsheet
DevTools kit
SH2 Platforms

PowerPC Content
Learn PowerPC Assembly
Hello World Series
Simple Samples
PowerPC Downloads
PowerPC Cheatsheet
DevTools kit
PowerPC Platforms

Work in Progress

Misc bits
Ruby programming

Buy my Assembly programming book
on Amazon in Print or Kindle!

Buy my Assembly programming book

Available worldwide!
Search 'ChibiAkumas' on
your local Amazon website!
Click here for more info!

Buy my Assembly programming book
on Amazon in Print or Kindle!

Buy my Assembly programming book

Available worldwide!
Search 'ChibiAkumas' on
your local Amazon website!
Click here for more info!

Buy my Assembly programming book
on Amazon in Print or Kindle!

Buy my Assembly programming book

Available worldwide!
Search 'ChibiAkumas' on
your local Amazon website!
Click here for more info!
